80-87 GM KIT,FRONT,FDL,12.19" DRILLED ROTORS,RED

80-87 GM KIT,FRONT,FDL,12.19" DRILLED ROTORS,RED

WIL 140-12297DR

$1,129.99
$1,129.99
View full details

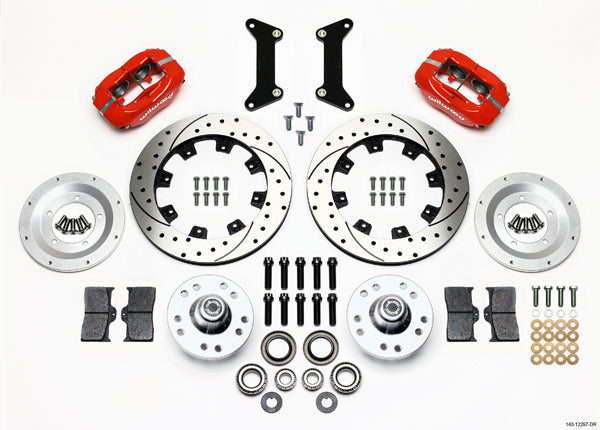

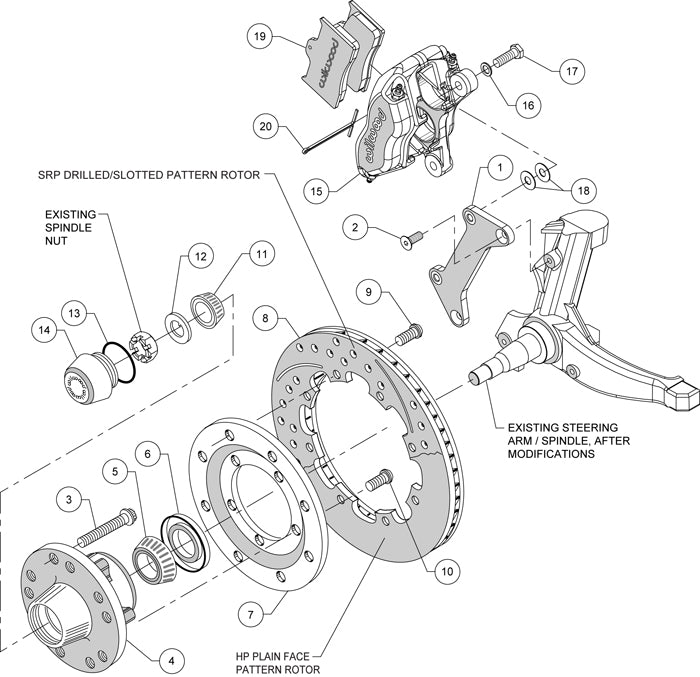

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PREMIUM BIG BRAKE FORGED DYNALITE BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT KIT FOR:
    CHEVROLET:
    -1979-1987 EL CAMINO*
    -1979-1987 MALIBU*
    -1979-1988 MONTE CARLO*
    -1983-1997 S10 BLAZER 4X2*
    -1982 S10 PICKUP*
    -1983-2002 S10 PICKUP 4X2*
    GMC:
    -1983-1997 S15 JIMMY 4X2*
    -1982 S15 PICKUP*
    -1983-2002 S15 PICKUP 4X2*
    -1979-1987 SPRINT*
    BUICK:
    -1979-1981 CENTURY*
    -1982-1987 GRAND NATIONAL*
    -1979-1987 REGAL*
    ISUZU:
    -1996-2000 HOMBRE 4X2*
    OLDSMOBILE:
    -1979-1981 CUTLASS*
    -1979-1983 CUTLASS CRUISER*
    -1982-1988 CUTLASS SUPREME RWD ONLY*
    PONTIAC:
    -1982-1987 BONNEVILLE*
    -1979-1980 GRAND AM*
    -1979-1987 GRAND PRIX*
    -1979-1983 LEMANS*

  • FEATURING DRILLED & SLOTTED ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • FDL BIG BRAKE FRONT HUB KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS
  • FORGED BILLET DYNALITE CALIPERS, 12.19" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET/STRIP MACHINES
  • THESE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS
  • MAKE SURE TO CHECK THE ASSEMBLY INSTRUCTION BOOKLET BELOW TO SEE ANY MODIFICATIONS THAT MIGHT BE NECESSARY FOR YOUR APPLICATION

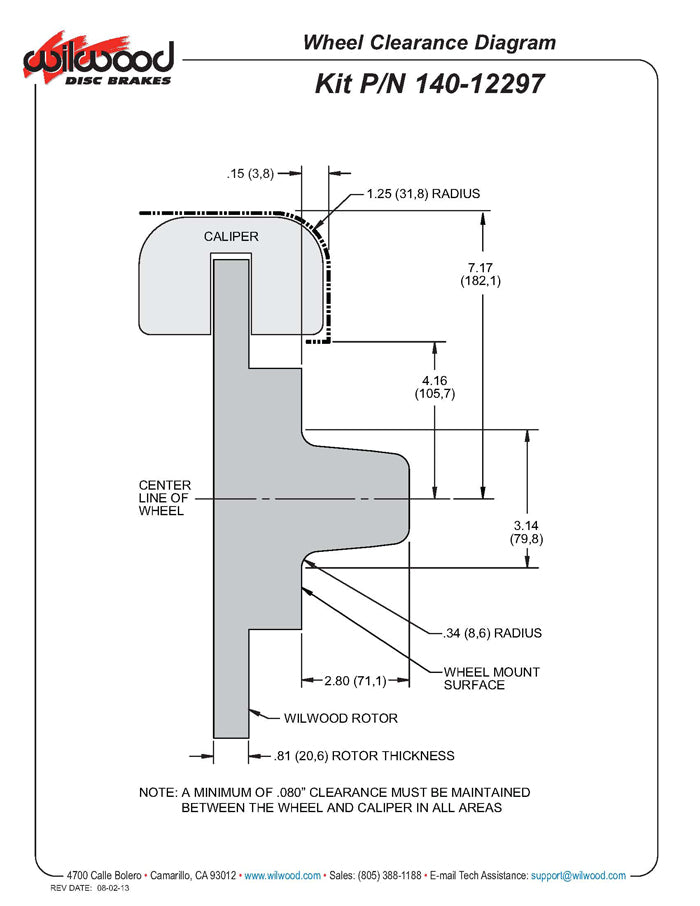

  • THESE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS

  • KIT INCLUDES:
    *DRILLED & SLOTTED, 0.81" THICK X 12.19" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *HUBS,
    *BEARINGS,
    *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 44 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Chevelle, Malibu, M/C, El Camino Front Kits, 1980-1987
