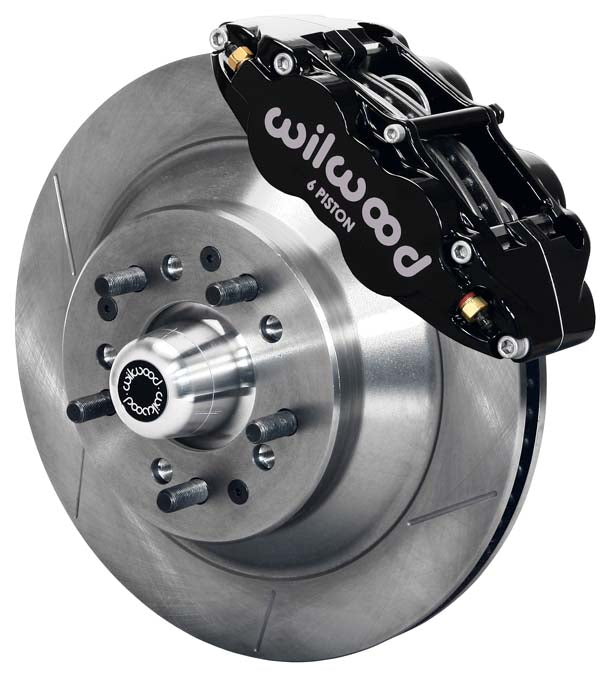

62-72 CDP B&E DRUM,1 PC,SL6R,12.90",BLACK

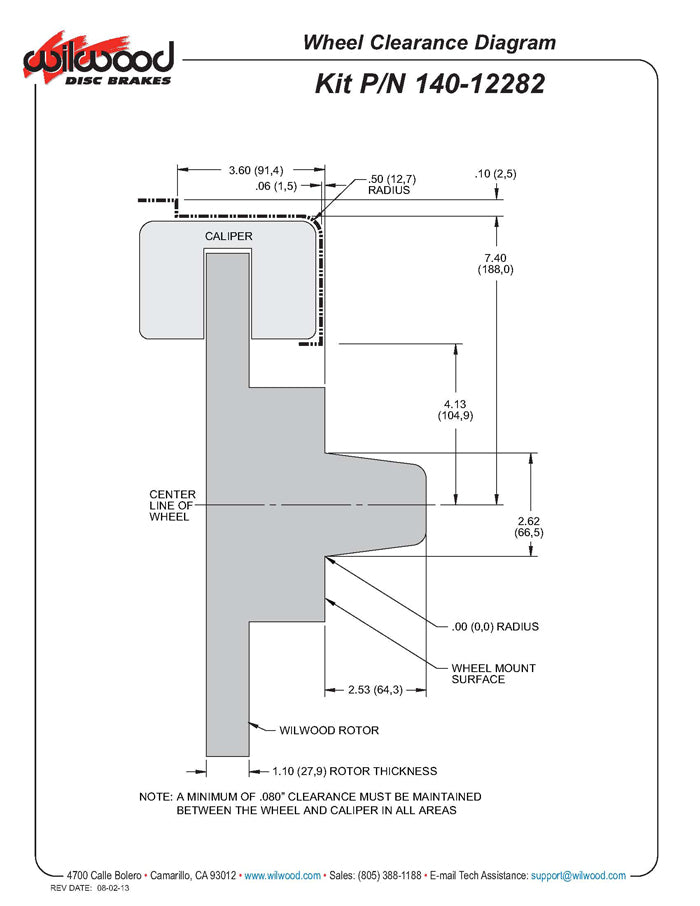

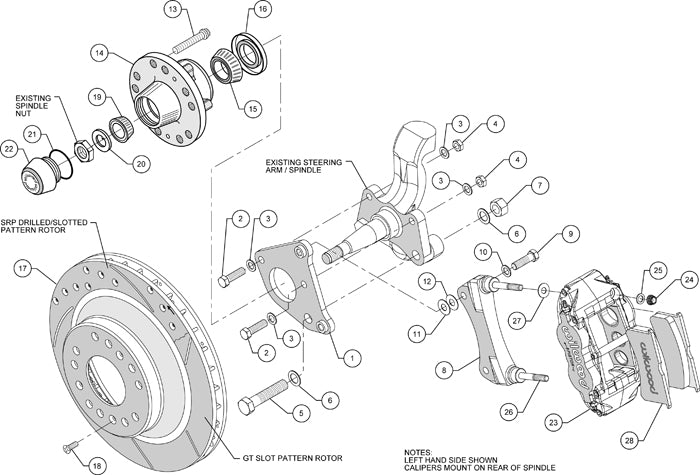

ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

WILWOOD PREMIUM BIG BRAKE BOLT-ON FRONT HUB & 12.90" 1-PIECE DISC BRAKE KIT FOR:

*DODGE:
-1963-1964 DODGE 330 WITH DRUM BRAKE SPINDLES
-1963-1964 DODGE 440 WITH DRUM BRAKE SPINDLES
-1962-1972 DODGE B-BODY WITH DRUM BRAKE SPINDLES
-1970-1972 DODGE CHALLENGER WITH DRUM BRAKE SPINDLES
-1966-1972 DODGE CHARGER WITH DRUM BRAKE SPINDLES
-1965-1972 DODGE CORONET WITH DRUM BRAKE SPINDLES
-1970-1972 DODGE E-BODY WITH DRUM BRAKE SPINDLES
-1962-1964 DODGE POLARA WITH DRUM BRAKE SPINDLES
-1962-1964 DODGE SAVOY WITH DRUM BRAKE SPINDLES
-1968-1971 DODGE SUPER BEE WITH DRUM BRAKE SPINDLES

*PLYMOUTH:
-1970-1972 PLYMOUTH BARRACUDA WITH DRUM BRAKE SPINDLES
-1962-1972 PLYMOUTH B-BODY WITH DRUM BRAKE SPINDLES
-1962-1970 PLYMOUTH BELVEDERE WITH DRUM BRAKE SPINDLES
-1970-1972 PLYMOUTH E-BODY WITH DRUM BRAKE SPINDLES
-1962-1964 PLYMOUTH FURY WITH DRUM BRAKE SPINDLES
-1967-1972 PLYMOUTH GTX WITH DRUM BRAKE SPINDLES
-1968-1972 PLYMOUTH ROAD RUNNER WITH DRUM BRAKE SPINDLES
-1965-1972 PLYMOUTH SATELLITE WITH DRUM BRAKE SPINDLES
-1962-1964 PLYMOUTH SAVOY WITH DRUM BRAKE SPINDLES

FEATURING STANDARD ROTORS AND BLACK CALIPERS

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS

FORGED NARROW SUPERLITE 6 PISTON CALIPERS WITH 12.90" DIAMETER, 1 PIECE ROTOR AND HATS KITS DELIVER THE COST EFFECTIVE COMBINATION FOR BRAKING POWER AND STYLE IN THIS GROUP OF KITS ENGINEERED FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS

BUILT EXCLUSIVELY FOR 17" AND LARGER WHEELS, FNSL6 KITS ENHANCE TIRE AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE DUAL-PURPOSE STREET AND TRACK MACHINES

THESE KITS ARE GUARANTEED TO CATCH THE EYE OF THE MOST DISCRIMINATING ENTHUSIAST WHILE PROVIDING OPTIMIZED BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION

THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS

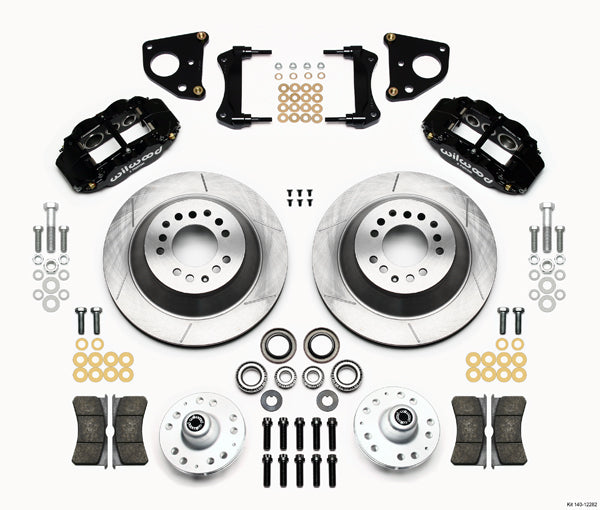

KIT INCLUDES:
*STANDARD, 1.10" THICK x 12.90" O.D. 1 PIECE ROTORS,
*FORGED NARROW SUPERLITE 6R RADIAL CALIPERS - BLACK,
*CALIPER MOUNTING BRACKETS,
*BP-10 SMART COMPOUND BRAKE PADS,
*BRAKE HUBS,
*BEARINGS, RACES, SEALS, BOLTS, WASHERS, DUST CAPS, &
*ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 60 LBS

YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
