74-80 PINTO KIT,FRONT,1PC,SL6R,13",DRILLED

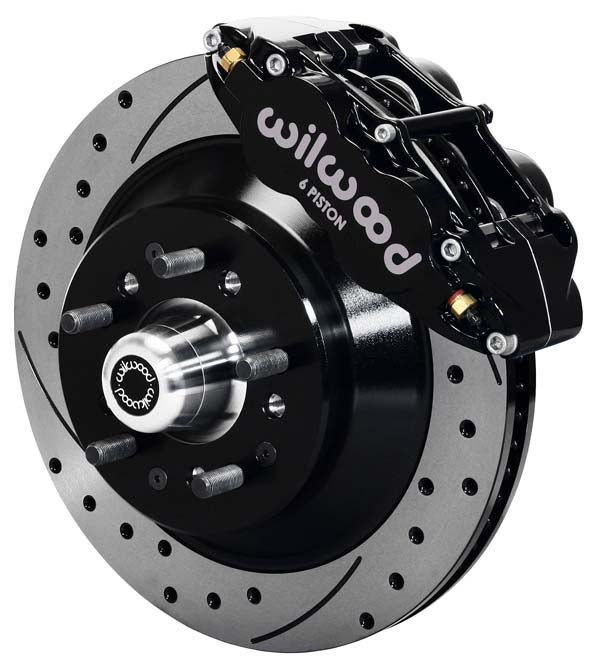

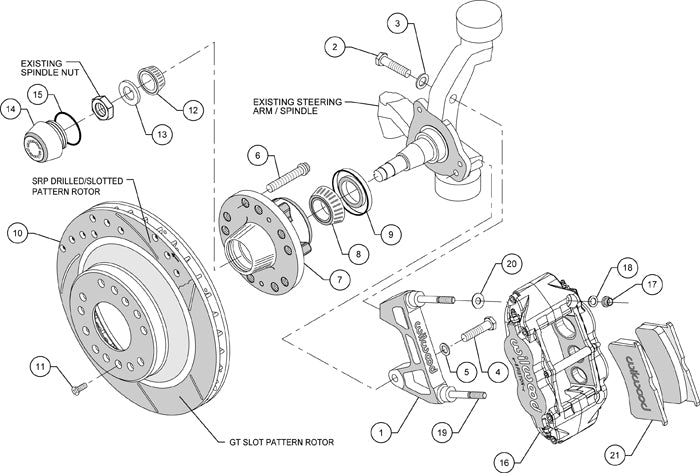

ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

WILWOOD PREMIUM BIG BRAKE BOLT-ON FRONT HUB & 12.90" 1-PIECE DISC BRAKE KIT FOR:

*FORD:
-1974-1978 MUSTANG II (5 LUG)
-1974-1980 PINTO (5 LUG)

*MERCURY:
-1975-1980 BOBCAT (5 LUG)

FEATURING DRILLED & SLOTTED ROTORS AND BLACK CALIPERS

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS

THE UNSURPASSED BRAKING CAPACITY OF THE SL6R FORGED BILLET 6-PISTON CALIPER SERVES AS THE BASE OF THESE BIG BRAKE KITS

THEY ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED. BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON SHOW CARS AND HIGH PERFORMANCE STREET/TRACK MACHINES

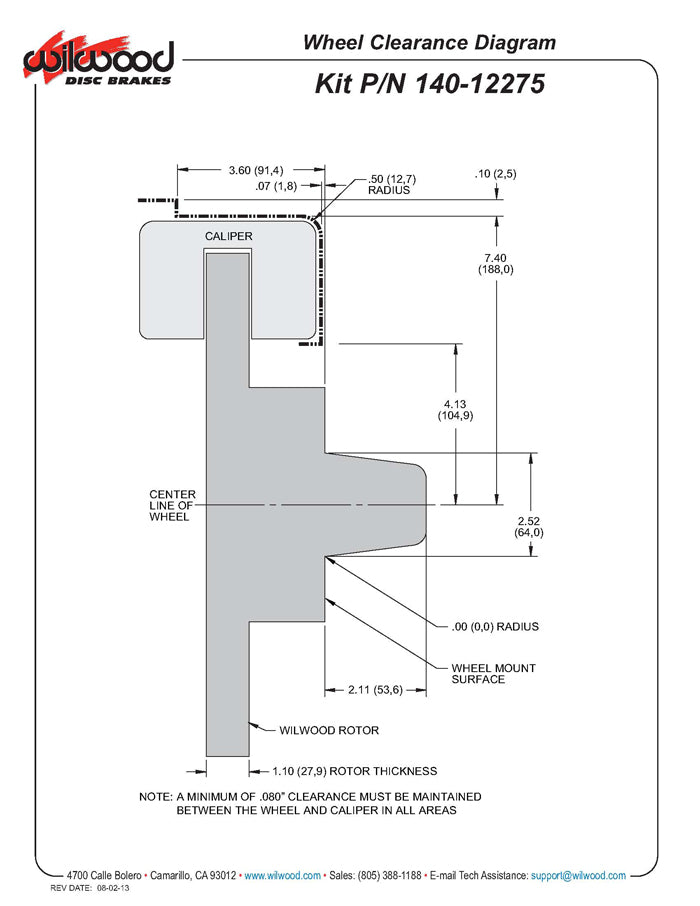

THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS

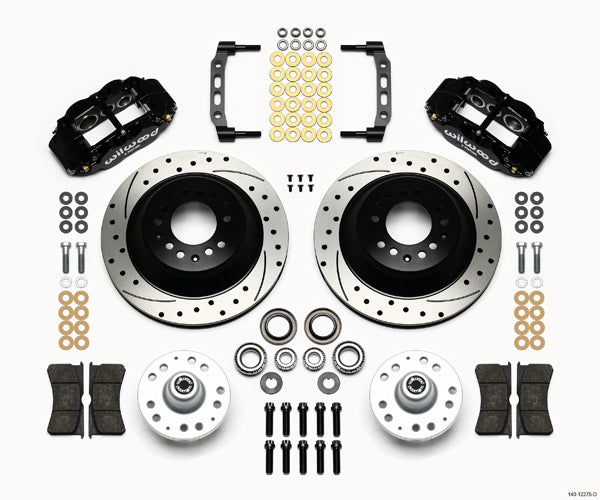

KIT INCLUDES:
*DRILLED & SLOTTED, 1.10" THICK x 12.90" O.D. 1 PIECE ROTORS,
*FORGED NARROW SUPERLITE 6R RADIAL CALIPERS - BLACK,
*CALIPER MOUNTING BRACKETS,
*BP-10 SMART COMPOUND BRAKE PADS,
*BRAKE HUBS,
*BEARINGS, RACES, SEALS, BOLTS, WASHERS, DUST CAPS, &
*ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 60 LBS

YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
