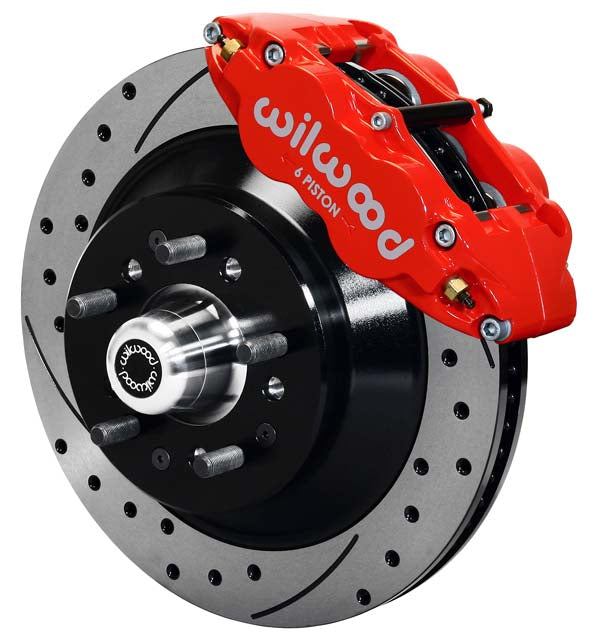

64-74 GM FRONT DISC BRAKE KIT,13" 1-PC. DRILLED ROTORS,6 PISTON SUPERLITE RED

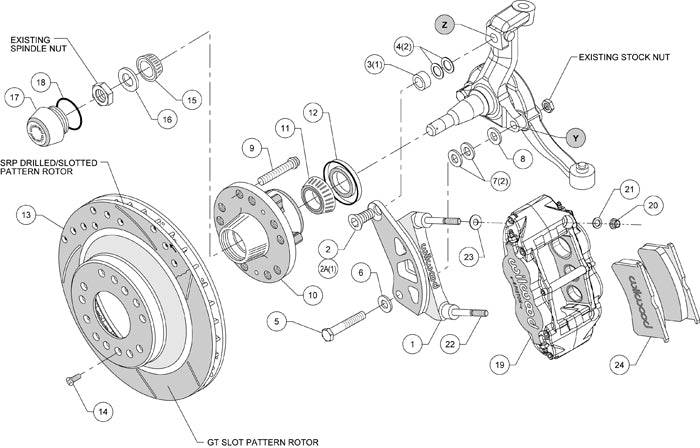

ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

WILWOOD PREMIUM BIG BRAKE BOLT-ON FRONT HUB & 12.90" 1-PIECE DISC BRAKE KIT FOR:

*CHEVROLET:
-1967-1969 CAMARO
-1964-1972 CHEVELLE
-1964-1972 EL CAMINO
-1970-1972 MONTE CARLO WITH DISC BRAKE SPINDLES
-1964-1974 CHEVY II
-1964-1974 NOVA

*GMC:
-1971-1972 SPRINT

*BUICK:
-1973-1974 APOLLO
-1965-1970 CENTURY
-1965-1972 GRAN SPORT
-1964-1972 SKYLARK
-1964-1972 SPECIAL
-1965-1972 SPORTSWAGON

*OLDSMOBILE:
-1964-1972 CUTLASS
-1968-1972 CUTLASS CRUISER
-1964-1972 VISTA CRUISER
-1967-1972 4-4-2
-1964-1972 F85
-1973-1974 OMEGA

*PONTIAC:
-1967-1969 FIREBIRD
-1964-1972 GTO
-1964-1972 LEMANS
-1964-1972 TEMPEST
-1969-1972 GRAND PRIX WITH DISC BRAKE SPINDLES
-1969 GRAND PRIX WITH DRUM BRAKE SPINDLES
-1971-1974 VENTURA II

FEATURING DRILLED & SLOTTED ROTORS AND RED CALIPERS

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS

THE UNSURPASSED BRAKING CAPACITY OF THE SL6R FORGED BILLET 6-PISTON CALIPER SERVES AS THE BASE OF THESE BIG BRAKE KITS

THEY ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED. BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON SHOW CARS AND HIGH PERFORMANCE STREET/TRACK MACHINES

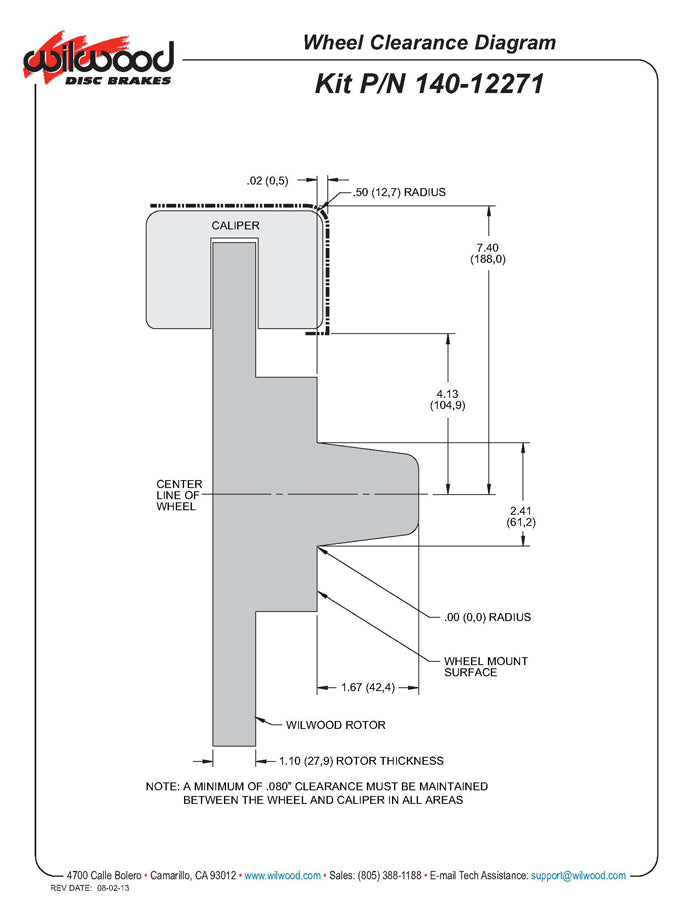

THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS

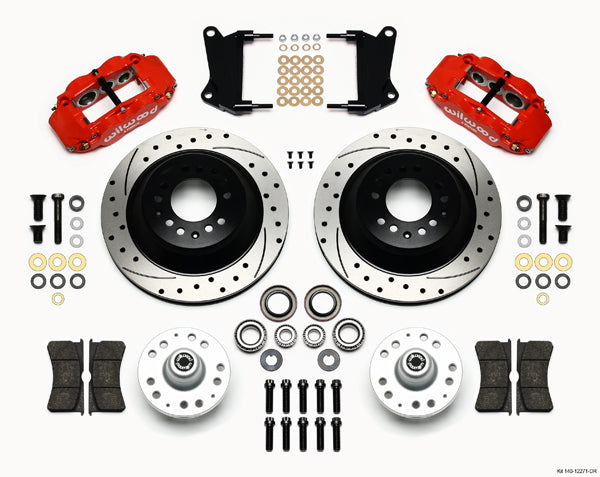

KIT INCLUDES:
*DRILLED & SLOTTED, 1.10" THICK x 12.90" O.D. 1 PIECE ROTORS,
*FORGED NARROW SUPERLITE 6R RADIAL CALIPERS - RED,
*CALIPER MOUNTING BRACKETS,
*BP-10 SMART COMPOUND BRAKE PADS,
*BRAKE HUBS,
*BEARINGS, RACES, SEALS, BOLTS, WASHERS, DUST CAPS, &
*ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 60 LBS

YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
