D-154 CALIPER & PAD SET,2P,FRONT,1.04,BK

D-154 CALIPER & PAD SET,2P,FRONT,1.04,BK

WIL 140-12099-B

$449.99
$449.99
View full details
  • BRAND NEW WILWOOD D-154 BRAKE CALIPER SET (PART #140-12099-BK) FOR BOTH FRONT WHEELS.

  • SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

  • FEATURES POWDER COATED BLACK CALIPERS.

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • WILWOODS D154 FRONT CALIPER KIT IS A DIRECT BOLT-ON 2 PISTON, LIGHTWEIGHT, HIGH-STRENGTH, EXTREME DUTY ALTERNATIVE TO THE OE CAST IRON "METRIC" CALIPERS THAT WERE USED ON A WIDE RANGE OF FACTORY DISC BRAKE EQUIPPED MID-SIZE GM CARS AND SMALL TRUCKS BEGINNING IN 1978. USE OF THIS CALIPER CAN STILL BE FOUND ON SOME GM MODELS AS LATE AS THE YEAR 2002. FORGED BILLET ALUMINUM BODIES, STAINLESS STEEL PISTONS, AND COMPETITION STYLE HIGH-TEMPERATURE SEALS PUT AN END TO THE RUST, BORE PITTING, AND SEAL FAILURES THAT PLAGUE THE OE CALIPER DESIGN. D154 CALIPERS PROVIDE LOW-MAINTENANCE PERFORMANCE AND A HUGE WEIGHT SAVINGS WITH HIGH TEMPERATURE RELIABILITY FOR THE STREET AND TRACK. D154 CALIPERS MOUNT IN THE STOCK LOCATION OVER STOCK ROTORS; USE THE ORIGINAL STYLE OE D154 BRAKE PADS AND AN OE M10MM X 1.5 BANJO BOLT BRAKE LINE MOUNTING. D154 CALIPERS CAN BE USED WITH MOST WHEELS THAT CLEAR THE OE CALIPERS. THE TWO 1.62" PISTONS IN EACH CALIPER PROVIDE 4.12 SQUARE INCHES OF PISTON AREA PER CALIPER. THE KIT CONTAINS WILWOODS HARDENED SLIDE PINS AND BP-10 HIGH FRICTION PADS.

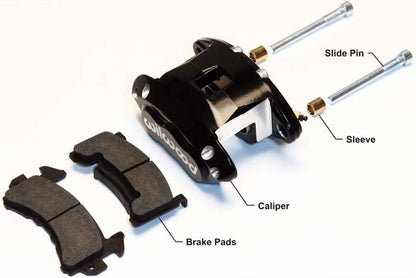

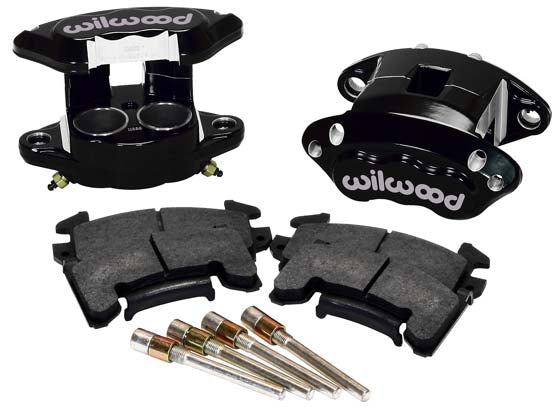

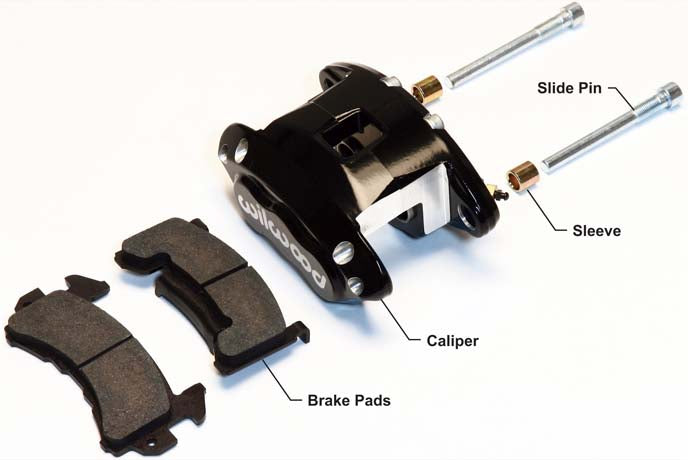

    KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:


    • D154 2-PISTON CALIPERS - BLACK
    • PISTONS ARE 1.62"
    • BP-10 SMART COMPOUND BRAKE PADS
    • CALIPER SLIDE PIN BOLTS WITH SLEEVES
    • COMPLETE KIT WEIGHS APPROXIMATELY 15 LBS.

    FITS:


      * THIS PARTICULAR KIT FITS 1.04" THICK ROTORS *

    BUICK:

      * 1978-1981 CENTURY
      * 1982-1987 GRAND NATIONAL
      * 1978-1987 REGAL
      * 1979-1985 RIVIERA

    CADILLAC:

      * 1979-1985 EL DORADO
      * 1980-1985 SEVILLE

    CHEVROLET:

      * 1982-1987 CAMARO
      * 1988-1992 CAMARO, WITH SPINDLES THAT WERE USED WITH OE SINGLE PISTON CALIPERS
      * 1978-1987 EL CAMINO
      * 1978-1987 MALIBU
      * 1978-1988 MONTE CARLO
      * 1983-1996 S10 BLAZER, ALL
      * 1997 S10 BLAZER, 4 X 2
      * 1997 S10 BLAZER, 4 X 4 WITH REAR DRUM BRAKES & WITHOUT AWD
      * 1982-1996 S10 PICKUP, ALL
      * 1997-2002 S10 PICKUP, 4 X 2 WITH REAR DRUM BRAKES
      * 1997 S10 PICKUP, 4 X 4 WITH REAR DRUM BRAKES & WITHOUT AWD
    GMC:
      * 1978-1987 SPRINT
      * 1991 SYCLONE
      * 1992-1993 TYPHOON
      * 1983-1996 S15 JIMMY, ALL
      * 1997 S15 JIMMY, 4 X 2
      * 1997 S15 JIMMY, 4 X 4 WITHOUT AWD
      * 1982-1996 S15 PICKUP, ALL
      * 1997-2002 S15 PICKUP, 4 X 2 WITH REAR DRUM BRAKES
      * 1997 S15 PICKUP, 4 X 4 WITHOUT AWD
    ISUZU:
      * 1996-2000 HOMBRE, 4 X 2
    OLDSMOBILE:
      * 1991-1996 BRAVADA
      * 1978 CUTLASS, WITH DISC BRAKE SPINDLES
      * 1979-1981 CUTLASS, ALL
      * 1978-1983 CUTLASS CRUISER, ALL
      * 1982-1988 CUTLASS SUPREME, REAR WHEEL DRIVE ONLY
      * 1979-1985 TORNADO
      * 1978 VISTA CRUISER, WITH DISC BRAKE SPINDLES
    PONTIAC:
      * 1982-1987 BONNEVILLE
      * 1978-1980 GRAND AM
      * 1978-1987 GRAND PRIX
      * 1978-1980 LEMANS
      * 1981-1983 LEMANS (CANADA)
      * 1982-1987 FIREBIRD
      * 1988-1992 FIREBIRD, WITH SPINDLES THAT WERE USED WITH OE SINGLE PISTON CALIPERS

  • YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
    • Brake Calipers > GM Metric > Wilwood Aluminum Caliper Sets, Front
