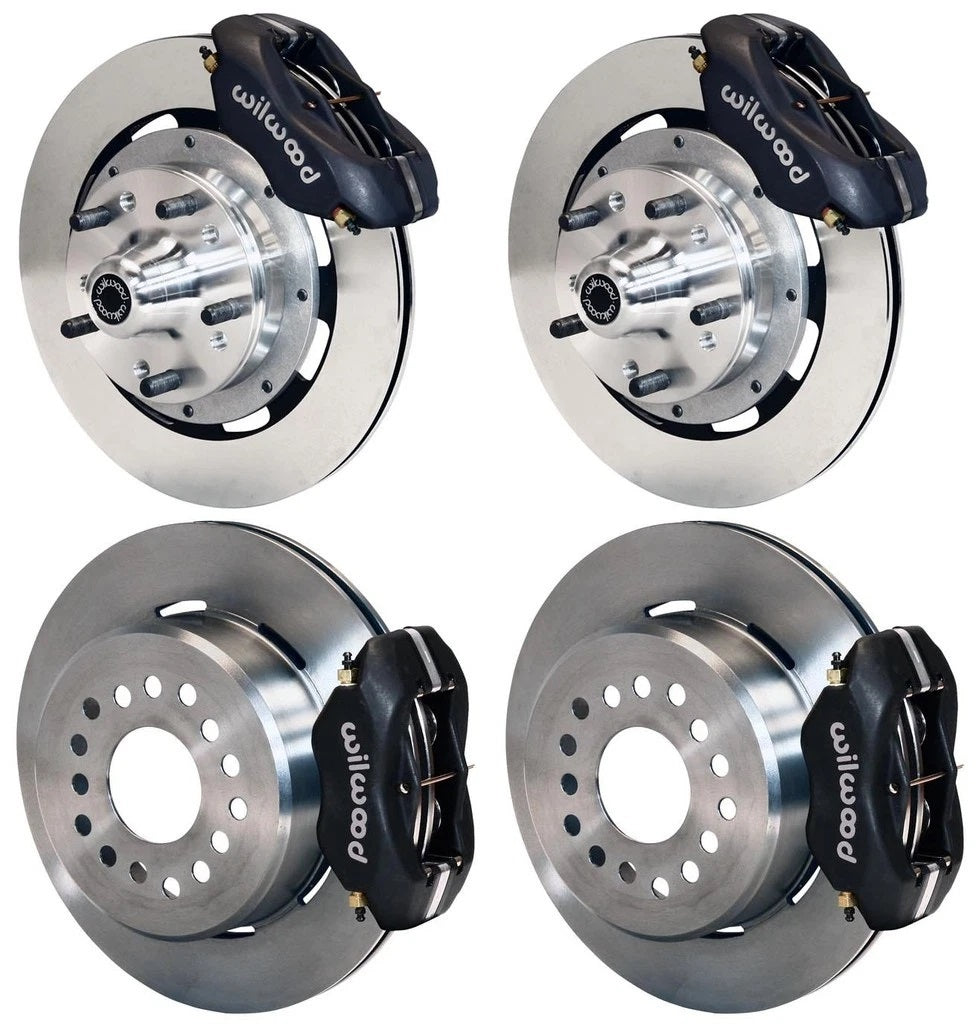

65-68 IMPALA FULL DISC BRAKE KIT,12" ROTORS,BLACK CALIPERS

Brand New Wilwood Complete Big Brake Front & Rear 12.19" Disc Brake Kit.

Complete Kit Includes:

• Billet Dynapro 6 Piston, Bolt-On Front Hub & 12.19" Disc Brake Kit (Part #140-12022-DP6) for Both Front Wheels
• Forged Dynalite 4 Piston, Bolt-On Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-10094) for Both Rear Wheels

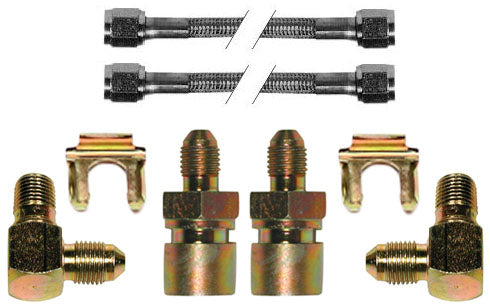

• Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Features Dynapro 6 Piston Calipers on the Front and Dynalite 4 Piston Calipers on the Rear. This is a custom kit that originally comes with Dynalite 4 piston calipers on the front as well. We've removed those front calipers & corresponding pads, and replaced them with Dynapro 6 calipers & pads to give even more front braking.

Fits:

• Chevrolet:
  • 1965 Impala**
  • 1966-1968 Impala with OE Drum Brake Spindles on the Front**
• **The rear kit fits rear ends with the "CHEVY C10" Axle Flanges and a 2.42" Axle Flange Offset (see diagrams below).  Approximately 90% of all these applications will have those particular axle flanges with that offset.  However, it is always better to measure your Axle Flange and Axle Flange Offset to be sure your vehicle has them.**

For the Front, DP6 Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars. These versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. These kits can be used with either manual or power boost master cylinders.

For the Rear, FDL Pro Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite 4-Piston calipers, 12.19" o.d. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These Brake kits require at least 16" diameter wheels.

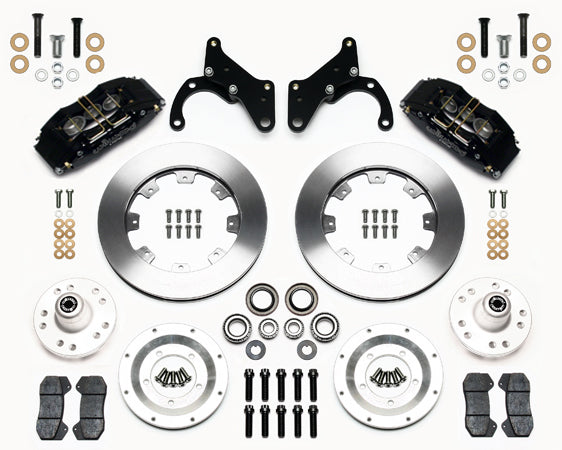

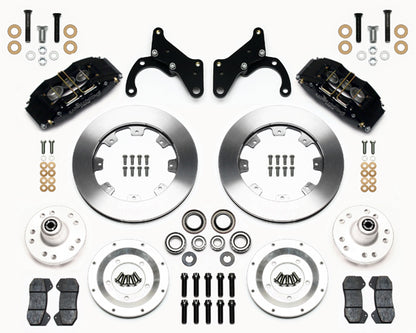

Front kit includes parts for both front wheels:

• 1.10" Thick x 12.19" O.D. Rotors
• Billet Dynapro 6 Piston Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hubs, Bearings, Seals, &
• All Hardware necessary to install the complete braking system on both front wheels

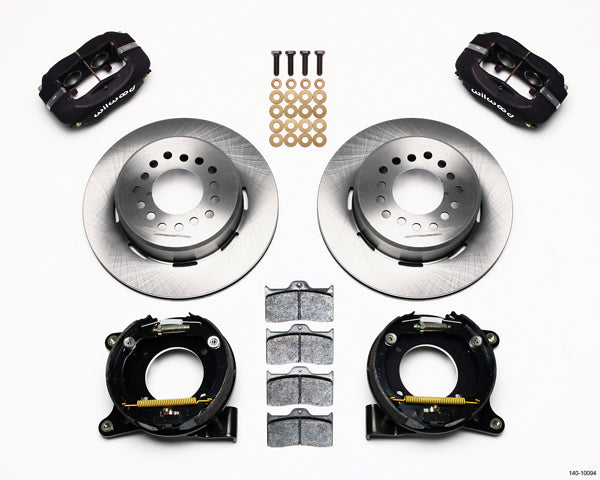

Rear kit includes parts for both rear wheels:

• .810" Thick x 12.19" O.D. Rotors with Hats
• Forged Dynalite 4 Piston Calipers - Black
• Drum Parking Brake Assemblies with Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 93 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
