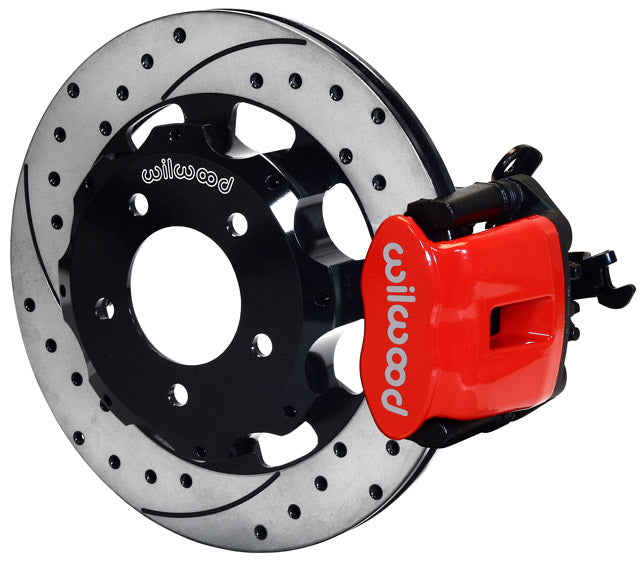

06-12 HONDA CIVIC CR-Z,REAR PB,12" DRILLED ROTORS,RED

06-12 HONDA CIVIC CR-Z,REAR PB,12" DRILLED ROTORS,RED

WIL 140-11979DR

$1,089.99
$1,089.99
View full details

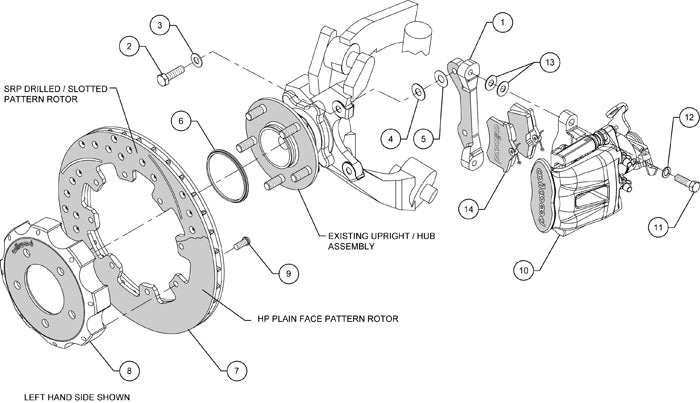

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PREMIUM COMBINATION PARKING BRAKE (CPB) CALIPER BIG BRAKE BOLT-ON REAR HAT & 12.19" REAR BRAKE KIT FOR:
    HONDA:

    CIVIC COUPE:
    -2006-2012 COUPE 2.0L (DOHC) SI*
    CIVIC SEDAN:
    -1988 ALL*
    -2007-2012 SEDAN 2.0L (DOHC) SI*

  • FEATURING DRILLED & SLOTTED ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • COMBINATION HYDRO-MECHANICAL PARKING BRAKE CALIPERS USE HYDRAULIC PRESSURE FROM THE MASTER CYLINDER FOR STOPPING POWER, AND AN INTERNAL MECHANICAL LOCK WITHIN THE CALIPER FOR A PARKING BRAKE
  • CPB KITS ARE BUILT FOR APPLICATIONS THAT ARE NOT WELL SUITED FOR INTERNAL SHOE STYLE PARKING BRAKES
  • THE CALIPERS ARE COUPLED WITH OVERSIZED TWO-PIECE ROTOR ASSEMBLIES WITH ALUMINUM HATS AND HIGH FRICTION BP-10 COMPOUND PADS
  • CPB KITS PROVIDE THE CORRECT BALANCED BRAKE PERFORMANCE AND MATCHING STYLE TO COMPLIMENT FRONT BIG BRAKE UPGRADE KITS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE

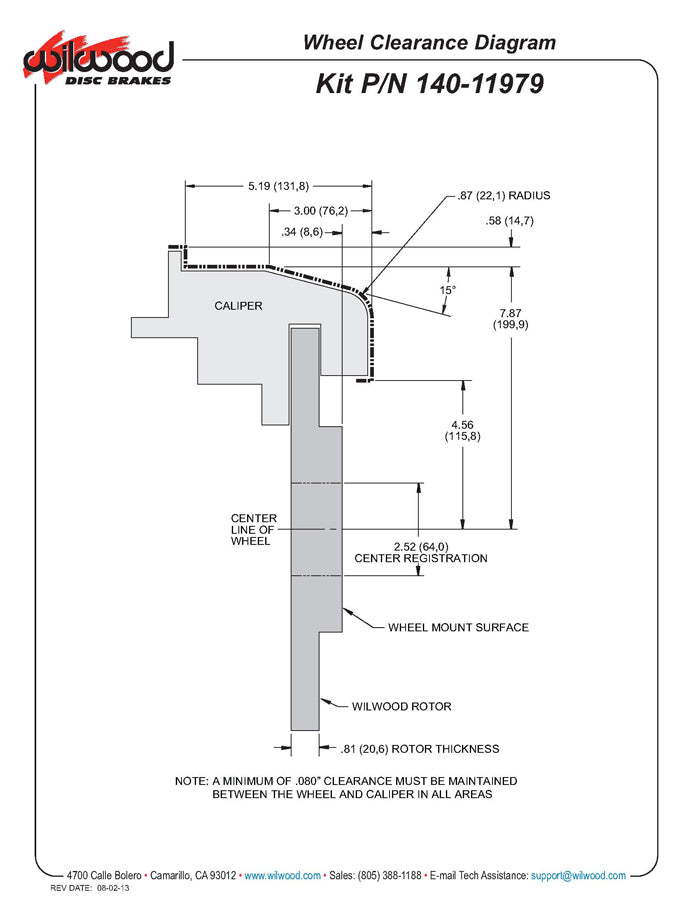

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 17" WHEELS

  • KIT INCLUDES:
    *DRILLED & SLOTTED, .810" THICK X 12.19" O.D. ROTORS,
    *COMBINATION PARKING BRAKE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 42 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Honda Kits > Civic Rear Kits, 2006-2012
