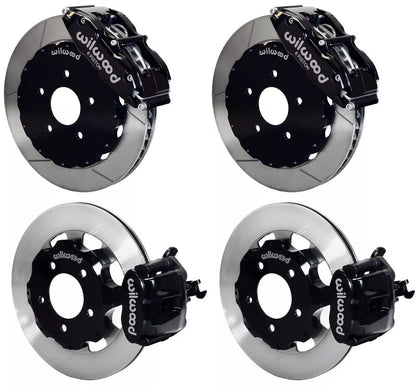

06-12 CIVIC FULL DISC BRAKE KIT,13/12" ROTORS,BLACK CALIPERS

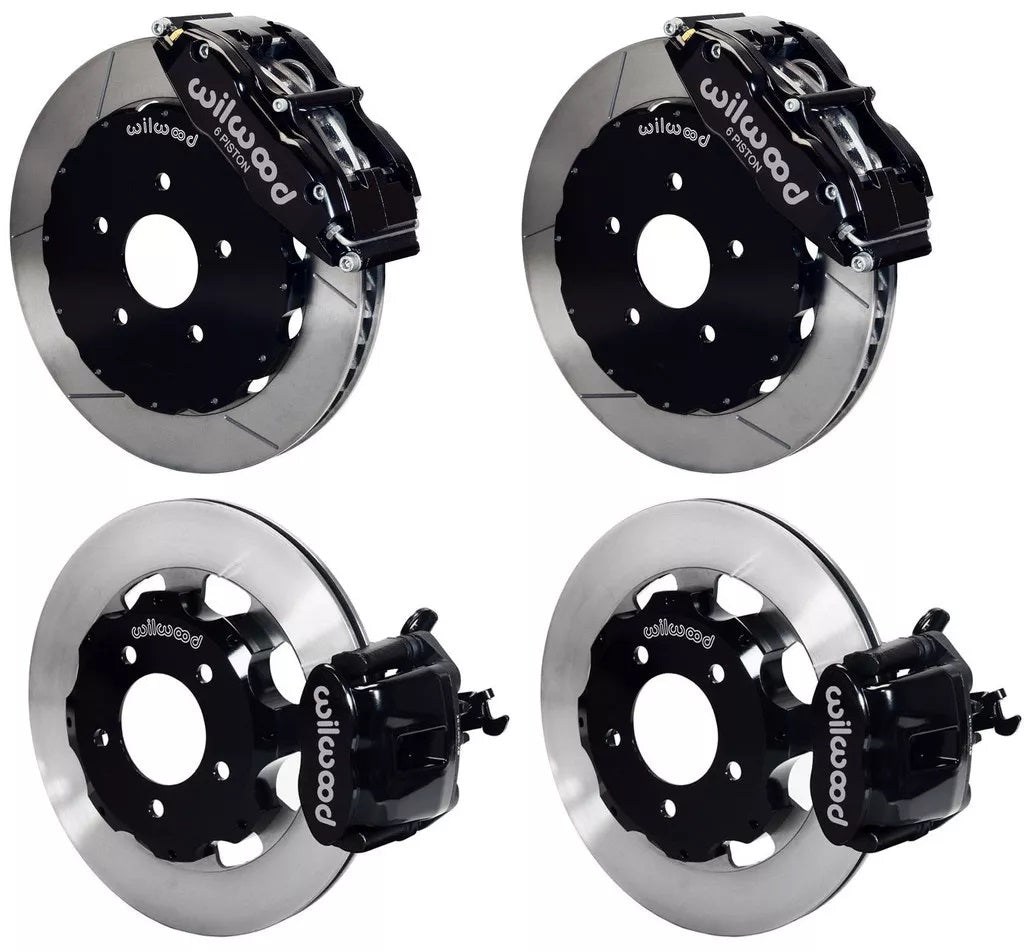

Brand New Wilwood Complete Premium Big Brake Front & Rear Disc Brake Kit.

Complete Kit Includes:

• Superlite 6 Bolt-On Front Hat & 12.90" Disc Brake Kit (Part #140-11978) for Both Front Wheels
• Combination Parking Brake Bolt-On Rear Hat & 12.19" Disc Brake Kit (Part #140-11979) for Both Rear Wheels

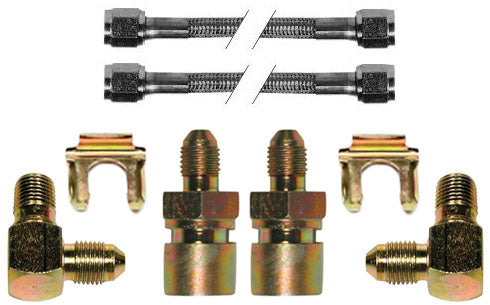

• Full Line Kit for the Front with 24" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

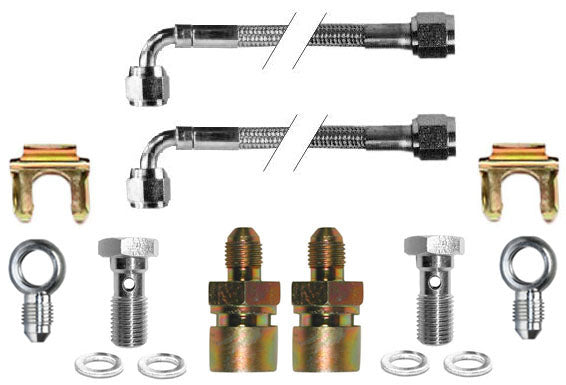

• Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

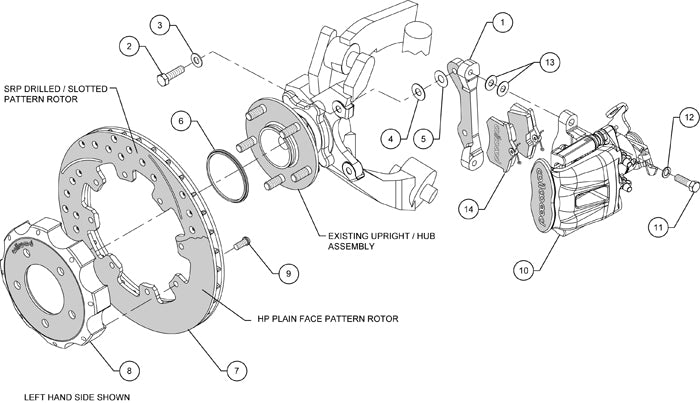

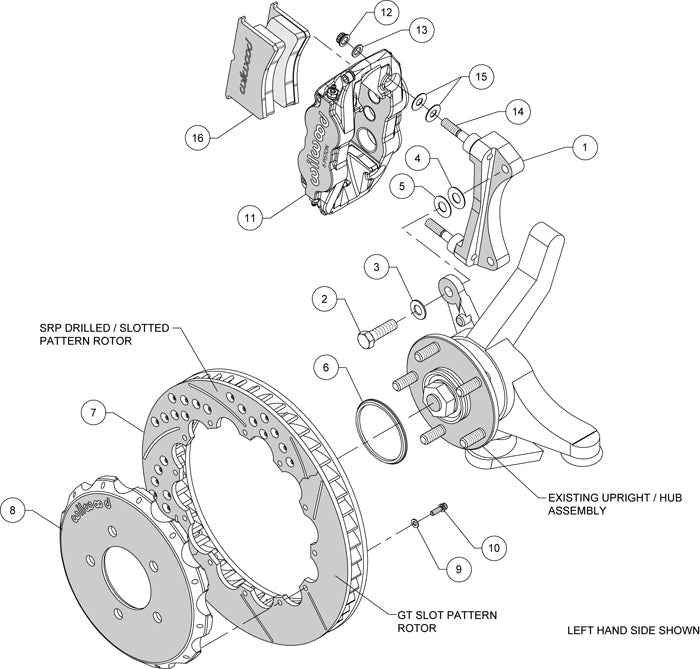

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• Honda:
  • Civic Coupe:
    • 2006-2012 Coupe 2.0L (DOHC) SI
  • Civic Sedan:
    • 2007-2012 Sedan 2.0L (DOHC) SI

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, SL6R forged billet six-piston calipers with 13” rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods.

For the Rear, Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake.  The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads.  CPB kits provide the correct balanced brake performance for high performance applications.

These Big Brake kits require at least 17" diameter wheels on the rear.

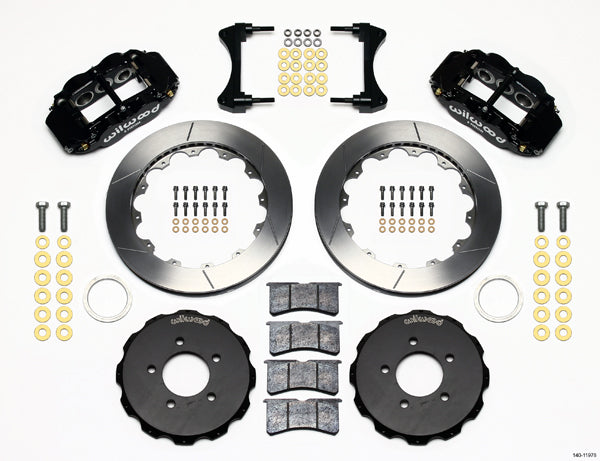

Front kit includes parts for both front wheels:

• 1.10" Thick x 12.90" O.D. Rotors
• Narrow Superlite 6R Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both front wheels

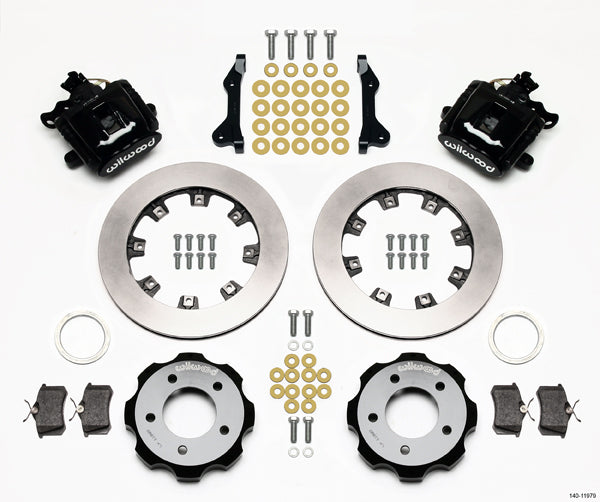

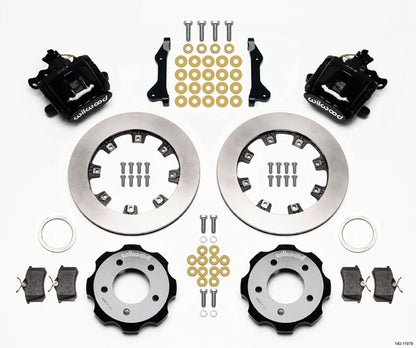

Rear kit includes parts for both rear wheels:

• .810" Thick x 12.19" O.D. Rotors
• Combination Parking Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Brake Hats
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 90 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
