69-76 AMC BRAKE KIT,FRONT,FDL,11",RED

69-76 AMC BRAKE KIT,FRONT,FDL,11",RED

SKU:WIL 140-11940R

Regular price $1,009.99
Regular price Sale price $1,009.99
View full details

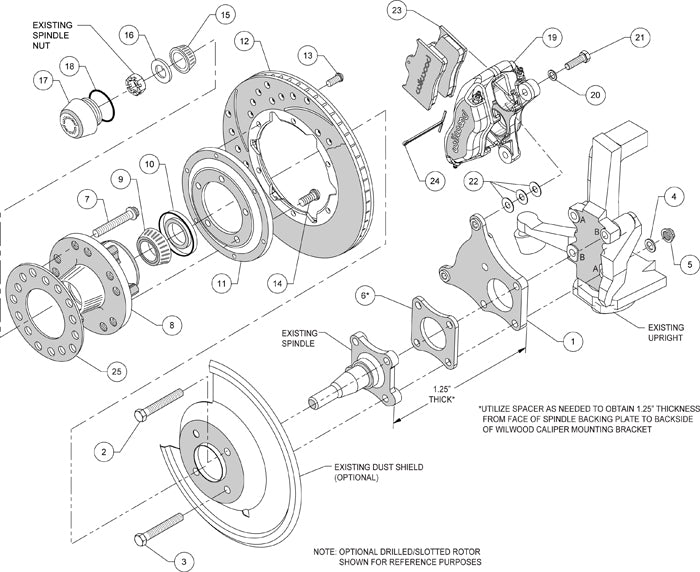

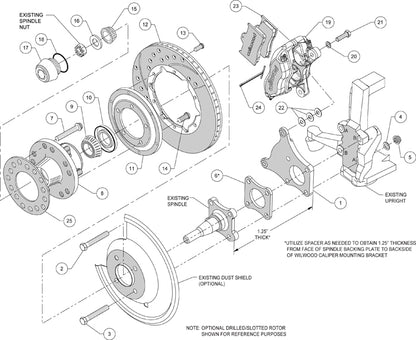

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

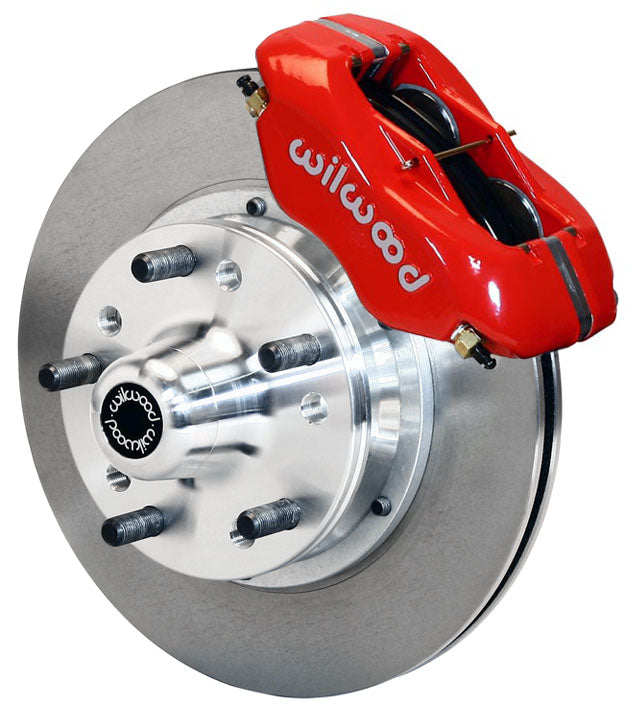

  • WILWOOD LIMITED-OFFSET FORGED DYNALITE PRO SERIES BOLT-ON FRONT HUB & 11.00" DISC BRAKE KIT FOR:
    AMERICAN MOTORS:
    -1969-1973 AMBASSADOR, ALL WITH DISC BRAKE SPINDLES*
    -1974 AMBASSADOR, ALL WITH DISC BRAKE SPINDLES & KELSEY HAYES CALIPERS*
    -1969-1974 AMX, ALL WITH DISC BRAKE SPINDLES*
    -1971-1973 GREMLIN, ALL WITH DISC BRAKE SPINDLES*
    -1974-1976 GREMLIN, ALL WITH DISC BRAKE SPINDLES & KELSEY HAYES CALIPERS*
    -1970-1973 HORNET, ALL WITH DISC BRAKE SPINDLES*
    -1974-1976 HORNET, ALL WITH DISC BRAKE SPINDLES & KELSEY HAYES CALIPERS*
    -1969-1973 JAVELIN, ALL WITH DISC BRAKE SPINDLES*
    -1974 JAVELIN, ALL WITH DISC BRAKE SPINDLES & KELSEY HAYES CALIPERS*
    -1971-1973 MATADOR, ALL WITH DISC BRAKE SPINDLES*
    -1974 MATADOR, ALL WITH DISC BRAKE SPINDLES & KELSEY HAYES CALIPERS*
    -1969 RAMBLER, ALL WITH DISC BRAKE SPINDLES*
    -1969-1970 REBEL, ALL WITH DISC BRAKE SPINDLES*
    -1969 ROGUE, ALL WITH DISC BRAKE SPINDLES*

  • FEATURING STANDARD ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • WILWOODS LIMITED-OFFSET FDL PRO SERIES FRONT HUB KITS OFFER COMPLETE DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM SPINDLES ON AMERICAN MUSCLE CARS, VINTAGE RODS, & HEAVYWEIGHT DRAG CARS.
  • THEY ARE DESIGNED SPECIFICALLY TO KEEP THE TRACK WIDTH AS CLOSE TO THE FACTORY POSITION AS POSSIBLE.
  • BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS & STYLE PREFERENCES FOR A DAILY DRIVER, SERIOUS COMPETITION, OR THE MOST DISCRIMINATING SHOW ENTHUSIASTS
  • MOST KITS REQUIRE NO MODIFICATION FOR INSTALLATION
  • THESE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS

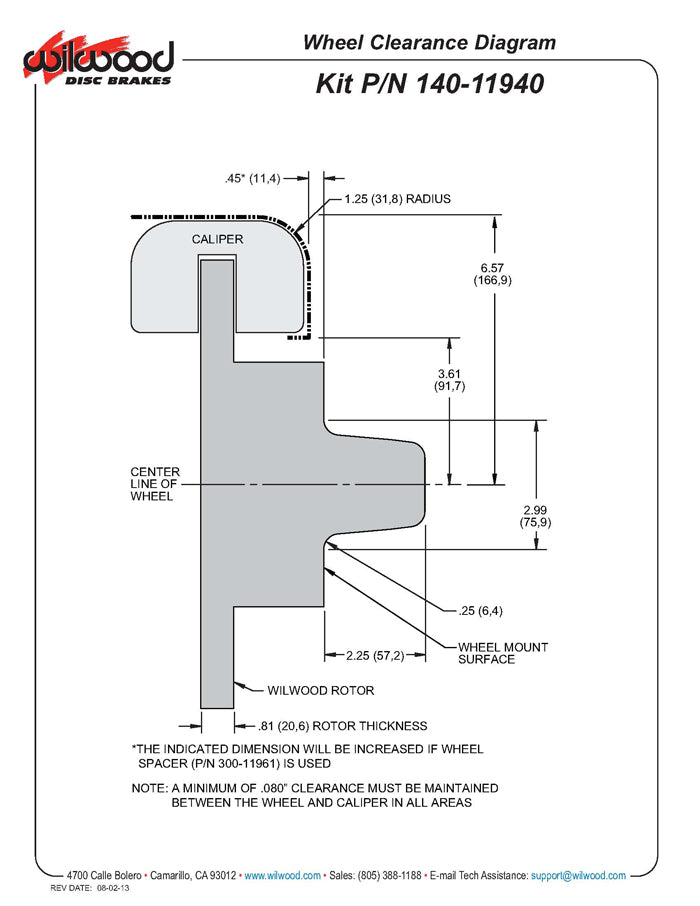

  • THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

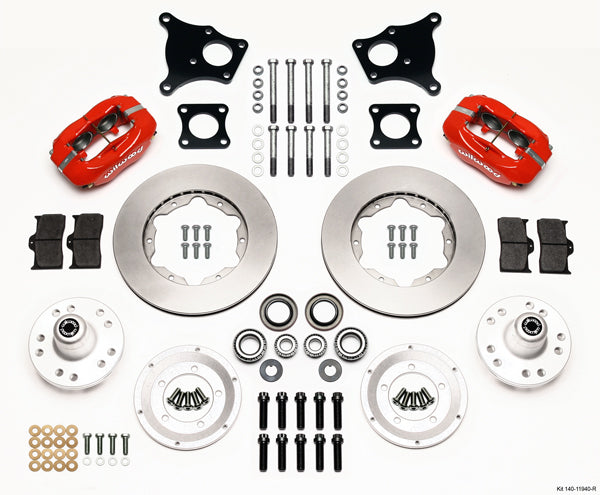

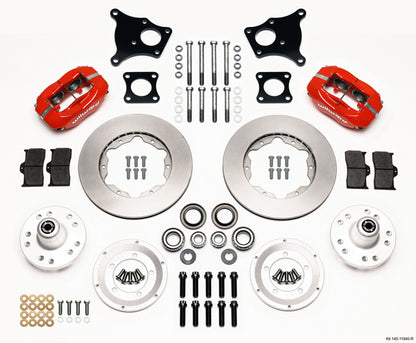

  • KIT INCLUDES:
    *STANDARD, .810" THICK X 11.00" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *HUBS,
    *BEARINGS,
    *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 42 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
