85-87 CORVETTE,FULL DISC BRAKE KIT,14"/13" DRILLED,BLACK CALIPERS

Brand New Wilwood Complete Premium Big Brake 14" Front & 13" Rear Disc Brake Kit.

Complete Kit Includes:

• Superlite 6R Bolt-On Front Hat & 14.00" Disc Brake Kit (Part #140-11919-D) for Both Front Wheels
• Superlite 4R Bolt-On Rear Hat & 12.90" Disc Brake Kit (Part #140-11920-D) for Both Rear Wheels

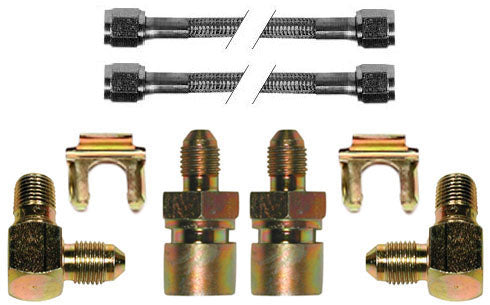

• Full Line Kit for the Front with 15" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings.
• Full Line Kit for the Rear with 15" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings.

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Features Drilled & Slotted Rotors, as well as Powder-Coated Black Calipers.

Fits:

• 1985-1987 Chevrolet C-4 Corvette

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 14" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines.

For the Rear, Forged Narrow Superlite 4R four piston calipers are combined with BP-20 compound pads and 1" rotors in this group of big brake kits for custom high performance street and show machines. This group of specialized kits for cars, trucks, and SUV’s retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance with 13” and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades.

These Big Brake kits require at least 18" diameter wheels.

Front kit includes parts for both front wheels:

• Drilled & Slotted, 1.10" Thick x 14.00" O.D. Rotors
• Narrow Superlite 6R Calipers - Black
• Caliper Mounting Brackets
• BP-20 Smart Compound Brake Pads
• Brake Hats, &
• All Hardware necessary to install the complete braking system on both front wheels

Rear kit includes parts for both rear wheels:

• Drilled & Slotted, 1.10" Thick x 12.88" O.D. Rotors
• Narrow Superlite 4R Calipers - Black
• Caliper Mounting Brackets
• BP-20 Smart Compound Brake Pads
• Brake Hats, &
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 111 lbs.

You can view and download the complete assembly instruction booklet for the Front kit here.

You can view and download the complete assembly instruction booklet for the Rear kit here.
