2011-2019 FORD FIESTA,REAR WITH PARKING BRAKE,11.75" DRILLED ROTORS,RED CALIPERS

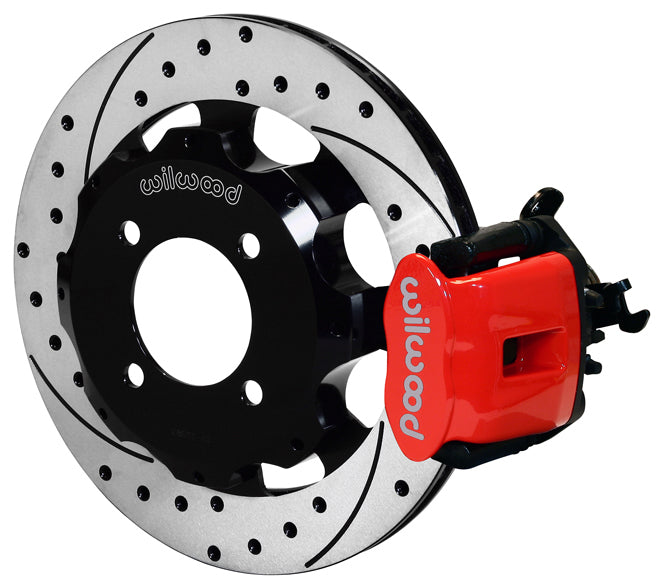

Brand New Wilwood Combination Parking Brake Kit Featuring 11.75" Drilled Rotors with Red Calipers For Both Rear Wheels (Part #140-11900-DR).

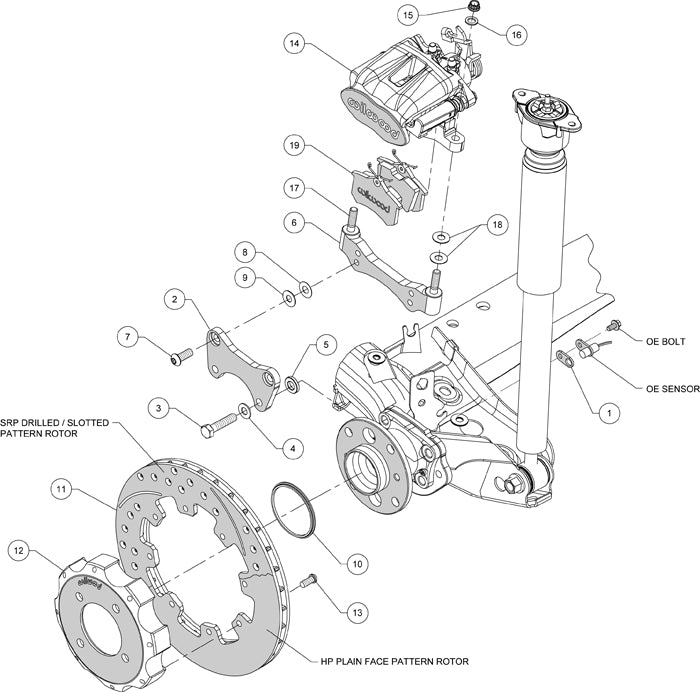

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Ford:
  • 2011-2019 Fiesta S

  • 2011-2019 Fiesta SE

  • 2011-2012 Fiesta SEL

  • 2011-2013 Fiesta SES

  • 2019 ST Fiesta ST Line

  • 2013-2018 Fiesta Titanium

Combination Hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.

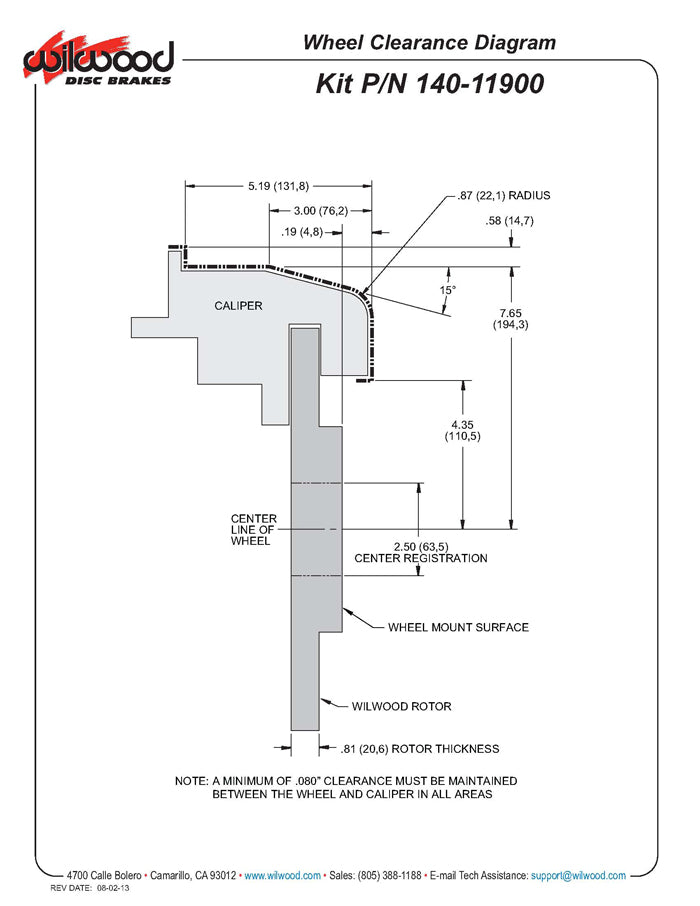

This kit require at least 17" diameter wheels.

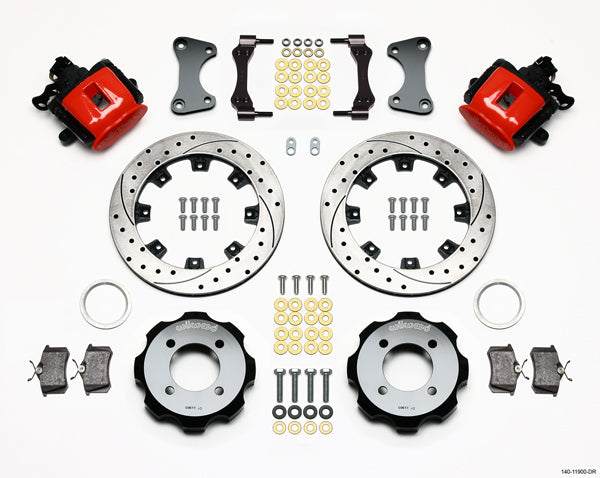

Kit includes parts for both rear wheels:

• 0.81" Thick x 11.75" O.D. Rotors
• Combination Parking Brake Calipers

• BP-10 Compound Brake Pads

• Rotor Hat
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 36 lbs.

You can view and download the assembly/instruction booklet here.
