1965-1982 CORVETTE D8 CALIPER & PAD SET,6 PISTON FRONT & 4 PISTON REAR,RED

Brand New Wilwood Red Caliper Set with D8-6 Calipers, D8-4 Calipers, Pads, & Flexline Kit for Both Front & Rear Wheels (Part #140-11857-R, 140-10790-R).

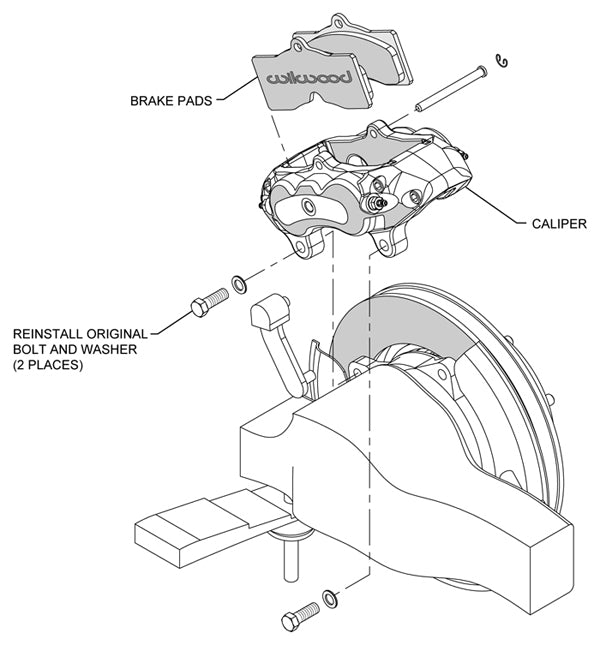

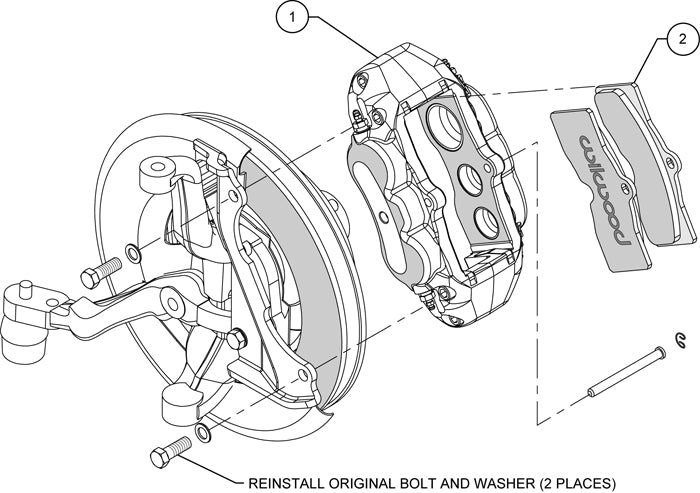

See the list & diagram for details of the parts included.

Fits:

• Chevrolet:

  • 1965-1967 Corvette C-2

  • 1968-1982 Corvette C-3

The D8-6 caliper is a direct bolt-on replacement for the factory original calipers on all 1965-82 Corvette's.  Forged billet aluminum bodies, stainless steel pistons and competition style high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design.  Calipers can be used with any wheel that clears the OE calipers.  The factory piston sizes were duplicated to maintain the original front to rear brake bias and use of the OE master cylinder.  Kits contain DOT compliant stainless steel braided brake lines with BP-10 high friction pads.

The D8-4 caliper is a direct bolt-on replacement for the factory original calipers on all 1965-1982 Corvette's.  Forged billet aluminum bodies, stainless steel pistons, & competition style high-temperature seals put an end to the rust, bore pitting, & seal failures that plague the OE caliper design. Kits contain DOT compliant stainless steel braided brake lines with BP-10 high friction pads.

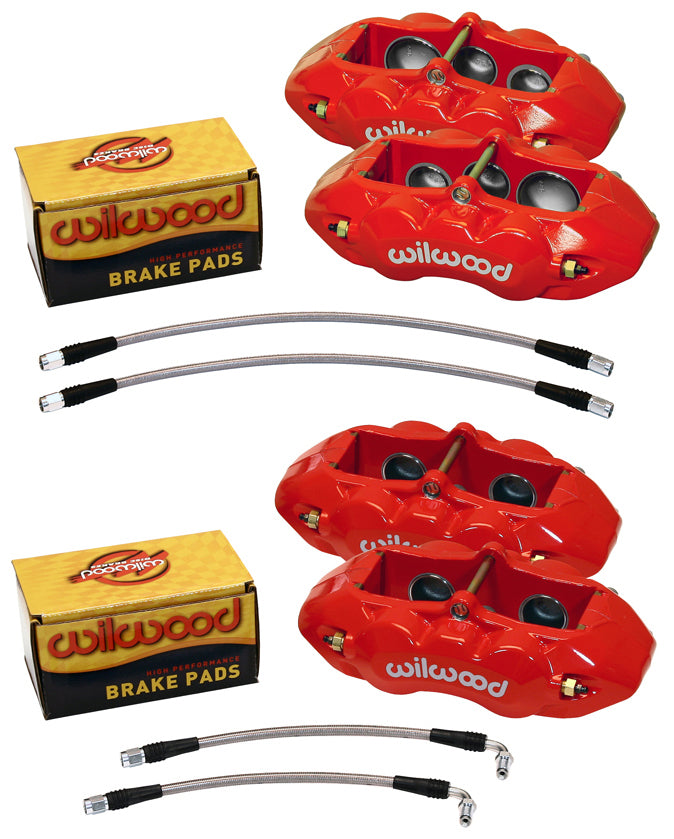

Kit includes parts for both front and rear wheels:

• D8-6 Front Calipers - 6 Piston
• BP-10 Smart Compound Brake Pads
• Stainless Steel Flexline Kit
• D8-4 Rear Calipers - 4 Piston
• BP-10 Smart Compound Brake Pads
• Stainless Steel Flexline Kit

Complete kit weighs approximately 34 lbs.

You can download the complete assembly instruction booklets for the front and rear.
