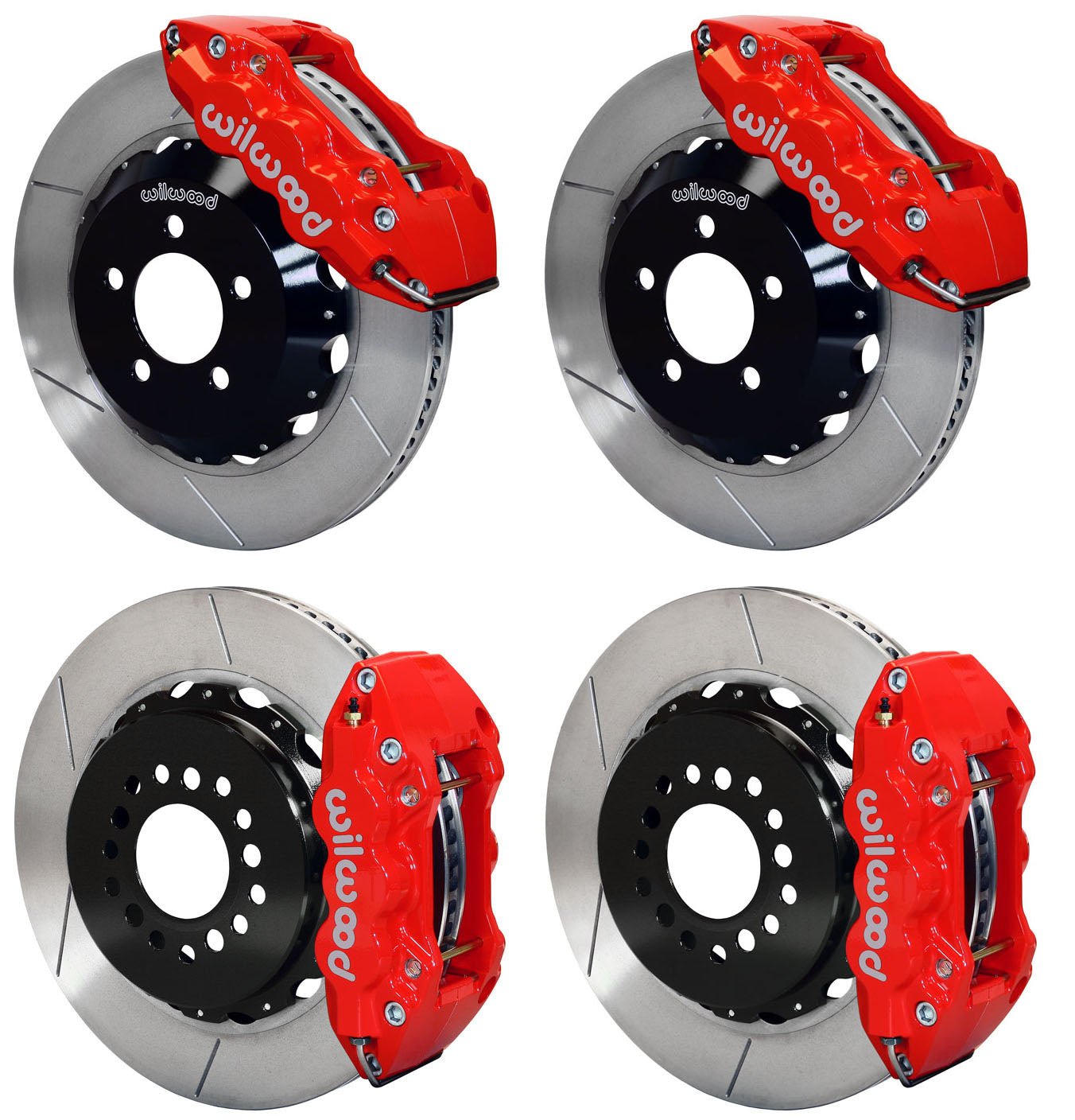

05-11 CHARGER FULL DISC BRAKE KIT,14" ROTORS,RED CALIPERS

Brand New Wilwood Complete Premium Big Brake Front & Rear Disc Brake Kit.

Complete Kit Includes:

• W6A Bolt-On Front Hat & 14.25" Disc Brake Kit (Part #140-11764-R) for Both Front Wheels
• W4A Bolt-On Rear Hat & 14.25" Disc Brake Kit (Part #140-11765-R) for Both Rear Wheels

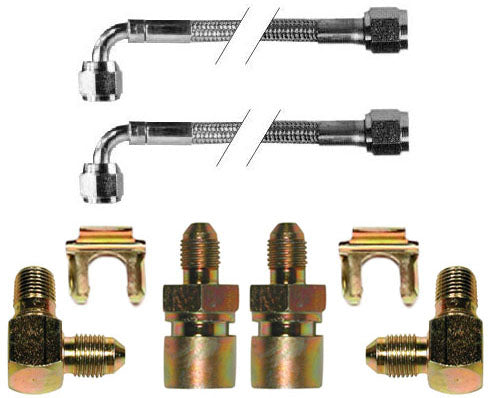

• Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

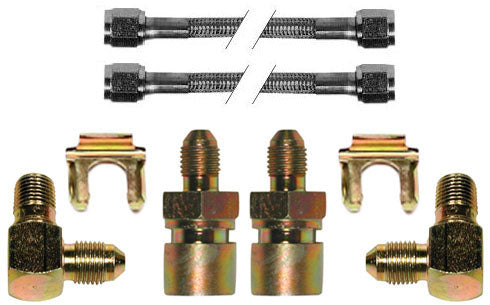

• Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

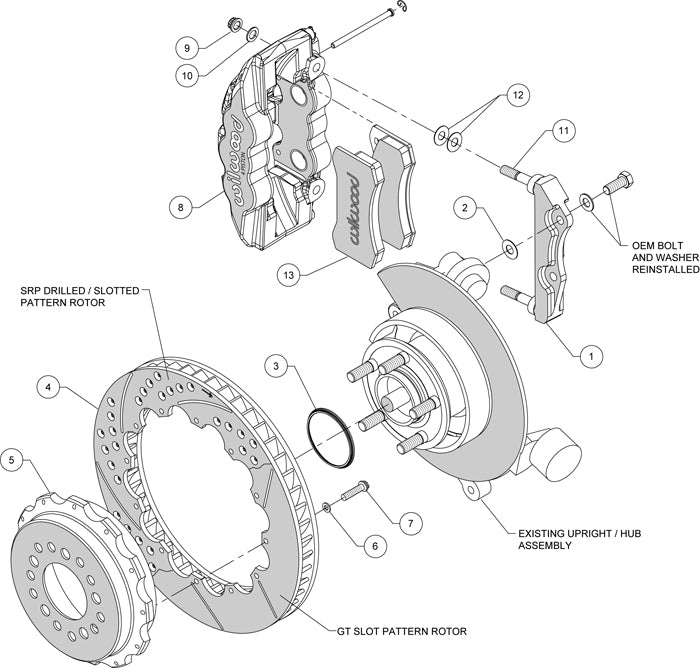

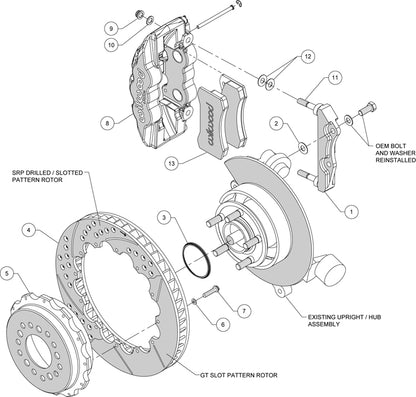

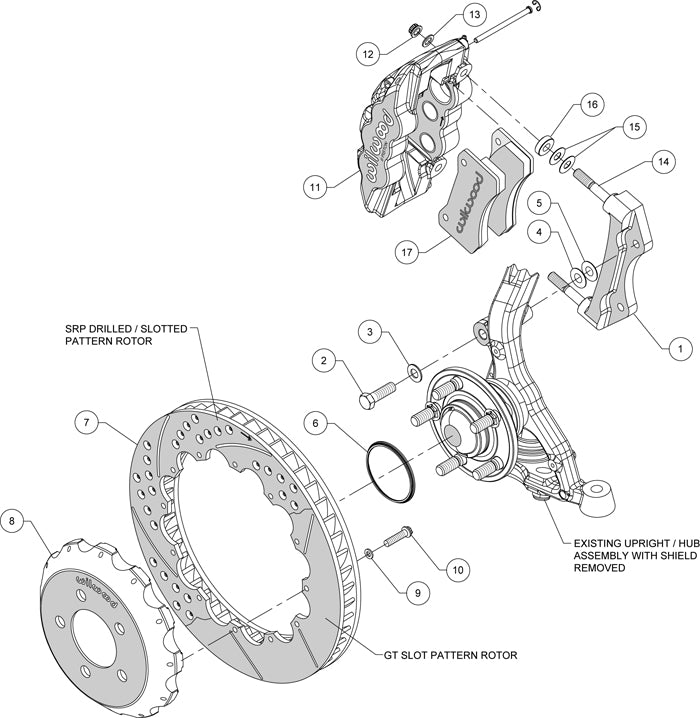

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Features Powder-Coated Red Calipers.

Fits:

• Dodge:
• 2009-2010 Dodge Challenger, 3.5L
• 2009-2012 Dodge Challenger, 5.7L
• 2011-2012 Dodge Challenger, 3.6L
• 2005 Dodge Charger, all RWD except SRT-8 or Police Package
• 2006-2010 Dodge Charger, RWD 2.7L
• 2006-2010 Dodge Charger, RWD 3.5L
• 2006-2009 Dodge Charger, RWD 5.7L
• 2010-2013 Dodge Charger, RWD 5.7L with Dual Piston Calipers
• 2011-2013 Dodge Charger, RWD 3.6L
• 2005 Dodge Magnum, all RWD except SRT-8
• 2006-2008 Dodge Magnum, RWD 2.7L
• 2006-2008 Dodge Magnum, RWD 3.5L
• 2006-2008 Dodge Magnum, RWD 5.7L
• Chrysler:
  • 2005 Chrysler 300, all RWD except SRT-8
  • 2006-2011 Chrysler 300, all RWD
  • 2012 Chrysler 300, RWD 3.6L
  • 2012 Chrysler 300, RWD 5.7L
  • 2005 Chrysler 300C, all RWD except SRT-8
  • 2006-2010 Chrysler 300C, RWD 5.7L except SRT-8
  • 2011-2012 Chrysler 300C, all RWD

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, W6AR calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. It’s the biggest of the BIG, providing big brake performance for show and dual purpose street and track vehicles. It provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. These kits are designed specifically for these vehicles and are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.25” rotors provide maximum cooling for sustained high heat durability.

For the Rear, W4AR Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.25" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

These kits are the perfect compliment wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

These Big Brake kits require at least 18" diameter wheels.

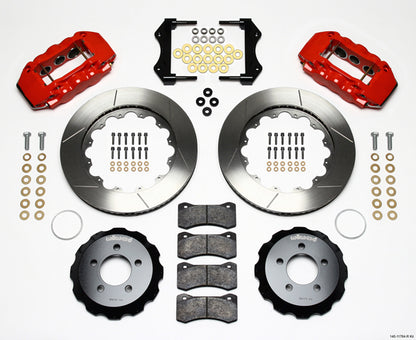

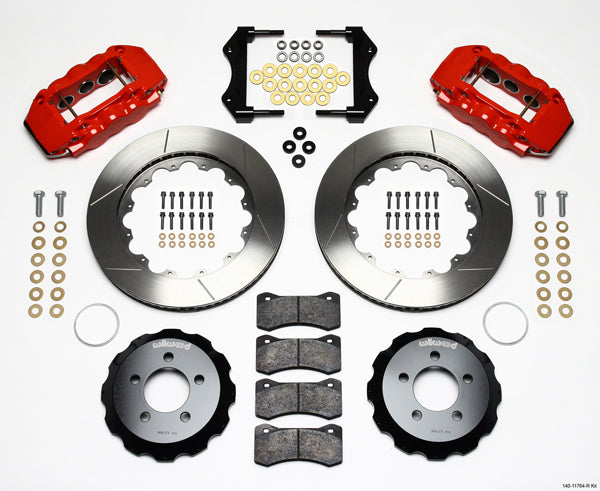

Kit includes parts for both front wheels:

• 1.25" Thick x 14.25" O.D. Rotors
• W6A Brake Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Big Brake Hats
• Washers, Shims, Spacers, &
• All Hardware necessary to install the complete braking system on both front wheels

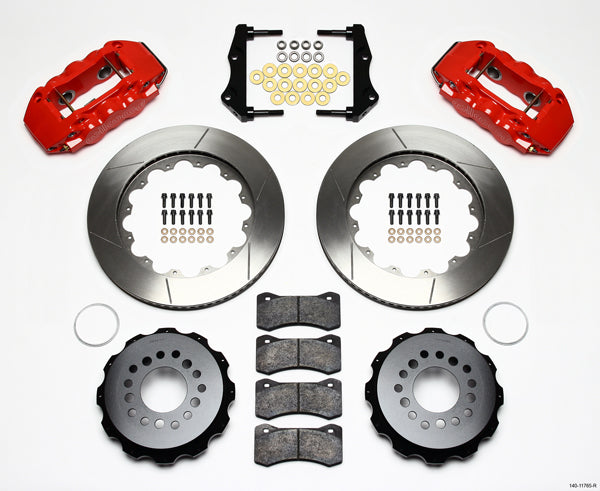

Kit includes parts for both rear wheels:

• 1.10" Thick x 14.25" O.D. Rotors
• W4A Brake Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Big Brake Hats
• Washers, Shims, Spacers, &
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 154 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
