GM 12 BOLT,2.75",REAR PB,11",DRILLED,RED

GM 12 BOLT,2.75",REAR PB,11",DRILLED,RED

WIL 140-11398DR

$1,089.99
$1,089.99
View full details

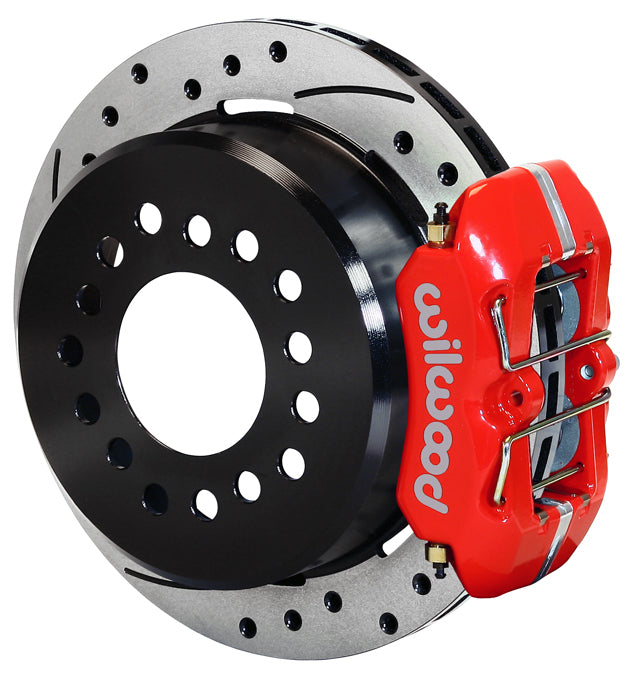

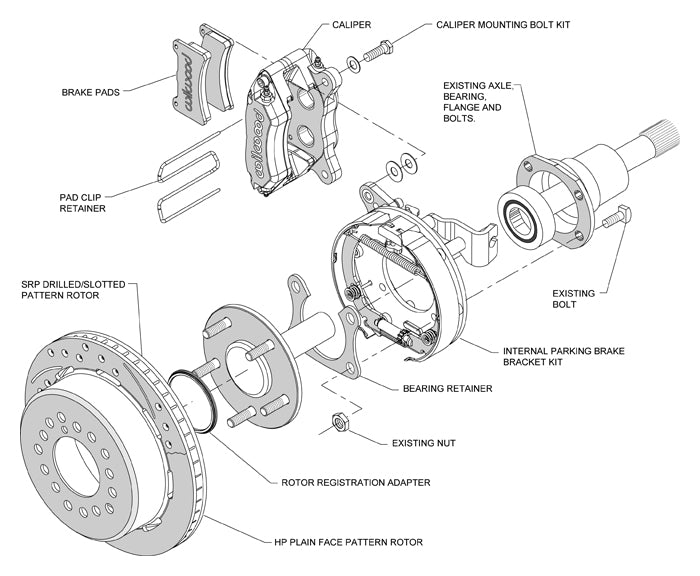

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD BOLT-ON REAR PARKING BRAKE DISC BRAKE KIT FOR 12 BOLT CHEVROLET REAR ENDS WITH A 2.75" AXLE FLANGE OFFSET (SEE DIAGRAMS BELOW) WITH C-CLIPS
  • FOR OE C-CLIP AXLES ONLY. DOES NOT SUPPORT SPECIAL END OR C-CLIP ELIMINATOR MODIFICATIONS
  • .KIT FITS SOME 14" WHEELS. CHECK WHEEL CLEARANCE DIAGRAM IN KIT INSTALLATION INSTRUCTIONS BEFORE PURCHASE.
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION

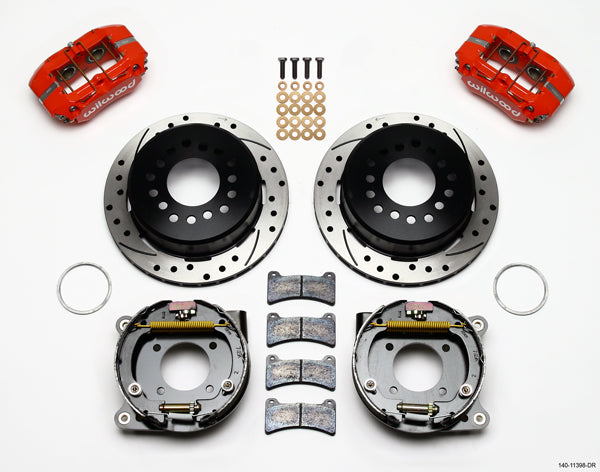

  • KIT INCLUDES:
    *.810" THICK x 11.00" O.D. DRILLED ROTORS,
    *DYNAPRO LOW PROFILE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *DRUM PARKING BRAKE ASSEMBLIES,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE



    • Click Picture
    For Larger View




    Click Picture
    For Larger View


  • ONLY ONE SIDE SHOWN
