BIG FORD NEW KIT,2.50",REAR PB,STAGGERED SHOCKS,DPLP,11" DRILLED ROTORS,BLACK

Brand New Wilwood Rear Parking Brake, Dynapro Low-Profile, Staggered Shock Mount, Bolt-On 11" Disc Brake Kit (Part #140-11392-D) for Both Rear Wheels.

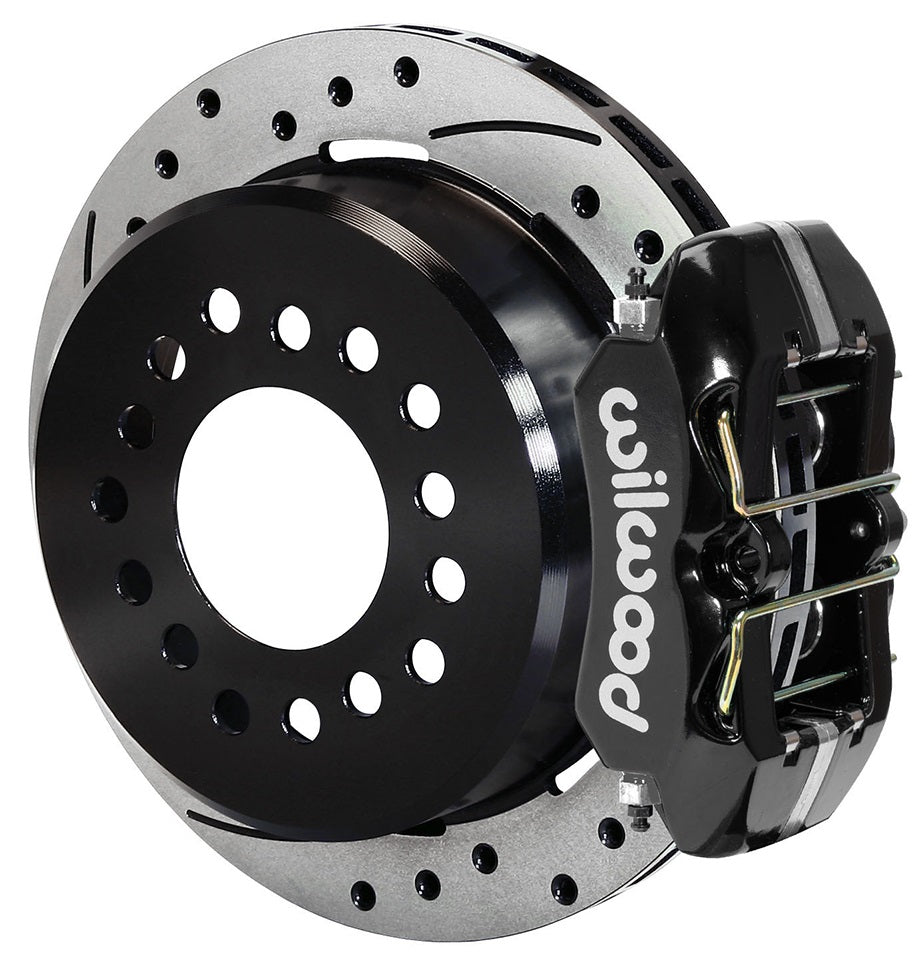

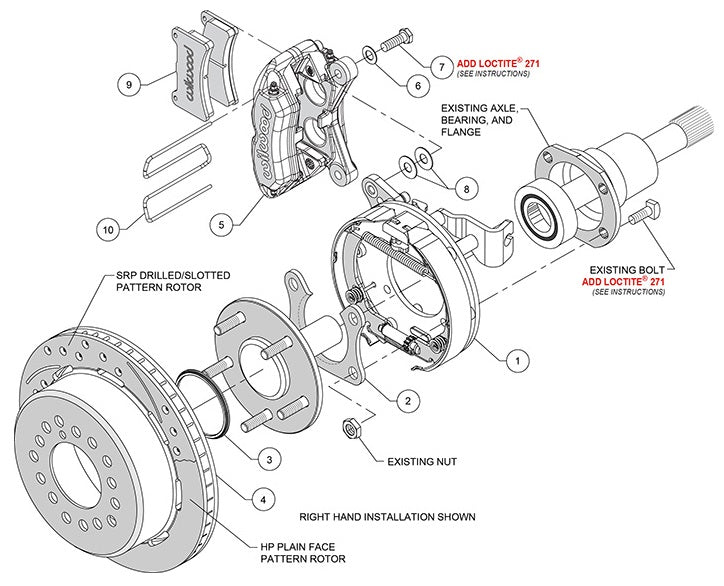

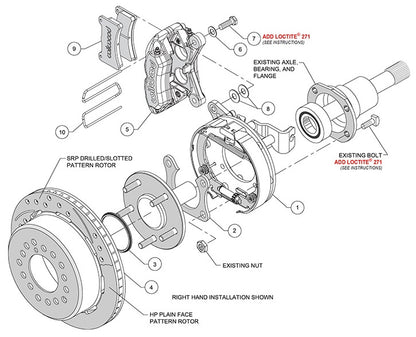

Only one side pictured. See the list & diagram below for a detail of the parts included.

Fits:

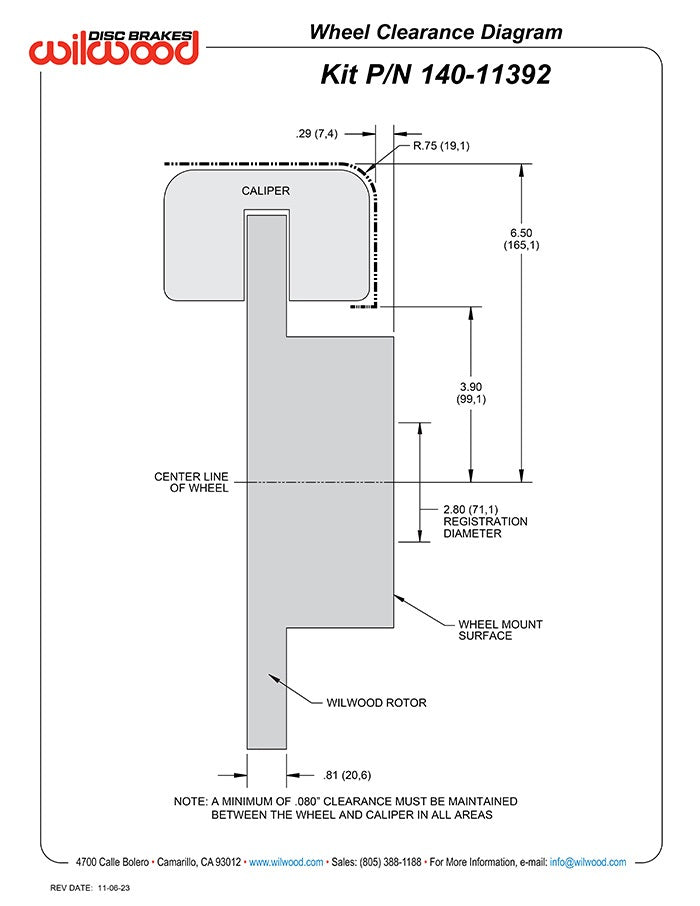

• Big Bearing Ford (New Style) Rear Ends with a 3.562" x 2.000" Mounting Pattern on the Axle Flange & with a 2.50" Flange Offset (see diagrams below)
• **Designed for staggered shock mount rear ends (R/H caliper is rear mount, L/H caliper is front mount)**

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

These Low-Profile Brake kits require at least 15" diameter wheels.

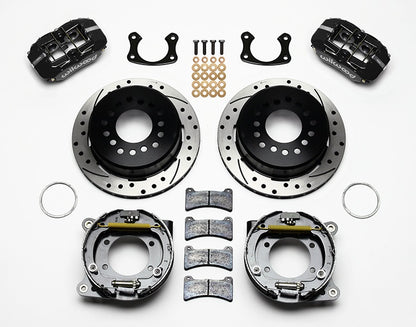

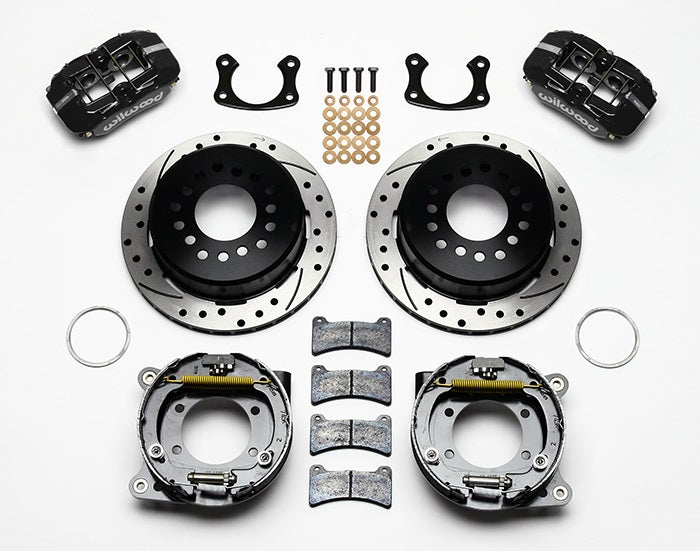

Kit includes parts for both rear wheels:

• Drilled & Slotted, .810" Thick x 11.00" O.D. Rotors with Hats
• Low-Profile Dynapro Calipers - Black
• Drum Parking Brake Assemblies with Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 44 lbs.

You can view and download the complete assembly instruction booklet for this kit here.
