D-52 BIG GM CALIPER & PAD SET,RE,1.28",B

D-52 BIG GM CALIPER & PAD SET,RE,1.28",B

SKU:WIL 140-11292-B

Regular price $449.99
Regular price Sale price $449.99
View full details
  • WILWOOD'S D52 REAR CALIPER KIT OFFERS A MATCHING REAR REPLACEMENT OPTION FOR OUR FRONT D52 CALIPERS. IT IS A DIRECT BOLT-ON 2-PISTON REPLACEMENT FOR THE FACTORY ORIGINAL SINGLE PISTON CALIPERS USED ON MANY CUSTOM APPLICATION REARS. WITH THE ADDED BENEFIT OF SMALLER REAR PISTON SIZING (2.46 SQ-INCHES OF AREA) NOT NORMALLY AVAILABLE IN OEM CALIPERS, FOR CORRECT FRONT AND REAR BIAS. FORGED BILLET ALUMINUM BODIES, STAINLESS STEEL PISTONS, AND COMPETITION STYLE HIGH-TEMPERATURE SEALS PUT AN END TO THE RUST, BORE PITTING, AND SEAL FAILURES THAT PLAGUE THE OE CALIPER DESIGN. D52 CALIPERS PROVIDE LOW-MAINTENANCE PERFORMANCE AND A HUGE WEIGHT SAVINGS WITH HIGH TEMPERATURE RELIABILITY FOR THE STREET AND TRACK. D52 CALIPERS MOUNT IN THE STOCK LOCATION OVER STOCK ROTORS, USE THE ORIGINAL STYLE OE D52 BRAKE PADS AND AN OE 7/16-20 BANJO BOLT BRAKE LINE MOUNTING. CALIPERS CAN BE USED WITH MOST WHEELS THAT CLEAR THE OE CALIPERS. KITS CONTAIN WILWOOD'S HARDENED SLIDE PINS AND BP-10 HIGH FRICTION PADS. MATCHING FRONT CALIPERS ARE ALSO AVAILABLE FOR CUSTOM INSTALLATIONS. THIS KIT FITS VEHICLES WITH 1.28" WIDE ROTORS.
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

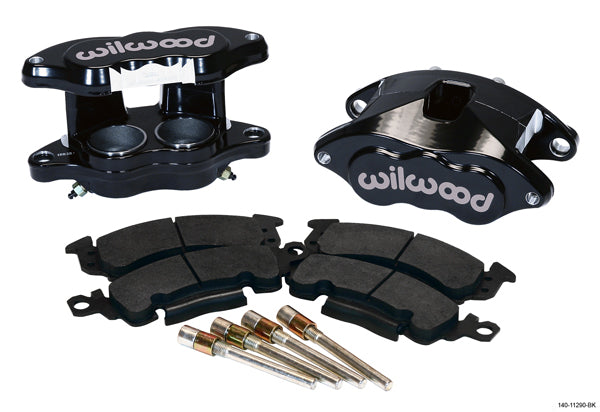

  • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:
  • D52 CALIPERS - BLACK
  • BP-10 SMART COMPOUND BRAKE PADS
  • CALIPER SLIDE PIN BOLTS WITH SLEEVES

  • FITS:
  • THIS PARTICULAR KIT FITS 1.28" THICK ROTORS
  • VEHICLES 1978 & UP (WITH M10-1.5 BANJO BOLTS) WILL REQUIRE NEW BRAKE LINES

  • BUICK:
    *1973-1975 APOLLO
    *1971-1973 CENTURION
    *1973-1977 CENTURY
    *1991-1992 COMMERCIAL CHASSIS
    *1970-1986 ELECTRA
    *1970-1987 ESTATE WAGON
    *1970-1972 GS
    *1969 GS 350
    *1970-1972 GS 455
    *1970-1989 LESABRE
    *1973-1977 REGAL
    *1970-1978 RIVIERA
    *1991-1992 ROADMASTER
    *1969-1979 SKYLARK
    *1969 SPECIAL
    *1969-1972 SPORTWAGON
    *1970 WILDCAT

    CADILLAC:
    *1987-1992 BROUGHAM
    *1967-1976 CALAIS
    *1975-1984 COMMERCIAL CHASSIS
    *1992-1996 COMMERCIAL CHASSIS
    *1967-1984 DEVILLE
    *1969-1978 EL DORADO
    *1967-1996 FLEETWOOD
    *1976-1979 SEVILLE

    CHECKER:
    *1969-1982 MARATHON

    CHEVROLET:
    *1985-2002 ASTRO
    *1967-1975 BEL AIR
    *1981 BEL AIR
    *1967-1972 BISCAYNE
    *1971-1974 BLAZER
    *1987-1991 BLAZER
    *1969-1972 BROOKWOOD
    *1975-1986 C10
    *1969-1974 C10 PICKUP
    *1969-1986 C10 SUBURBAN
    *1975-1986 C20
    *1971-1974 C20 PICKUP
    *1971-1986 C20 SUBURBAN
    *1975-1978 C30
    *1971-1974 C30 PICKUP
    *1969-1981 CAMARO
    *1967-1996 CAPRICE
    *1969-1973 CHEVELLE
    *1991-1993 COMMERCIAL CHASSIS
    *1969-1977 EL CAMINO
    *1975-1995 G10
    *1971-1974 G10 VAN
    *1975-1995 G20
    *1971-1974 G20 VAN
    *1975-1980 G30
    *1971-1974 G30 VAN
    *1967-1985 IMPALA
    *1975-1986 K10
    *1971-1974 K10 PICKUP
    *1971-1986 K10 SUBURBAN
    *1975-1986 K20
    *1971-1974 K20 PICKUP
    *1971-1986 K20 SUBURBAN
    *1975-1986 K5 BLAZER
    *1969-1972 KINGSWOOD
    *1973-1976 LAGUNA
    *1973-1977 MALIBU
    *1970-1977 MONTE CARLO
    *1969-1979 NOVA
    *1975-1980 P10
    *1971-1974 P10 VAN
    *1975-1989 P20
    *1971-1974 P20 VAN
    *1975-1978 P30
    *1974 P30 VAN
    *1987 R10
    *1987-1988 R10 SUBURBAN
    *1989-1991 R1500 SUBURBAN
    *1987 R20
    *1987 R20 SUBURBAN
    *1970-1972 TOWNSMAN
    *1987 V10
    *1990-1991 V1500 SUBURBAN
    *1987 V20
    *1987 V20 SUBURBAN

    GMC:
    *1975-1978 C15 SUBURBAN
    *1979-1986 C1500 SUBURBAN
    *1975-1978 C25
    *1975-1978 C25 SUBURBAN
    *1975-1978 C25/C2500 PICKUP
    *1975-1978 C25/C2500 SUBURBAN
    *1979-1986 C2500
    *1979-1986 C2500 SUBURBAN
    *1975-1978 C35
    *1975-1978 C35/C3500 PICKUP
    *1975-1978 G15
    *1975-1978 G15/G1500 VAN
    *1979-1995 G1500
    *1975-1978 G25
    *1975-1978 G25/G2500 VAN
    *1979-1995 G2500
    *1975-1978 G35
    *1975-1978 G35/G3500 VAN
    *1979-1980 G3500
    *1971-1991 JIMMY
    *1975-1978 K15
    *1975-1978 K15 SUBURBAN
    *1975-1978 K15/K1500 PICKUP
    *1975-1978 K15/K1500 SUBURBAN
    *1979-1986 K1500
    *1979-1986 K1500 SUBURBAN
    *1975-1978 K25
    *1975-1978 K25 SUBURBAN
    *1975-1978 K25/K2500 PICKUP
    *1975-1978 K25/K2500 SUBURBAN
    *1979-1986 K2500
    *1979-1986 K2500 SUBURBAN
    *1975-1978 P15
    *1975-1978 P15/P1500 VAN
    *1979-1980 P1500
    *1975-1978 P25
    *1975-1978 P25/P2500 VAN
    *1979-1989 P2500
    *1975-1978 P35
    *1975-1978 P35/P3500 VAN
    *1987 R1500
    *1987-1991 R1500 SUBURBAN
    *1987 R2500
    *1987 R2500 SUBURBAN
    *1985-2002 SAFARI
    *1971-1977 SPRINT
    *1987 V1500
    *1987-1991 V1500 SUBURBAN
    *1987 V2500
    *1987-1988 V2500 SUBURBAN

    JEEP:
    *1974-1989 CHEROKEE
    *1984-1991 GRAND WAGONEER
    *1974-1986 J10
    *1974-1988 J20
    *1974-1989 WAGONEER

    OLDSMOBILE:
    *1969-1971 442
    *1969-1984 NINETY-EIGHT
    *1971-1992 CUSTOM CRUISER
    *1969-1977 CUTLASS
    *1975-1977 CUTLASS SALON
    *1969-1977 CUTLASS SUPREME
    *1976 CUTLASS TIARA
    *1969-1985 DELTA 88
    *1969-1972 F85
    *1973-1979 OMEGA
    *1969-1978 TORONADO
    *1969-1975 VISTA CRUISER

    PONTIAC:
    *1969-1981 BONNEVILLE
    *1969-1981 CATALINA
    *1969-1970 EXECUTIVE
    *1969-1981 FIREBIRD
    *1973-1975 GRAND AM
    *1969-1977 GRAND PRIX
    *1971-1974 GRANDVILLE
    *1969-1973 GTO
    *1969-1977 LEMANS
    *1983-1986 PARISIENNE
    *1977-1979 PHOENIX
    *1976-1989 SAFARI
    *1969-1970 TEMPEST
    *1971-1977 VENTURA

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
