D-52 BIG GM CALIPER & PAD SET,FRONT,1.04",G

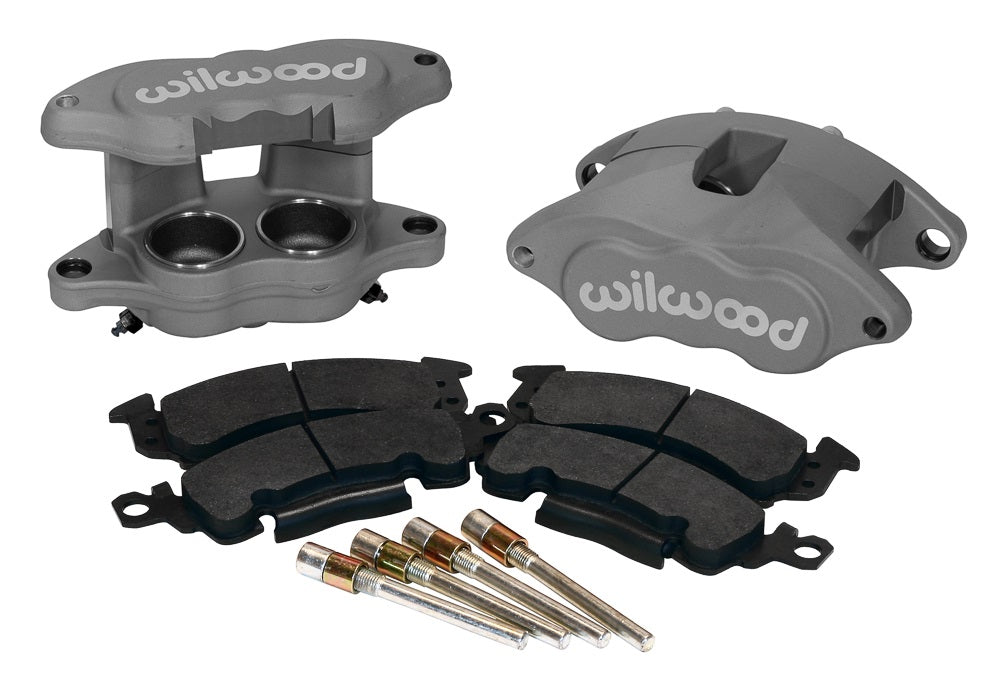

Brand New Wilwood D52 Front Caliper Kit Featuring Anodized Grey Calipers for Both Front Wheels (Part #140-11291).

Only one side pictured. See the list, the diagram, the assembly booklet for the details of the parts included.

Wilwood's D52 Front Caliper Kit is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00” piston provide 6.28 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Vehicles 1978 & Up (with M10-1.5 banjo bolts) will require new brake lines available below.

Fits:

• NOTE: This particular kit fits 1.04" thick rotors. Vehicles 1978 & Up (with M10-1.5 banjo bolts) will require new brake lines
• Buick:

  • 1973-1975 Apollo, with Disc Brake Spindles

  • 1973-1977 Century, with Disc Brake Spindles

  • 1977-1984 Electra

  • 1977-1985 Estate Wagon

  • 1986-1991 Estate Wagon, with 12" Diameter Rotors

  • 1969-1972 Gran Sport, with Disc Brake Spindles

  • 1977-1985 LeSabre

  • 1986-1990 LeSabre, Station Wagon Only

  • 1978-1984 Park Avenue, with 12" Diameter Rotors

  • 1973-1977 Regal, with Disc Brake Spindles

  • 1977-1978 Riviera

  • 1991-1996 Roadmaster

  • 1969-1972 Skylark, with Disc Brake Spindles

  • 1975-1979 Skylark, with Disc Brake Spindles

  • 1969-1972 Special, with Disc Brake Spindles

  • 1969-1972 Sportwagon, with Disc Brake Spindles

• Cadillac:

  • 1977-1984 Concours

  • 1977-1984 Deville

  • 1977 Fleetwood Brougham, with Rear Disc Brakes

  • 1978-1984 Fleetwood Brougham

  • 1985-1996 Fleetwood Brougham, RWD, with 12"
  • Diameter Rotors

  • 1976 Seville, with Disc Brake Spindles

  • 1977-1979 Seville

• Chevrolet:

  • 1985-2002 Astro Van, 4 x 2 only, with Rear Drum Brakes

  • 1981-1986 C10 Pickup, 4 x 2 with 1.00" Wide Front Rotors

  • 1981-1986 C10 Suburban, 4 x 2 with 1.00" Wide Front Rotors

  • 1969-1981 Camaro, with Disc Brake Spindles

  • 1977-1992 Caprice

  • 1993 Caprice, All except Taxi option 9C6 & Police option

  • 1994-1995 Caprice, Station Wagon, All except Public Service Vehicle

  • 1994-1996 Caprice, Sedan, All except Taxi option 9C6 & Police option

  • 1969-1977 Chevelle, with Disc Brake Spindles

  • 1969-1974 Chevy II, with Disc Brake Spindles

  • 1977-1978 Concours

  • 1969-1977 El Camino, with Disc Brake Spindles

  • 1977-1985 Impala

  • 1973-1977 Malibu, with Disc Brake Spindles

  • 1970-1977 Monte Carlo, with Disc Brake Spindles

  • 1969-1979 Nova, with Disc Brake Spindles

  • 1987 R10 Pickup, 4 x 2 with 1.00" Wide Front Rotors

  • 1987 R10 Suburban, 4 x 2 with 1.00" Wide Front Rotors

• GMC:

  • 1981-1986 C1500 Pickup, 4 x 2 with 1.00" Wide Front Rotors

  • 1981-1986 C15 Suburban, 4 x 2 with 1.00" Wide Front Rotors

  • 1987 R1500 Pickup, 4 x 2 with 1.00" Wide Front Rotors

  • 1987 R1500 Suburban, 4 x 2 with 1.00" Wide Front Rotors

  • 1985-2002 Safari Van, 2 Wheel Drive Only

  • 1971-1972 Sprint, with Disc Brake Spindles

  • 1973-1977 Sprint

• Oldsmobile:

  • 1969-1973 4-4-2, with Disc Brake Spindles

  • 1977-1985 88

  • 1986-1990 88, with 12" Diameter Rotors

  • 1992-1993 88, Station Wagon only, with 12" Diameter Rotors

  • 1977 98, All

  • 1978-1984 98, with 12" Diameter Rotors

  • 1977-1985 Custom Cruiser

  • 1986-1992 Custom Cruiser, Station Wagon only, with 12" Diameter Rotors

  • 1969-1977 Cutlass, with Disc Brake Spindles

  • 1968-1972 Cutlass Cruiser, with Disc Brake Spindles

  • 1969-1972 F85, with Disc Brake Spindles

  • 1973-1979 Omega, with Disc Brake Spindles

  • 1969-1976 Vista Cruiser, with Disc Brake Spindles

• Pontiac:

  • 1977-1981 Bonneville

  • 1987-1988 Bonneville, Station Wagon only

  • 1977-1981 Catalina

  • 1969-1981 Firebird, with Disc Brake Spindles

  • 1973-1975 Grand Am, with Disc Brake Spindles

  • 1969-1977 Grand Prix, with Disc Brake Spindles

  • 1969-1974 GTO, with Disc Brake Spindles

  • 1969-1977 Lemans, with Disc Brake Spindles

  • 1979-1986 Parisienne

  • 1977-1979 Phoenix, with Disc Brake Spindles

  • 1969-1972 Tempest, with Disc Brake Spindles

  • 1971-1977 Ventura II, with Disc Brake Spindles

Front kit includes:

• D52 Calipers

• BP-10 Smart Compound Brake Pads

• Caliper Slide Pin Bolts with Sleeves


Complete kit weighs approximately 17 lbs.

You can view and download the complete assembly instruction booklet for this kit here.
