10-19 CAMARO,AERO4,REAR,14.25" DRILLED ROTORS,RED

Brand New Wilwood AERO4 Big Brake Kit Featuring 14.25" Drilled Rotors with Red Calipers For Both Rear Wheels (Part #140-11270-DR).

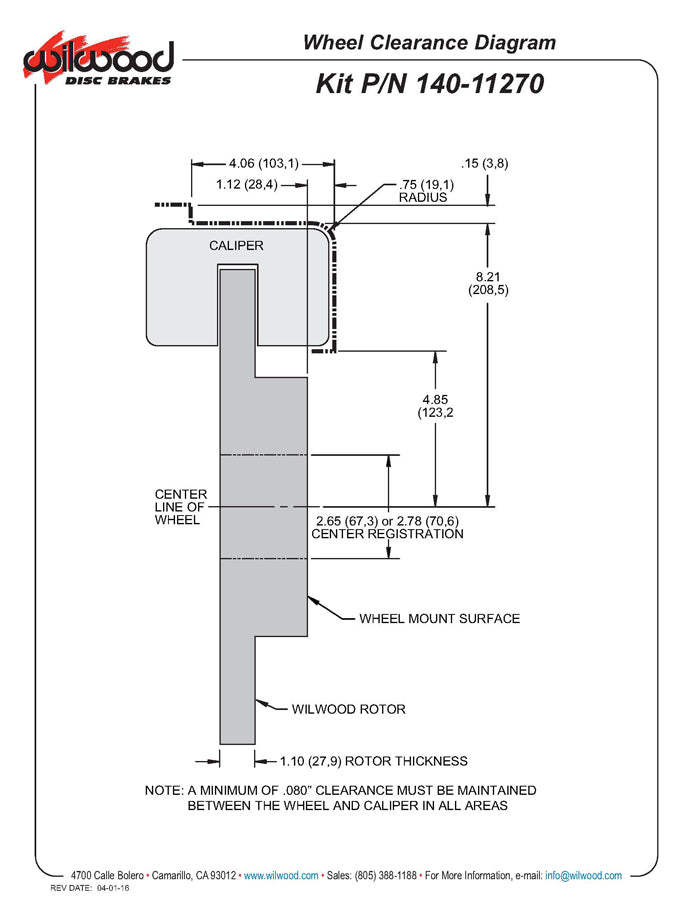

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Cadillac:
  • 2012 CTS 3.0L

  • 2012 CTS 3.6L

  • 2009-2012 CTS Base

  • 2008 CTS Brake Option J55

  • 2008 CTS Brake Option JE5

  • 2011-2012 CTS Coupe

  • 2009-2012 CTS Luxury

  • 2010-2012 CTS Performance

  • 2009-2012 CTS Premium

  • 2009-2012 CTS V

• Chevrolet:

  • 2015 Camaro LS

  • 2015 Camaro LT

  • 2016-2019 Camaro SS

  • 2010-2014 Camaro SS (V-8 Only) With Brembo Brakes

  • 2015 Camaro SS With Brembo Brakes

  • 2010-2014 Camaro (V-6 Only)

  • 2015 Camaro Z28 With Brembo Brakes

  • 2015 Camaro ZL1 With Brembo Brakes

AERO4 Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the AERO4 calipers, BP-20 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

This kit require at least 18" diameter wheels.

Kit includes parts for both rear wheels:

• 1.10" Thick x 14.25" O.D. Rotors
• 4 Piston AERO4 Calipers

• BP-20 Compound Brake Pads

• Parking Brake Hat
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 82 lbs.

You can view and download the assembly/instruction booklet here.
