97-13 CORVETTE C5 & C6,REAR,AERO4,14",DR

Brand New Wilwood AERO4 Big Brake Kit Featuring 14" Drilled Rotors with Black Calipers For Both Rear Wheels (Part #140-11119-D).

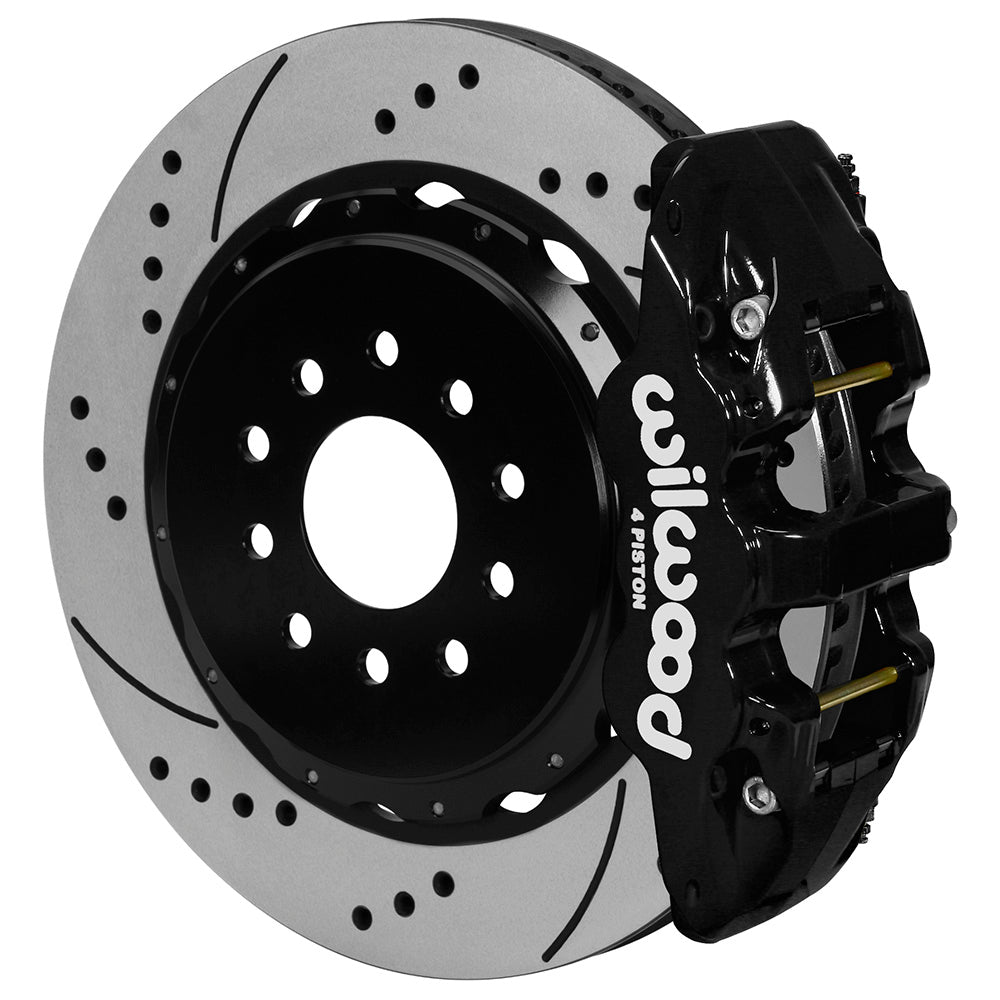

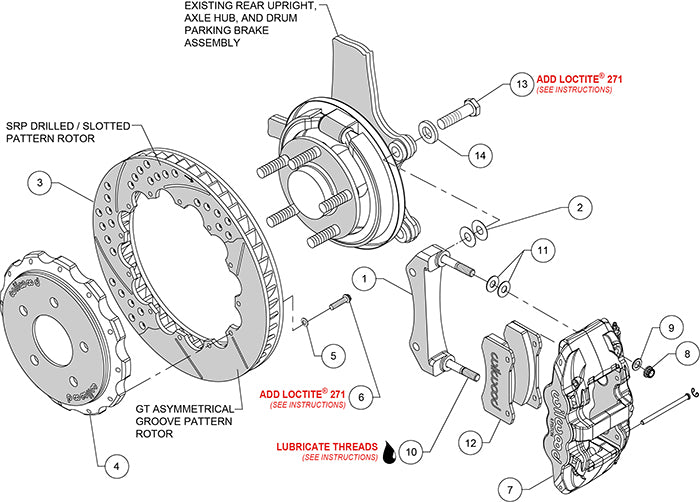

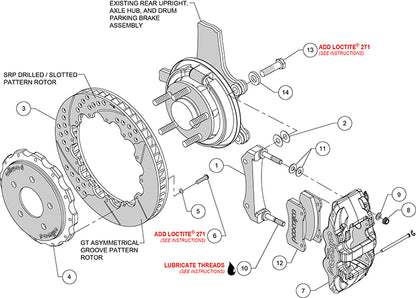

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• NOTE: Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
• Cadillac:
  • 2004-2009 XLR

• Chevrolet:

  • 2013 Corvette 427
  • 2009-2013 Corvette Base
  • 1997-2004 Corvette C-5 & Z06

  • 2005-2008 Corvette C-6 Base

  • 2006-2008 Corvette C-6 - Z06

  • 2010-2013 Corvette Grand Sport

  • 2009-2013 Corvette Z06

  • 2011 Z06 Corvette Carbon

  • 2009-2013 Corvette ZR1
• Factory Five Racing:
  • 2010+ GTM Supercar C-5 / C-6 Spindle & Rear End

AERO4 Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the AERO4 calipers, BP-20 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

This kit require at least 18" diameter wheels.

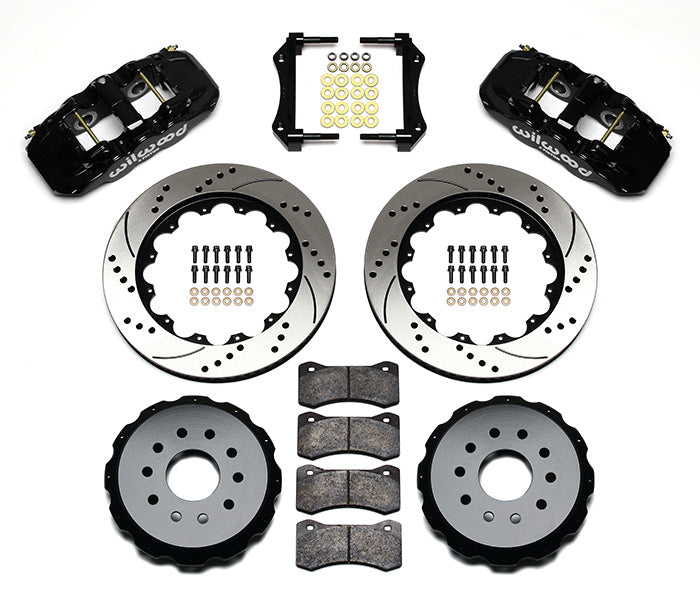

Kit includes parts for both rear wheels:

• 1.10" Thick x 14.00" O.D. Rotors
• 4 Piston AERO4 Calipers

• BP-20 Compound Brake Pads

• Parking Brake Hat
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 72 lbs.

You can view and download the assembly/instruction booklet here.
