70-73 FORD,MERCURY FULL DISC BRAKE KIT,12" ROTORS,4 PISTON RED CALIPERS

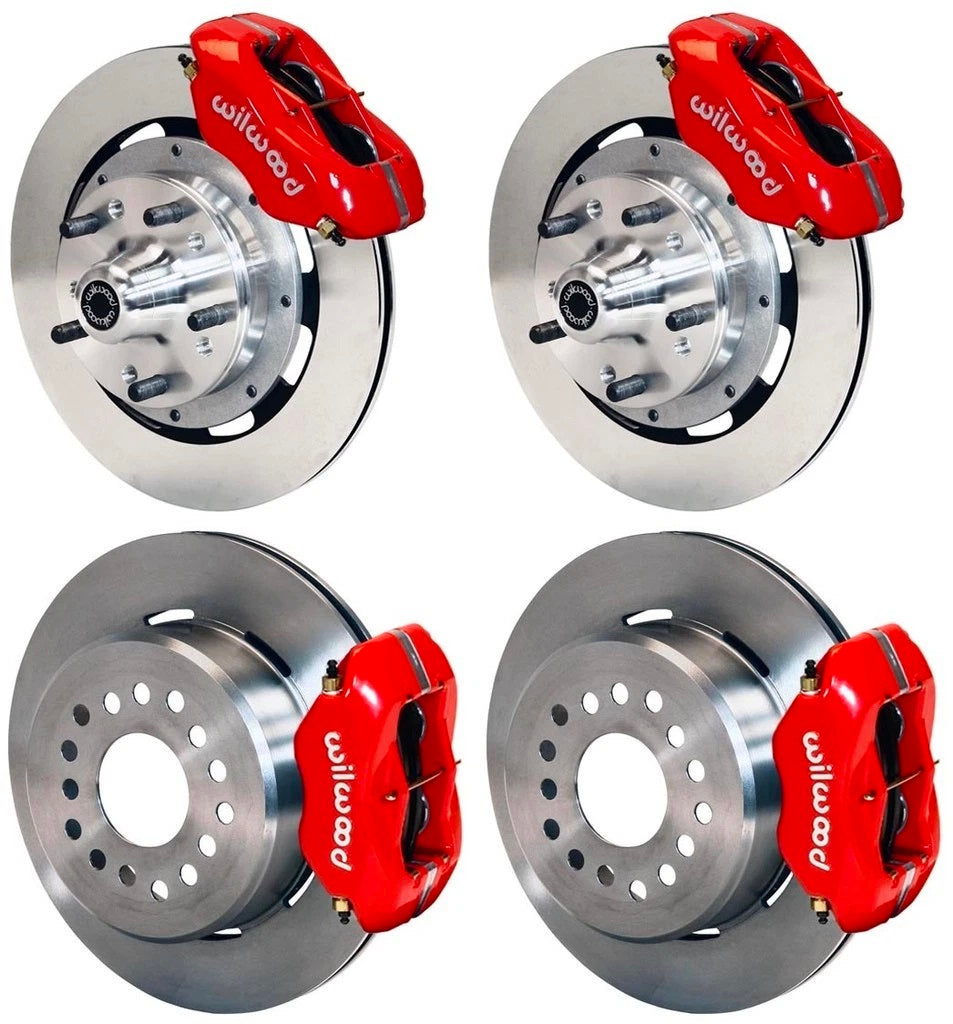

Brand New Wilwood Complete Big Brake Front & Rear 12" Disc Brake Kit.

Complete Kit Includes:

• Forged Dynalite Bolt-On Front Hub & 12.19" Disc Brake Kit (Part #140-11074-R) for Both Front Wheels
• Forged Dynalite Bolt-On Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-9282-R) for Both Rear Wheels

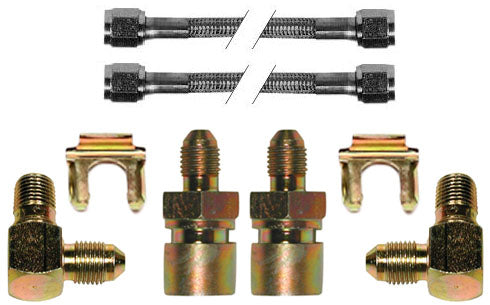

• Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

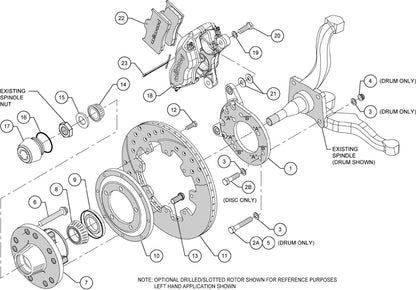

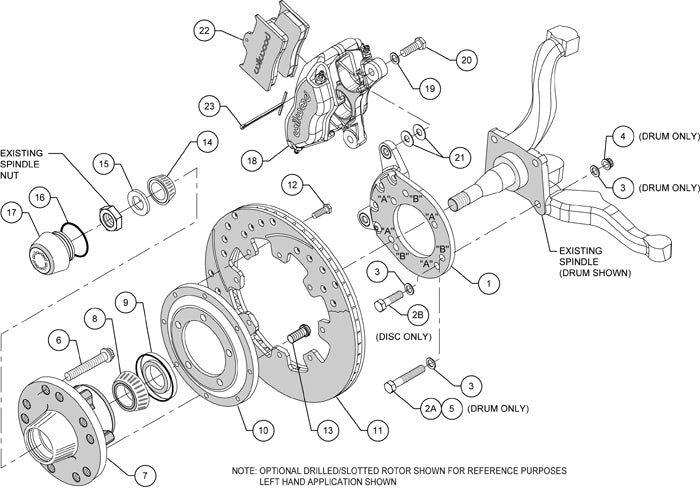

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• Ford:
  • 1969 Mustang, Boss 302/429 ONLY***
  • 1970-1973 Mustang, all***
  • 1970 Fairlane, all***
  • 1971 Fairlane with Disc Brake spindles***
  • 1970 Falcon with Disc Brake spindles***
  • 1970 Falcon with Drum Brake spindles (from 8/25/69 through 12/31/69)***
  • 1970 Maverick with Drum Brake spindles (from 8/25/69 through 12/31/69)***
  • 1971-1974 Maverick with Drum Brake spindles***
  • 1970 Ranchero, all***
  • 1971 Ranchero with Disc Brake spindles***
  • 1970-1971 Torino, all***
• Mercury:
  • 1970-1971 Comet, all***
  • 1972-1973 Comet with Drum Brake spindles***
  • 1970-1972 Cougar, all***
  • 1973 Cougar with Disc Brake Spindles***
  • 1970 Cyclone, all***
  • 1970-1971 Montego, all***

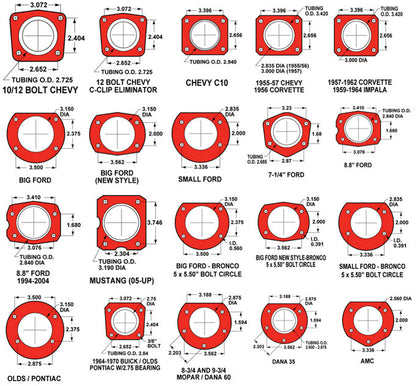

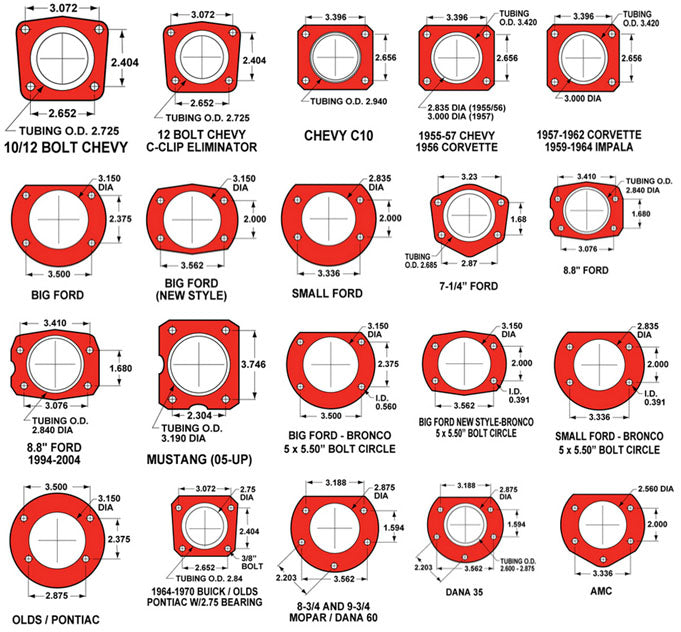

• ***The rear kit fits Rear Ends with Small Bearing Ford Axle Flanges (3.336" x 2.000" Mounting Pattern) & with a 2.50" Axle Flange offset (see diagrams at the very bottom).  Approximately 90% of all these vehicles will have that particular rear end with that offset.  However, there are some that don't, so it is always better to measure your axle flange and axle flange offset to be sure your Ford or Mercury has this rear end.***

For the Front, FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars. Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. These kits can be used with either manual or power boost master cylinders.

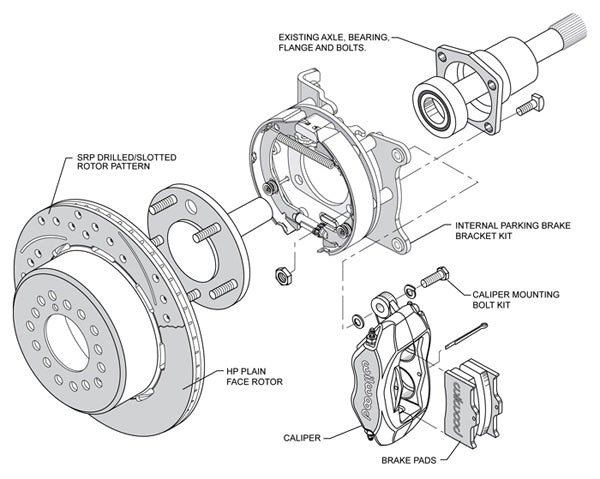

For the Rear, FDL Pro Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite 4-Piston calipers, 12.19" o.d. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits are the perfect compliment wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

These Brake kits require at least 16" diameter wheels.

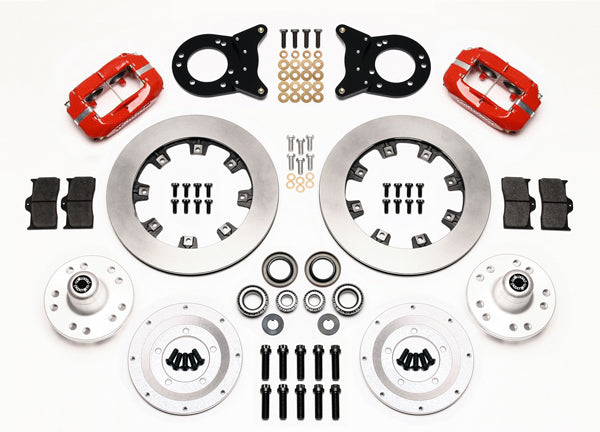

Front kit includes parts for both front wheels:

• .810" Thick x 12.19" O.D. Rotors
• Forged Dynalite Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hubs, Bearings, Seals, &
• All Hardware necessary to install the complete braking system on both front wheels

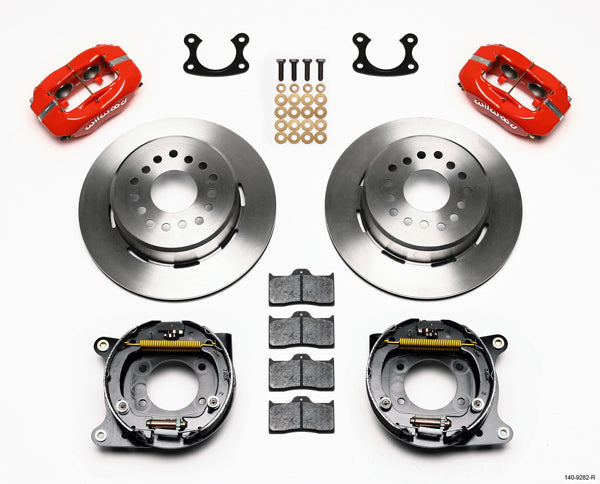

Rear kit includes parts for both rear wheels:

• .810" Thick x 12.19" O.D. Rotors with Hats
• Forged Dynalite Calipers - Red
• Drum Parking Brake Assemblies with Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads &
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 93 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
