70-73 MUSTANG KIT,FRONT,FDL,12",DRILLED

70-73 MUSTANG KIT,FRONT,FDL,12",DRILLED

WIL 140-11074D

$1,139.99
$1,139.99
View full details
  • WILWOOD FORGED DYNALITE PRO SERIES FRONT HUB KIT & 12.19" DISC BRAKE KIT FOR:
    FORD:
    *1969 MUSTANG (BOSS 302/429 ONLY) WITH DISC BRAKE SPINDLES
    *1970-1973 MUSTANG WITH DRUM OR DISC BRAKE SPINDLES
    *1970 FAIRLANE WITH DRUM OR DISC BRAKE SPINDLES
    *1971 FAIRLANE WITH DISC BRAKE SPINDLES
    *1970 FALCON WITH DISC BRAKE SPINDLES
    *1970 FALCON WITH DRUM BRAKE SPINDLES (FROM 8/25/1969 THROUGH 12/31/1969)
    *1970-1974 MAVERICK WITH DRUM BRAKE SPINDLES (FROM 8/25/1969 THROUGH 12/31/1974)
    *1970 RANCHERO WITH DRUM OR DISC BRAKE SPINDLES
    *1971 RANCHERO WITH DISC BRAKE SPINDLES
    *1970-1971 TORINO WITH DRUM OR DISC BRAKE SPINDLES
    MERCURY:
    *1970-1971 COMET WITH DRUM OR DISC BRAKE SPINDLES
    *1972-1973 COMET WITH DISC BRAKE SPINDLES
    *1970-1971 COUGAR WITH DRUM OR DISC BRAKE SPINDLES
    *1972-1973 COUGAR WITH DISC BRAKE SPINDLES
    *1970 CYCLONE WITH DRUM OR DISC BRAKE SPINDLES
    *1970-1971 MONTEGO WITH DRUM OR DISC BRAKE SPINDLES

  • FEATURING DRILLED & SLOTTED ROTORS, AS WELL AS BLACK CALIPERS

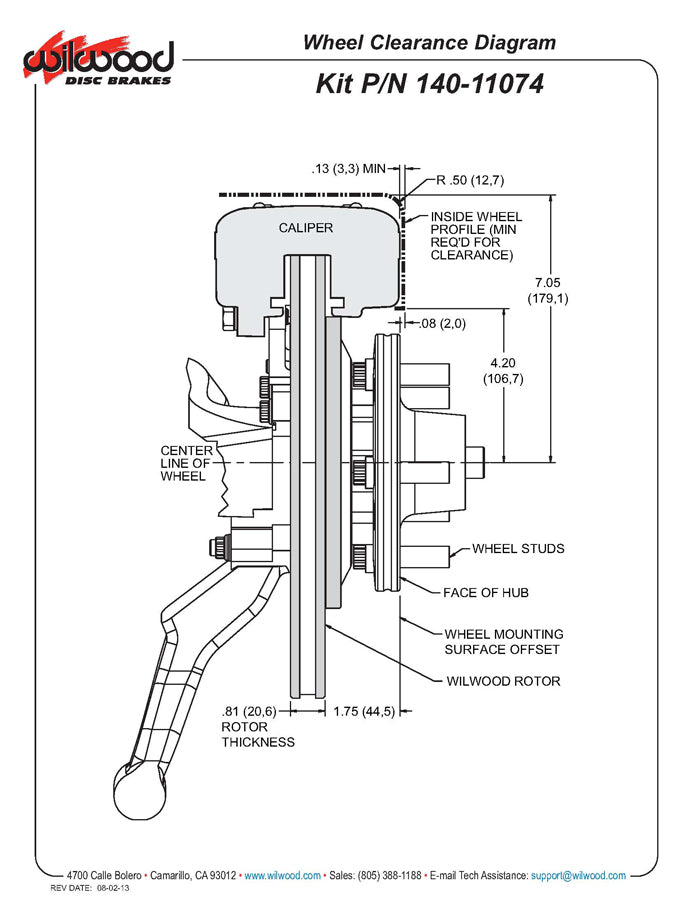

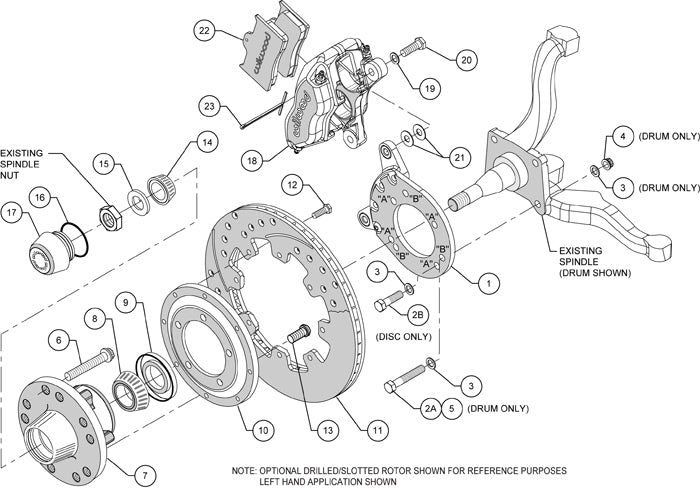

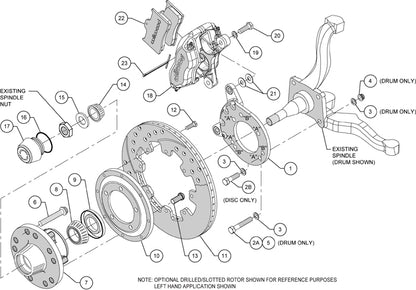

  • ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • FDL PRO-SERIES FRONT HUB KITS OFFER COMPLETE DISC BRAKE UPGRADE SOLUTIONS FOR TRADITIONAL NON-ABS SPINDLE APPLICATIONS ON AMERICAN MUSCLE CARS, VINTAGE RODS, & HEAVYWEIGHT DRAG CARS
  • BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING NEEDS OF ALMOST ANY APPLICATION

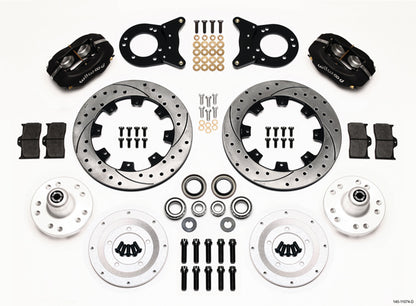

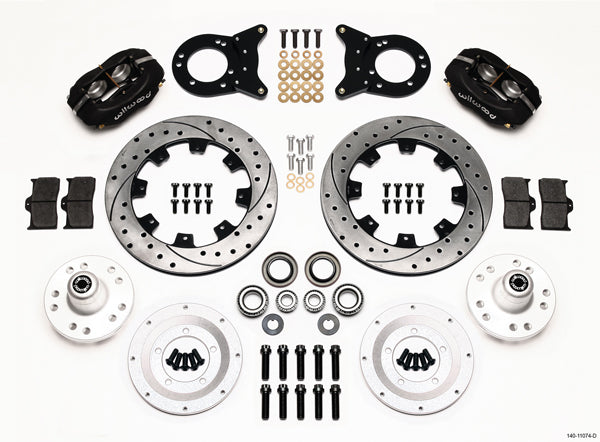

  • KIT INCLUDES:
    *DRILLED & SLOTTED, .810" THICK x 12.19" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS, *BEARINGS, *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

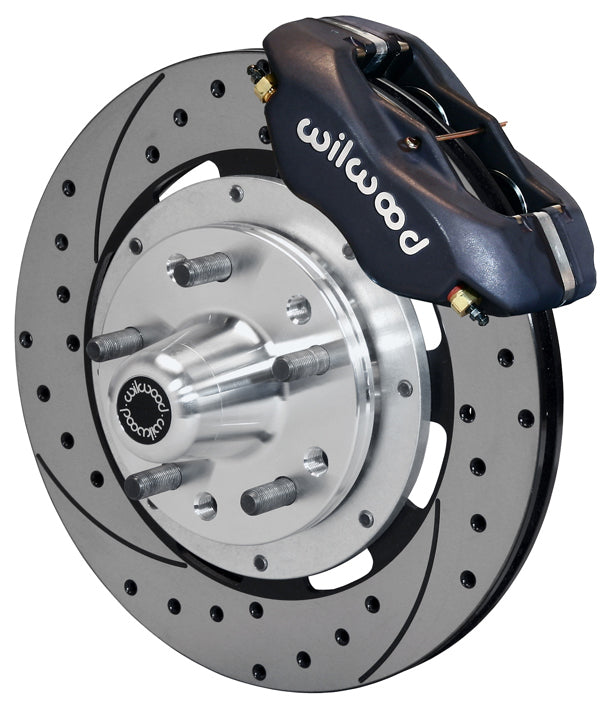

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Ford Kits > Mustang Front Kits, 1970-1973
