65-69 MUSTANG KIT,FRONT,FDL,12.19",RED

65-69 MUSTANG KIT,FRONT,FDL,12.19",RED

WIL 140-11072R

$1,009.99
$1,009.99
View full details
  • WILWOOD FORGED DYNALITE PRO SERIES FRONT HUB KIT & 12.19" DISC BRAKE KIT FOR:
    FORD:
    *1965-1969 MUSTANG WITH DRUM OR DISC BRAKE SPINDLES
    *1970 MUSTANG WITH DISC BRAKE SPINDLES (GT350 & 500 ONLY)
    *1966-1969 FAIRLANE WITH DRUM OR DISC BRAKE SPINDLES
    *1965-1969 FALCON WITH DRUM OR DISC BRAKE SPINDLES
    *1970 FALCON WITH DRUM BRAKE SPINDLES (THROUGH 8/24/1969 ONLY)
    *1970 MAVERICK WITH DRUM BRAKE SPINDLES (THROUGH 8/24/1969 ONLY)
    *1965 RANCHERO WITH DRUM OR DISC BRAKE SPINDLES
    *1968-1969 TORINO WITH DRUM OR DISC BRAKE SPINDLES
    MERCURY:
    *1965-1969 COMET WITH DRUM OR DISC BRAKE SPINDLES
    *1967-1969 COUGAR WITH DRUM OR DISC BRAKE SPINDLES
    *1967-1969 CYCLONE WITH DRUM OR DISC BRAKE SPINDLES
    *1968-1969 MONTEGO WITH DRUM OR DISC BRAKE SPINDLES

  • FEATURING RED CALIPERS

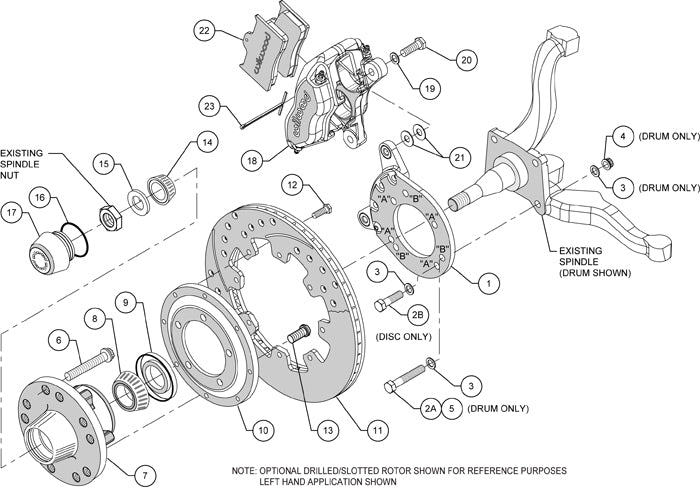

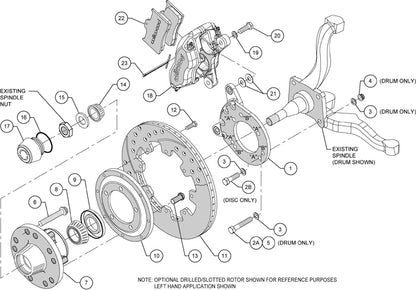

  • ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • FDL PRO-SERIES FRONT HUB KITS OFFER COMPLETE DISC BRAKE UPGRADE SOLUTIONS FOR TRADITIONAL NON-ABS SPINDLE APPLICATIONS ON AMERICAN MUSCLE CARS, VINTAGE RODS, & HEAVYWEIGHT DRAG CARS
  • BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING NEEDS OF ALMOST ANY APPLICATION

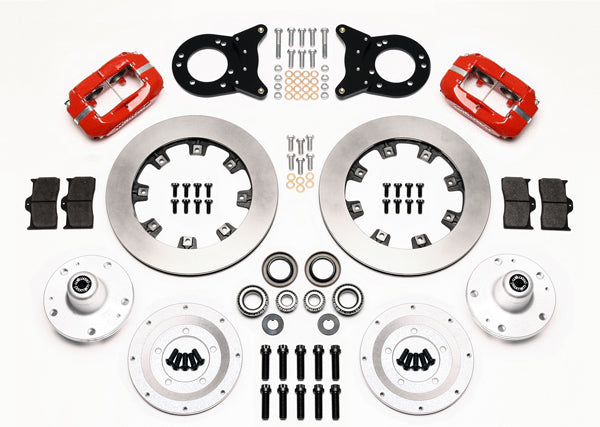

  • KIT INCLUDES:
    *.810" THICK x 12.19" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS, *BEARINGS, *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

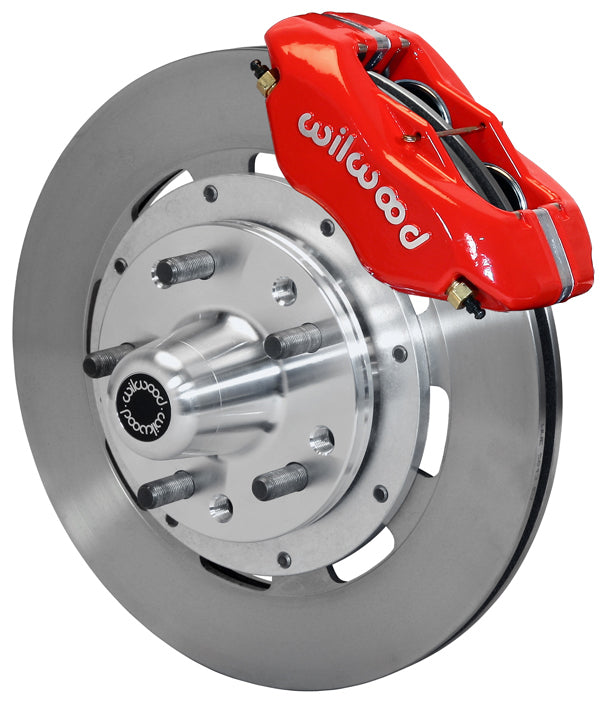

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Ford Kits > Mustang Front Kits, 1965-1969
