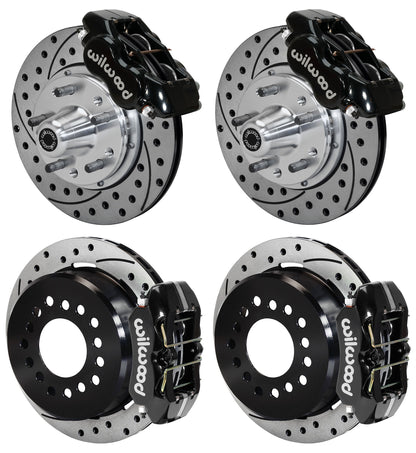

65-69 FORD,MERCURY FULL DISC BRAKE KIT,11" DRILLED ROTORS,BLACK CALIPERS

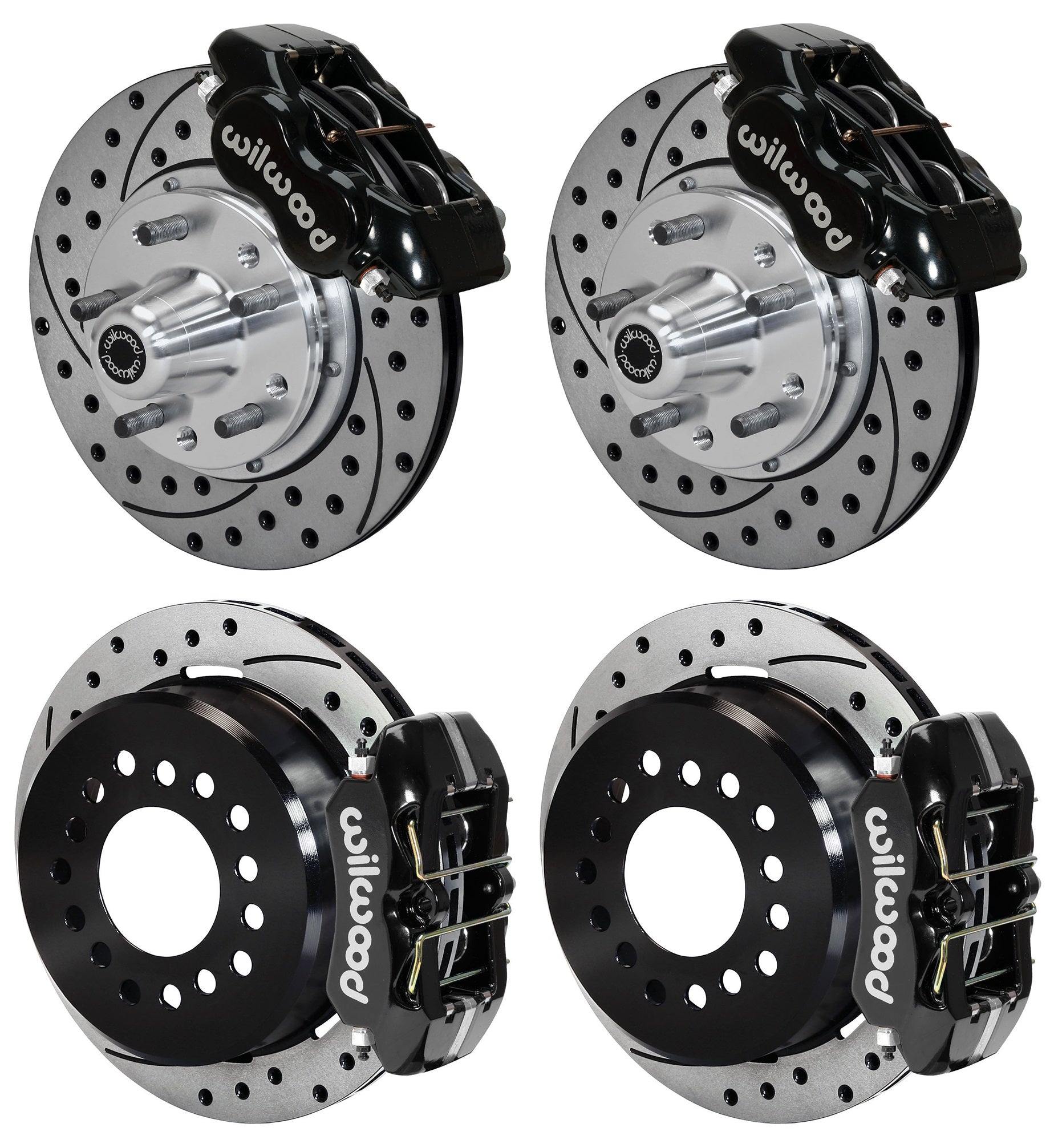

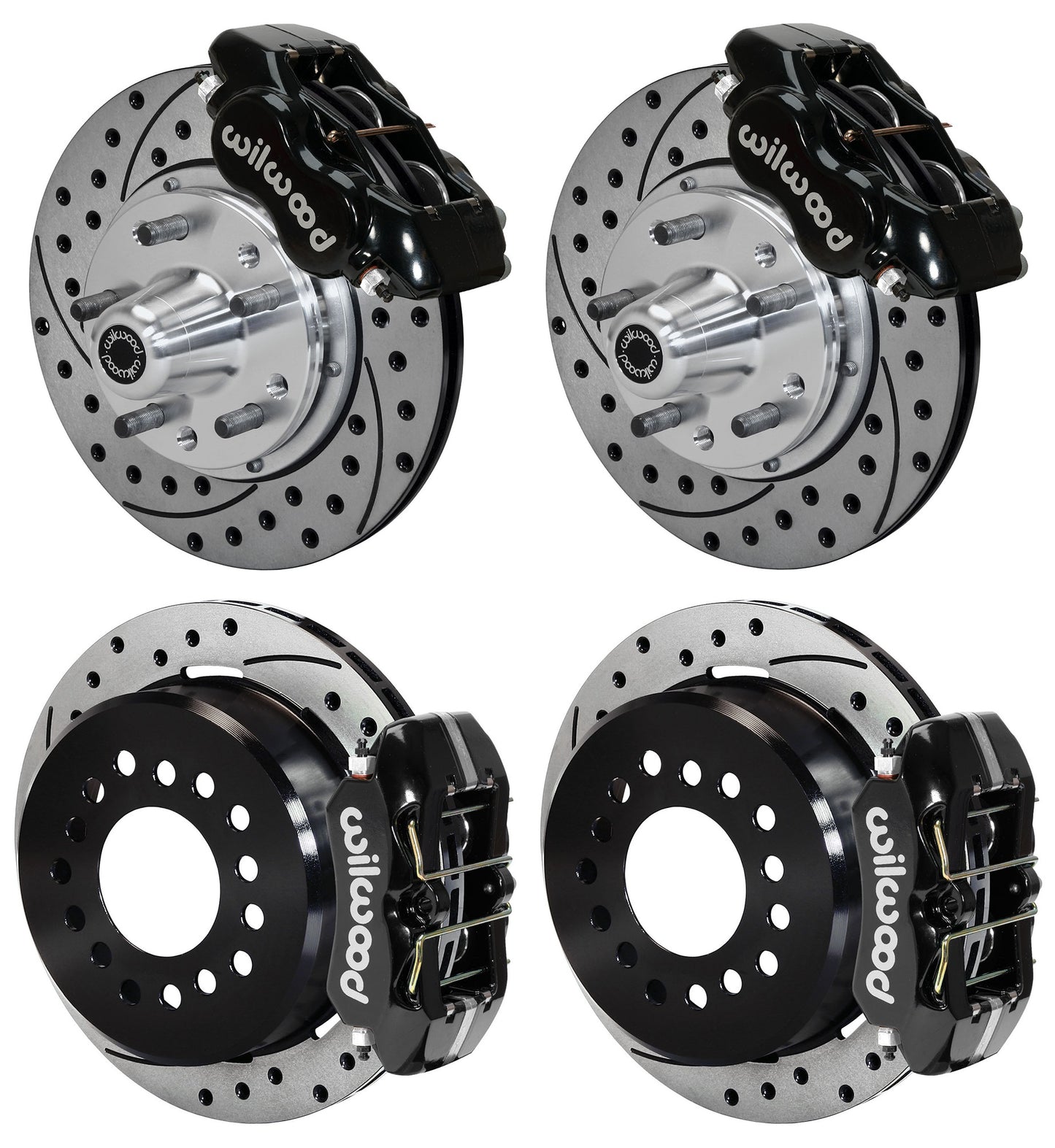

Brand New Wilwood Complete Pro Series Front & Rear 11" Disc Brake Kit.

Complete Kit Includes:

• Forged Dynalite Pro Series Bolt-On Front Hub & 11" Disc Brake Kit (Part #140-11071-D) for Both Front Wheels
• Low-Profile Dynapro Bolt-On Rear Hat & 11" Disc Brake Kit with Parking Brake (Part #140-11403-D) for Both Rear Wheels

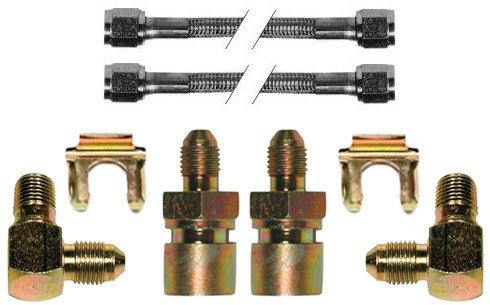

• Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

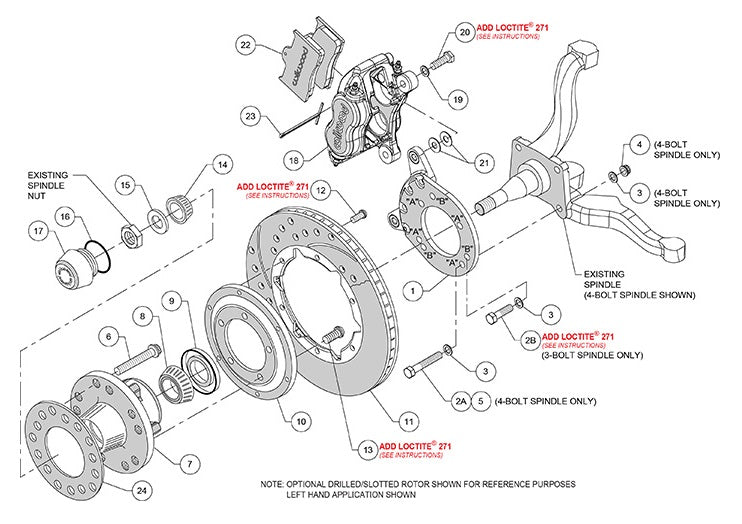

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• Ford:
  • 1965-1966 Mustang with V-8 Spindles***
  • 1967-1969 Mustang, all***
  • 1970 Mustang, GT350 & 500 ONLY***
  • 1966-1969 Fairlane, all***
  • 1965 Falcon with V-8 Spindles***
  • 1966-1969 Falcon, all***
  • 1970 Falcon with Drum Brake Spindles (through 8/24/1969 only)***
  • 1970 Maverick with Drum Brake Spindles (through 8/24/1969 only)***
  • 1965 Ranchero with V-8 Spindles***
  • 1966-1969 Ranchero, all***
  • 1968-1969 Torino, all***
• Mercury:
  • 1965 Comet with V-8 Spindles***
  • 1966-1969 Comet, all***
  • 1967-1969 Cougar, all***
  • 1967-1969 Cyclone, all***
  • 1968-1969 Montego, all***

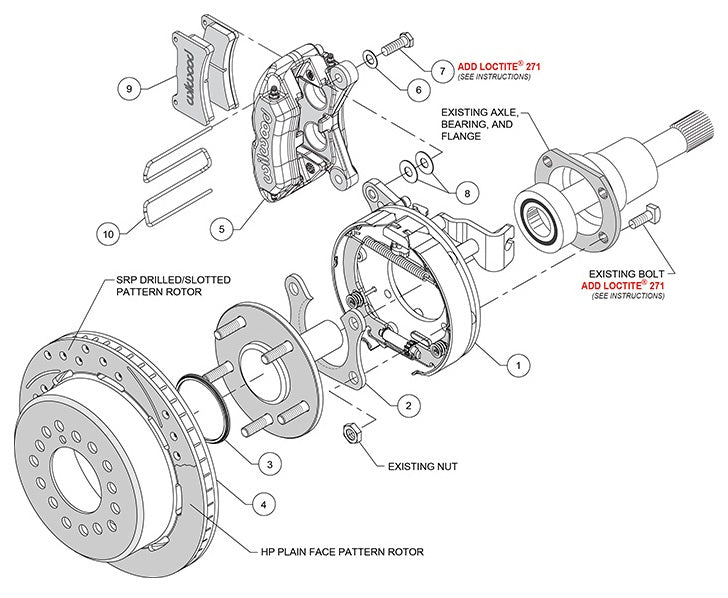

• ***The rear kit fits Rear Ends with Small Bearing Ford Axle Flanges (3.336" x 2.000" Mounting Pattern) & with a 2.50" Axle Flange offset (see diagrams at the very bottom).  Approximately 90% of all these vehicles will have that particular rear end with that offset.  However, there are some that don't, so it is always better to measure your axle flange and axle flange offset to be sure your Ford or Mercury has this rear end.***

For the Front, FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars.  Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast.  These kits can be used with either manual or power boost master cylinders.

For the Rear, Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits are the perfect compliment wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

These Brake kits require at least 15" diameter wheels.

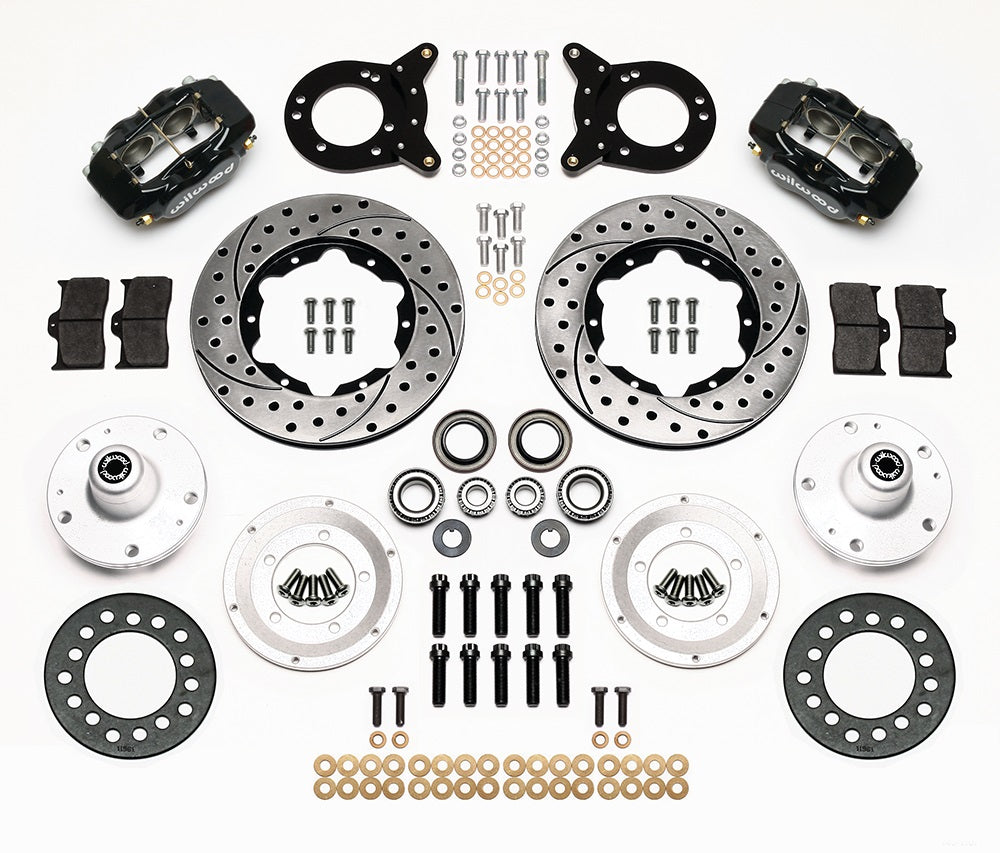

Front kit includes parts for both front wheels:

• Drilled & Slotted, .810" Thick x 11.00" O.D. Rotors
• Forged Dynalite Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hubs, Bearings, Seals, &
• All Hardware necessary to install the complete braking system on both front wheels

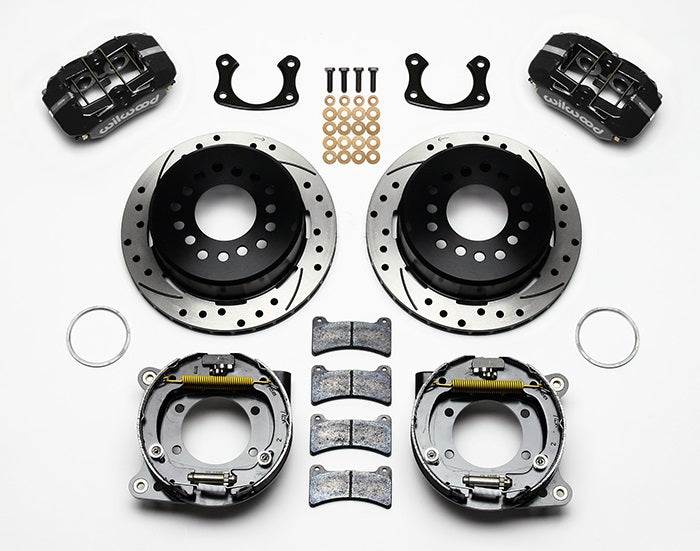

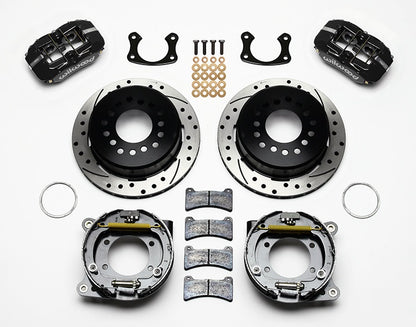

Rear kit includes parts for both rear wheels:

• Drilled & Slotted, .810" Thick x 11.00" O.D. Rotors with Hats
• Low-Profile Dynapro Calipers - Black
• Drum Parking Brake Assemblies with Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 84 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
