62-72 CDP A 9" DRUM,FRONT,11",DRILLED,POLISH

62-72 CDP A 9" DRUM,FRONT,11",DRILLED,POLISH

WIL 140-11022DP

$1,169.99
$1,169.99
View full details

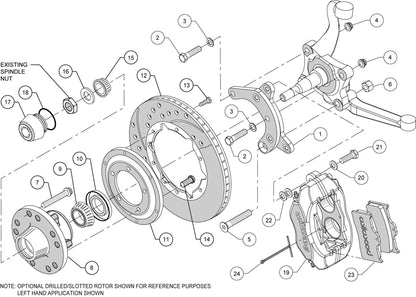

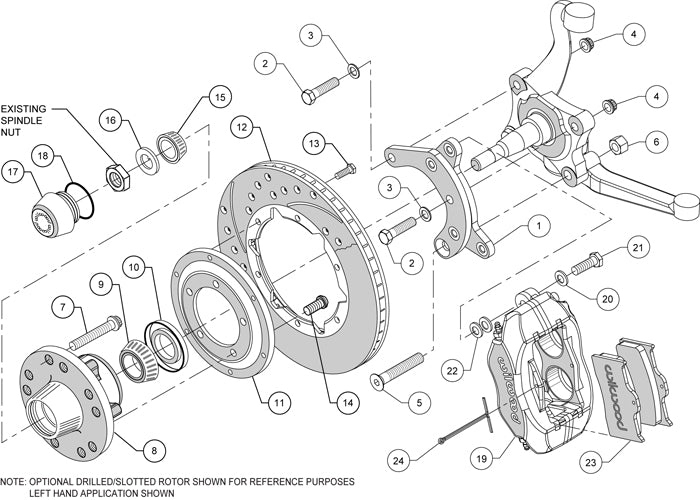

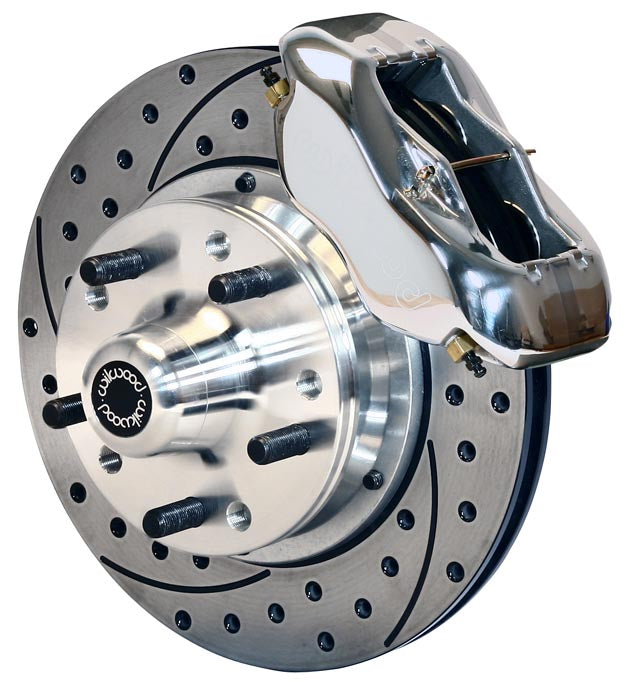

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD LIMITED-OFFSET FORGED DYNALITE PRO SERIES BOLT-ON FRONT HUB & 11.00" DISC BRAKE KIT FOR:
    DODGE:
    -1961-1972 DODGE A-BODY WITH 9" DRUM BRAKE SPINDLES*
    -1961-1972 DODGE DART WITH 9" DRUM BRAKE SPINDLES*
    -1971-1972 DODGE DEMON WITH 9" DRUM BRAKE SPINDLES*
    -1961-1962 DODGE LANCER WITH 9" DRUM BRAKE SPINDLES*
    PLYMOUTH:
    -1960-1972 PLYMOUTH A-BODY WITH 9" DRUM BRAKE SPINDLES*
    -1964-1969 PLYMOUTH BARRACUDA WITH 9" DRUM BRAKE SPINDLES*
    -1970-1972 PLYMOUTH DUSTER WITH 9" DRUM BRAKE SPINDLES*
    -1960-1972 PLYMOUTH VALIANT WITH 9" DRUM BRAKE SPINDLES*

  • FEATURING DRILLED & SLOTTED ROTORS AND POLISHED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • THEY ARE DESIGNED SPECIFICALLY TO KEEP THE TRACK WIDTH AS CLOSE TO THE FACTORY POSITION AS POSSIBLE.
  • THIS KIT ONLY WIDENS IT BY 0.08".
  • BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS & STYLE PREFERENCES FOR A DAILY DRIVER, SERIOUS COMPETITION, OR THE MOST DISCRIMINATING SHOW ENTHUSIASTS
  • MOST KITS REQUIRE NO MODIFICATION FOR INSTALLATION
  • THESE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS
  • THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

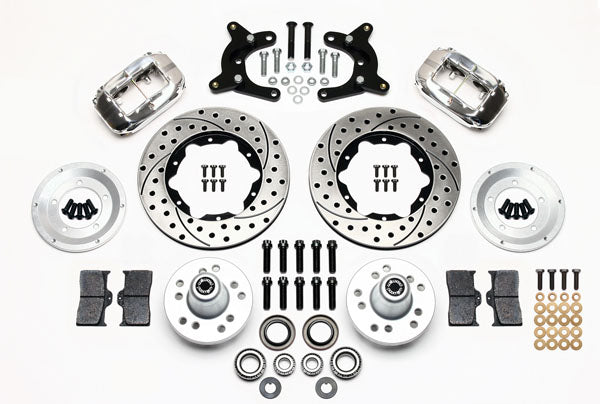

  • KIT INCLUDES:
    *DRILLED & SLOTTED, .810" THICK X 11.00" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - POLISHED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS,
    *BEARINGS,
    *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 40 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Dodge Kits > CDP A-Body Front Kits, 1962-1972
