70-72 CDP B&E DRUM,DODGE,PLYMOUTH,11,RED

70-72 CDP B&E DRUM,DODGE,PLYMOUTH,11,RED

WIL 140-11021R

$969.99
$969.99
View full details

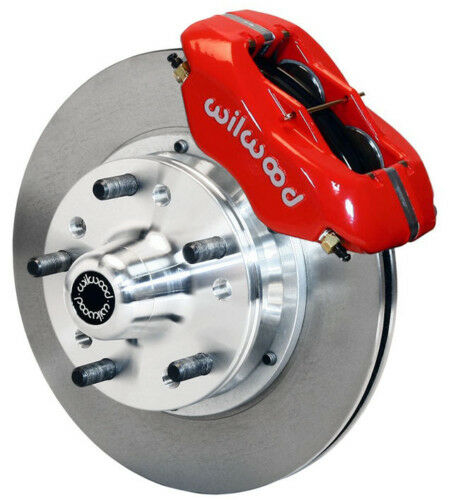

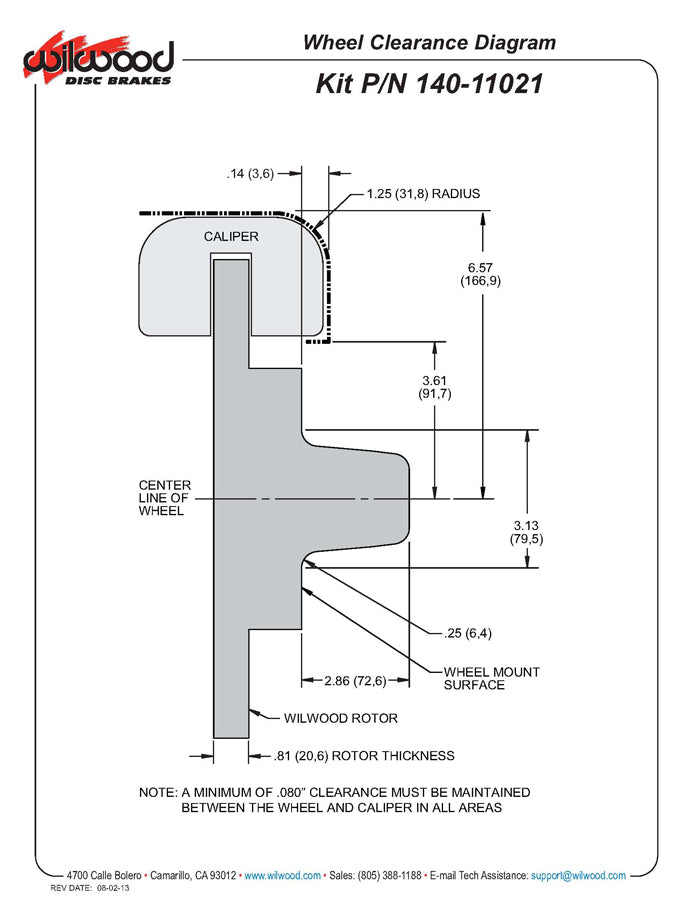

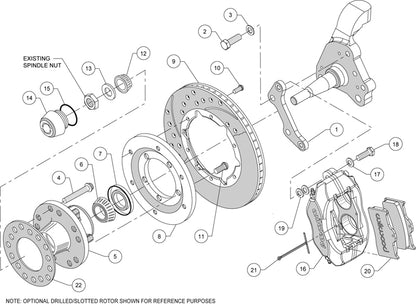

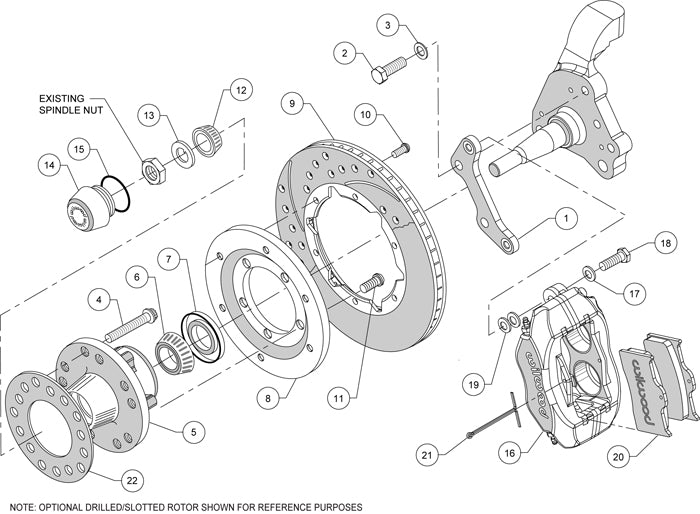

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD LIMITED-OFFSET FORGED DYNALITE PRO SERIES BOLT-ON FRONT HUB & 11.00" DISC BRAKE KIT FOR:
    DODGE:
    -1970-1972 DODGE B-BODY WITH DISC BRAKE SPINDLES*
    -1970-1972 DODGE CHALLENGER WITH DISC BRAKE SPINDLES*
    -1970-1972 DODGE CHARGER WITH DISC BRAKE SPINDLES*
    -1970-1972 DODGE CORONET WITH DISC BRAKE SPINDLES*
    -1970-1972 DODGE E-BODY WITH DISC BRAKE SPINDLES*
    -1970-1971 DODGE SUPER BEE WITH DISC BRAKE SPINDLES*
    PLYMOUTH:
    -1970-1972 PLYMOUTH BARRACUDA WITH DISC BRAKE SPINDLES*
    -1970-1972 PLYMOUTH B-BODY WITH DISC BRAKE SPINDLES*
    -1970 PLYMOUTH BELVEDERE WITH DISC BRAKE SPINDLES*
    -1970-1972 PLYMOUTH E-BODY WITH DISC BRAKE SPINDLES*
    -1970-1972 PLYMOUTH GTX WITH DISC BRAKE SPINDLES*
    -1970-1972 PLYMOUTH ROAD RUNNER WITH DISC BRAKE SPINDLES*
    -1970-1972 PLYMOUTH SATELLITE WITH DISC BRAKE SPINDLES*

  • FEATURING STANDARD ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • WILWOODS LIMITED-OFFSET FDL PRO SERIES FRONT HUB KITS OFFER COMPLETE DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM SPINDLES ON AMERICAN MUSCLE CARS, VINTAGE RODS, & HEAVYWEIGHT DRAG CARS.
  • THEY ARE DESIGNED SPECIFICALLY TO KEEP THE TRACK WIDTH AS CLOSE TO THE FACTORY POSITION AS POSSIBLE.
  • THIS KIT ONLY WIDENS IT BY 0.05".
  • BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS & STYLE PREFERENCES FOR A DAILY DRIVER, SERIOUS COMPETITION, OR THE MOST DISCRIMINATING SHOW ENTHUSIASTS
  • MOST KITS REQUIRE NO MODIFICATION FOR INSTALLATION
  • THESE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS
  • THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

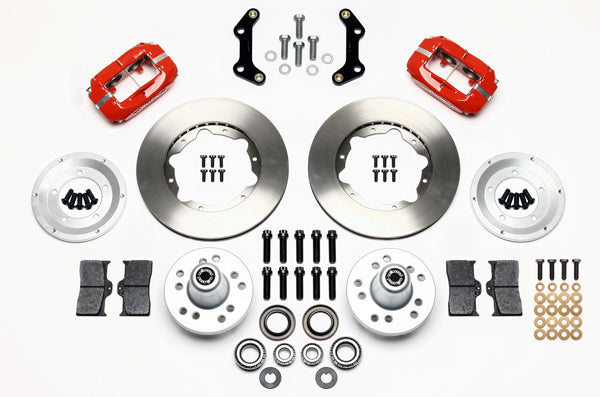

  • KIT INCLUDES:
    *STANDARD, .810" THICK X 11.00" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS,
    *BEARINGS,
    *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 40 LBS.

  • COMPLETE KIT WEIGHS APPROXIMATELY 40 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Dodge Kits > CDP B/E-Body Front Kits, 1962-1972
