74-80 PINTO KIT,FRONT,11",DRILLED,POLISH

74-80 PINTO KIT,FRONT,11",DRILLED,POLISH

WIL 140-11017DP

$1,269.99
$1,269.99
View full details

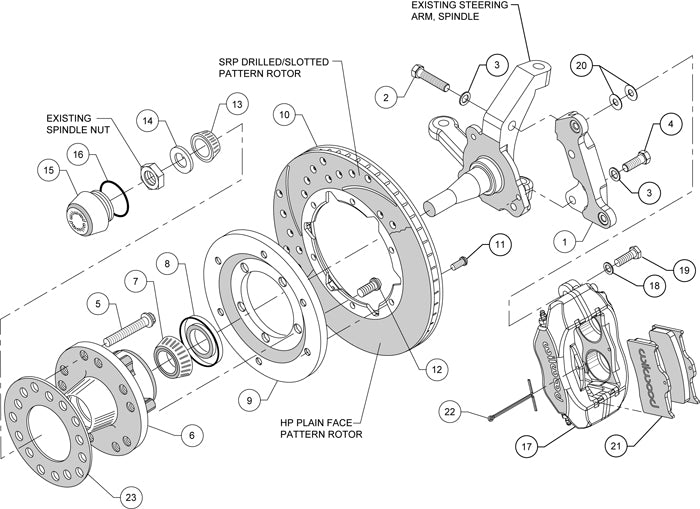

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD FORGED DYNALITE PRO SERIES FRONT HUB KIT & 11.00" DISC BRAKE KIT FOR:
    FORD:
    *1971-1980 PINTO WITH DISC BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)
    *1971-1973 PINTO WITH DRUM BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)
    *1974-1978 MUSTANG II WITH DISC BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)
    MERCURY:
    *1975-1980 BOBCAT WITH DISC BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)

  • FEATURING DRILLED & SLOTTED ROTORS AND POLISHED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • FDL PRO-SERIES FRONT HUB KITS OFFER COMPLETE DISC BRAKE UPGRADE SOLUTIONS FOR TRADITIONAL NON-ABS SPINDLE APPLICATIONS ON AMERICAN MUSCLE CARS, VINTAGE RODS, & HEAVYWEIGHT DRAG CARS
  • BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS & STYLE PREFERENCES FOR A DAILY DRIVER, SERIOUS COMPETITION, OR THE MOST DISCRIMINATING SHOW ENTHURSIASTS
  • MOST KITS REQUIRE NO MODIFICATION FOR INSTALLATION
  • THESE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS

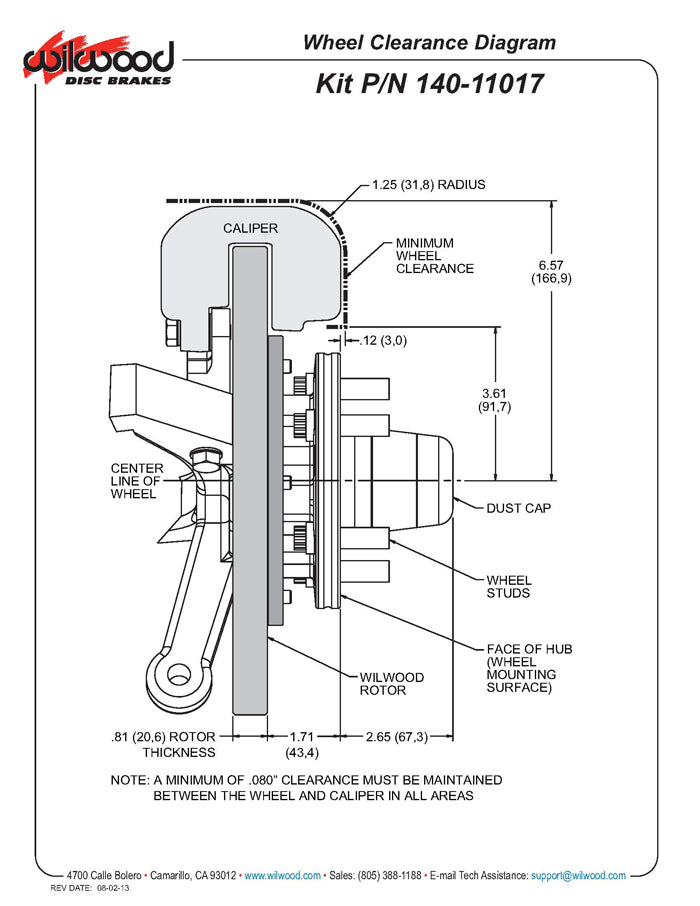

  • THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

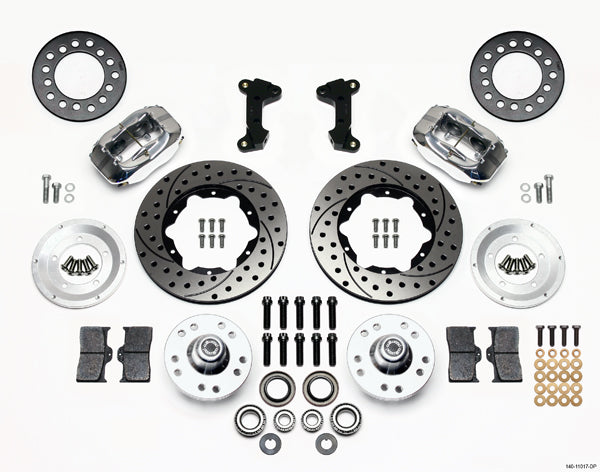

  • KIT INCLUDES:
    *DRILLED & SLOTTED, .810" THICK x 11.00" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - POLISHED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS, *BEARINGS, *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 39 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

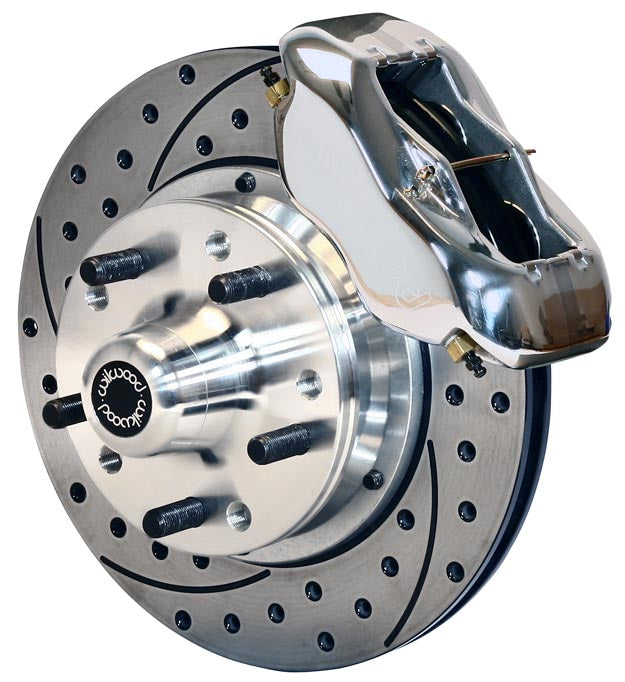

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Ford Kits > Pinto/Mustang II Front Kits, 1971-1980
