80-87 G BODY KIT,FRONT,FDL,.810,11",DRILLED

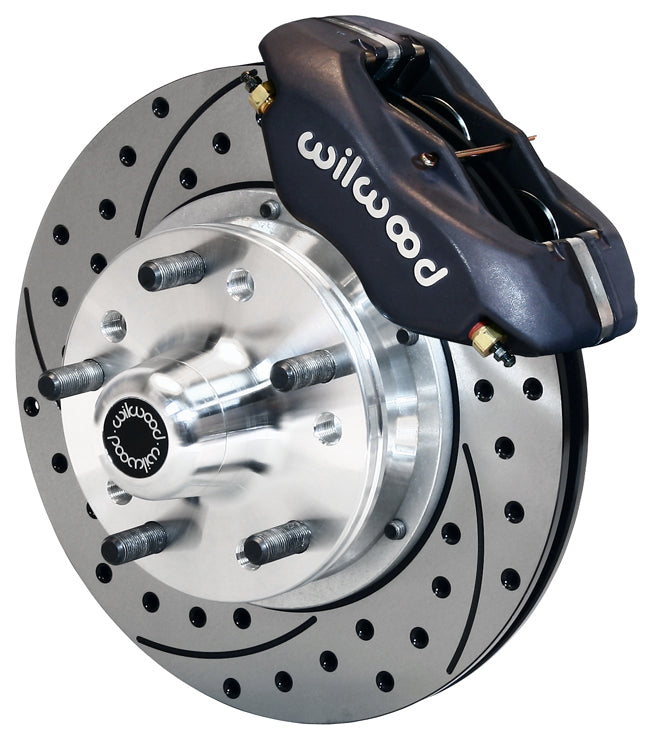

Brand New Wilwood Forged Dynalite Pro Series Bolt-On Front Hub & 11" Disc Brake Kit for Both Front Wheels on GM G Body Vehicles (Part #140-11009D).

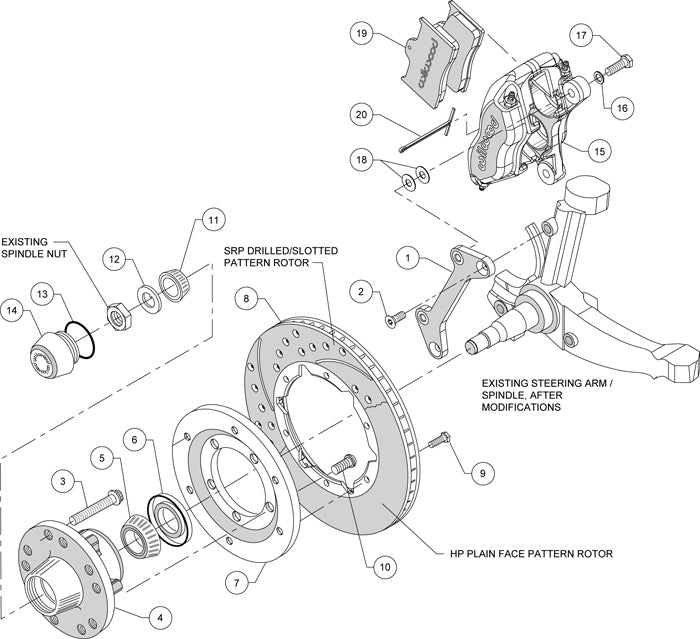

Only one side pictured.  See the list, the diagram, & the assembly booklet for a detail of the parts included.

Features Drilled & Slotted Rotors, as well as Black Calipers.

Fits:

• Chevrolet:
  • 1979-1987 El Camino
  • 1979-1987 Malibu
  • 1979-1988 Monte Carlo
  • 1983-1997 S10 Blazer 4x2
  • 1982 S10 Pickup
  • 1983-2002 S10 Pickup 4x2
• GMC:
  • 1983-1997 S15 Jimmy 4x2
  • 1982 S15 Pickup
  • 1983-2002 S15 Pickup 4x2
  • 1979-1987 Sprint
• Buick:
  • 1979-1981 Century
  • 1982-1987 Grand National
  • 1979-1987 Regal
• Isuzu:
• 1996-2000 Hombre 4x2
• Oldsmobile:
  • 1979-1981 Cutlass
  • 1979-1983 Cutlass Cruiser
  • 1982-1988 Cutlass Supreme RWD only
• Pontiac:
  • 1982-1987 Bonneville
  • 1979-1980 Grand Am
  • 1979-1987 Grand Prix
  • 1979-1983 Lemans

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars.  Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast.  Most kits require no modification for installation.  These kits can be used with either manual or power boost master cylinders.

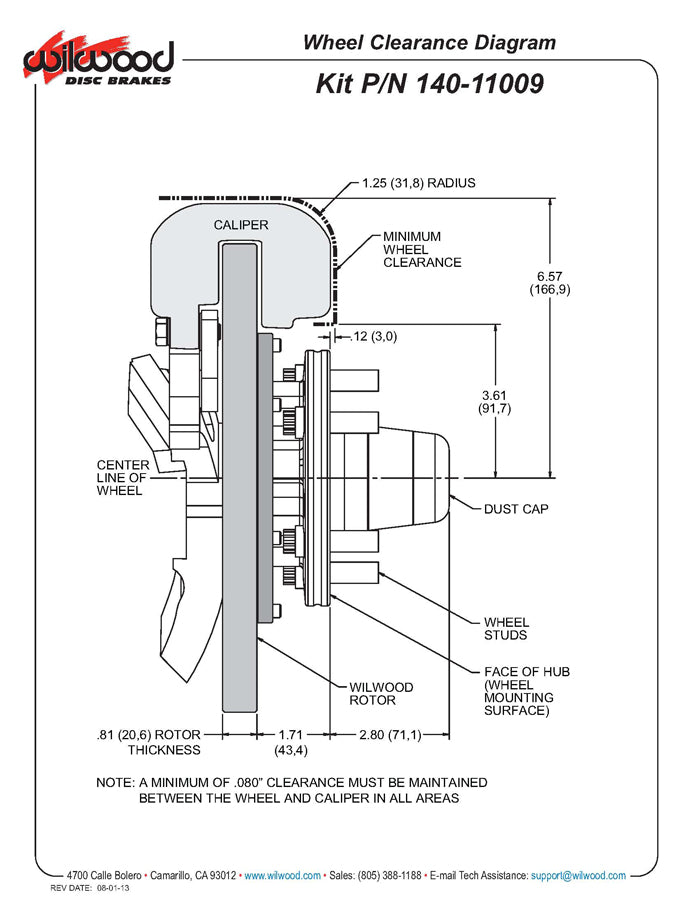

These brake kits require at least 15" diameter wheels.

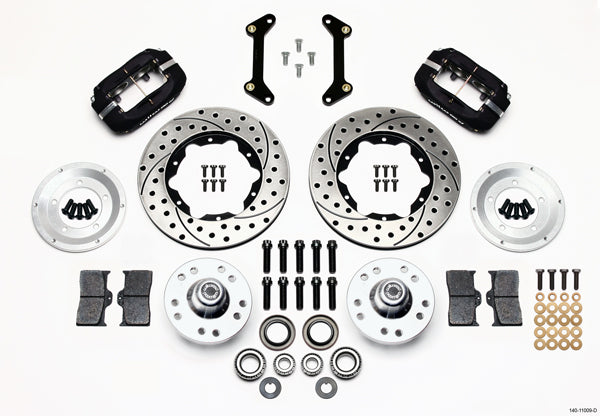

Kit includes parts for both front wheels:

• Drilled & Slotted, .810" Thick x 11" O.D. Rotors
• Forged Dynalite Calipers
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hubs
• Bearings
• Seals
• All Hardware necessary to install the complete braking system on both front wheels

Complete kit weighs approximately 40 lbs.

You can view and download the complete assembly instruction booklet for this kit here.
