67-69 GM F-BODY FRONT DISC BRAKE KIT & 2" DROP SPINDLES & ARMS,11" DRILLED,BLACK

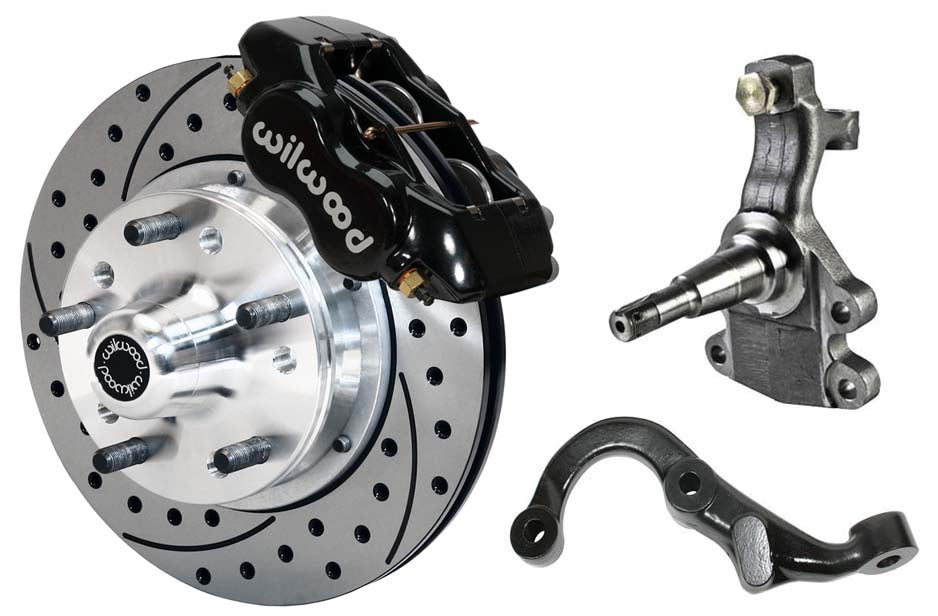

BRAND NEW WILWOOD FORGED DYNALITE FRONT 11" DISC BRAKE KIT (PART #140-10996-D) WITH 2" DROP SPINDLES (PART #103-9776), STEERING ARMS (PART #101-9646), AND STEEL BRAIDED LINE KIT (PART #293-8307)

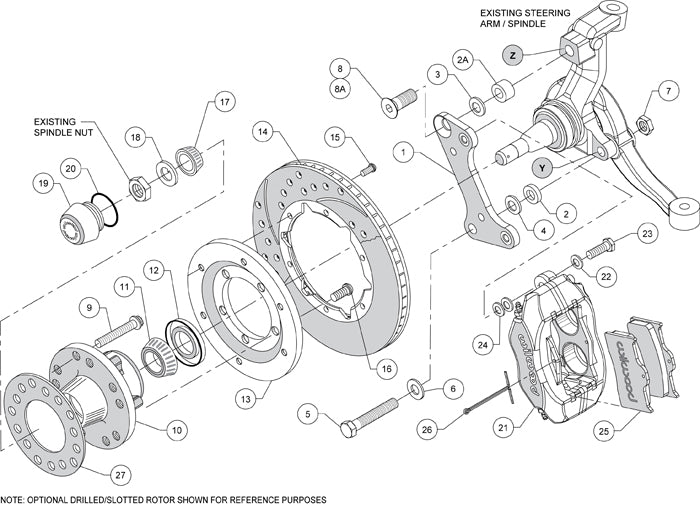

SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED WITH THIS BRAKE KIT.

FEATURES DRILLED & SLOTTED ROTORS AND POWDER-COATED BLACK CALIPERS.

FITS:

• 1967-1969 CHEVY CAMARO
• 1968-1974 CHEVY II / NOVA
• 1973-1974 BUICK APOLLO
• 1973-1974 OLDSMOBILE OMEGA
• 1967-1969 PONTIAC FIREBIRD
• 1971-1974 PONTIAC VENTURA

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOOD PRO SERIES FRONT BRAKE KITS PROVIDE THE ADDED ADVANTAGE OF PREMIUM BRAKE ROTORS, FORGED DYNALITE CALIPERS, 11" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS TO GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET/STRIP MACHINES.

INCLUDES SPINDLES THAT PROVIDE A FULL 2" DROP, WHILE NOT CHANGING THE STEERING GEOMETRY. THEY ARE 4140 STEEL, AND WILL ACCEPT STOCK BALL JOINTS

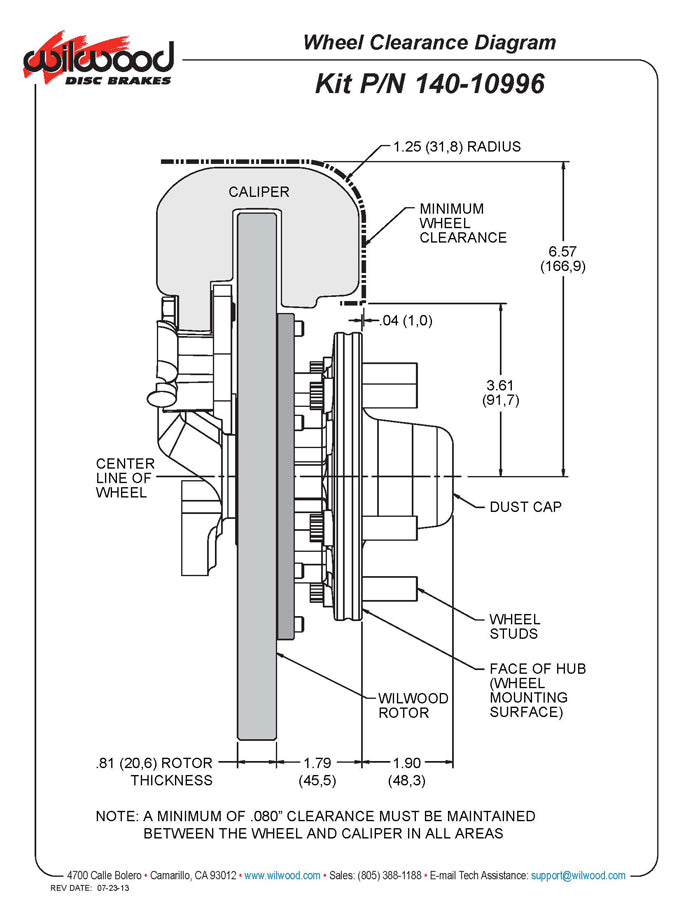

THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

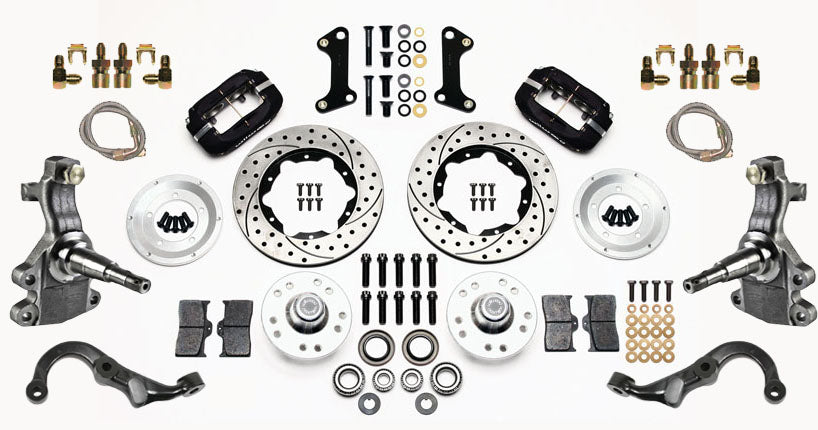

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 2" DROP SPINDLES
• STEERING ARMS
• STEEL BRAIDED LINE KIT WITH FITTINGS TO CONNECT TO THE WILWOOD CALIPERS AND TO THE STOCK HARD LINES
• DRILLED & SLOTTED, 0.81" THICK X 11" O.D. ROTORS
• FORGED DYNALITE 4 PISTON CALIPERS - POLISHED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HUBS
• ALL BEARINGS, RACES, SEALS, BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 60 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
