GM C-KIT W/STAG MOUNT,REAR,SL4R,13" DRILLED ROTORS,BLACK

Brand New Wilwood Forged Narrow Superlite 4R Big Brake Parking Brake Kit Featuring 12.88" Drilled Rotors with Black Calipers for for Both Rear Wheels (Part #140-10908-D).

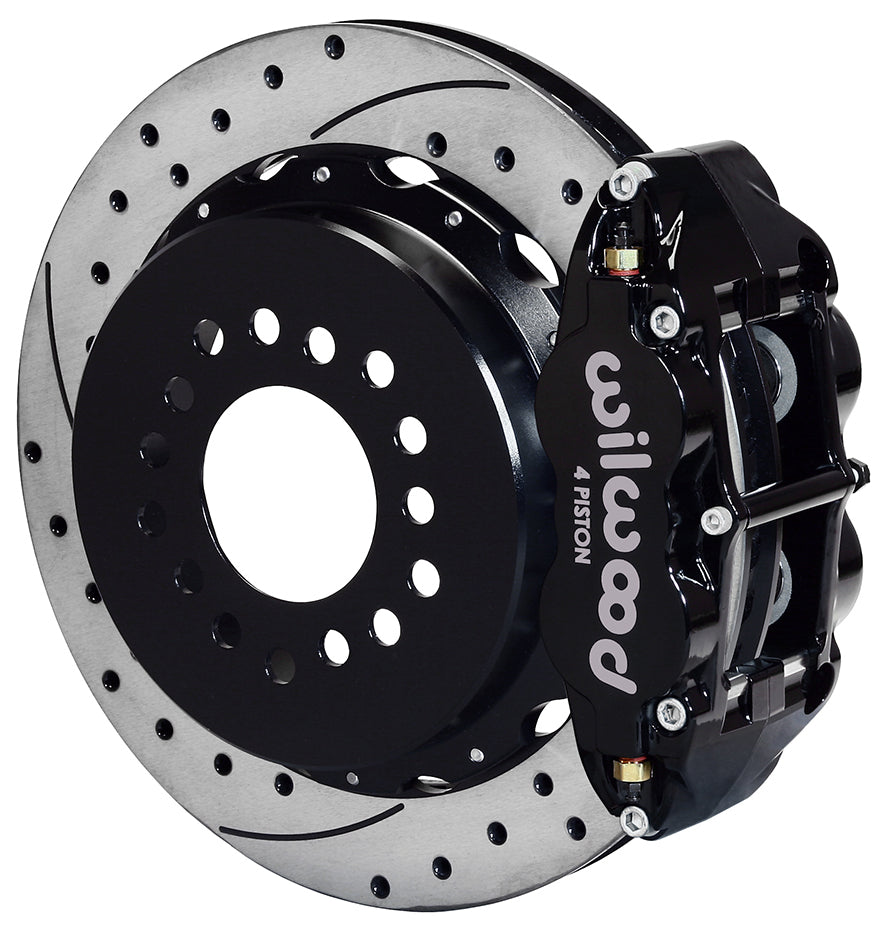

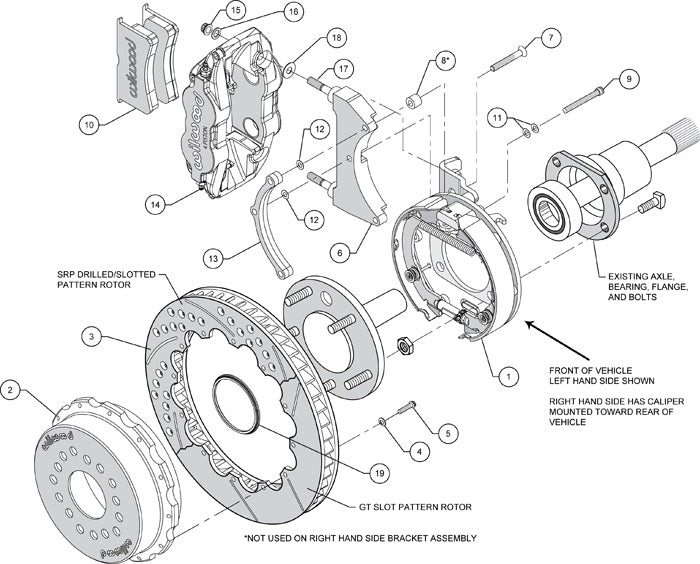

Only one side pictured. See the list, the diagram, the assembly booklet for the details of the parts included.

Fits:

• 10/12 Bolt Chevy C-Clip Axle with 2.81" Offset
• NOTE: For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications. Kit designed for staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is front mount.

Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

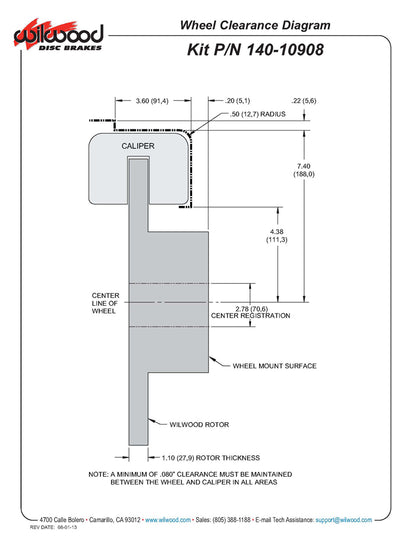

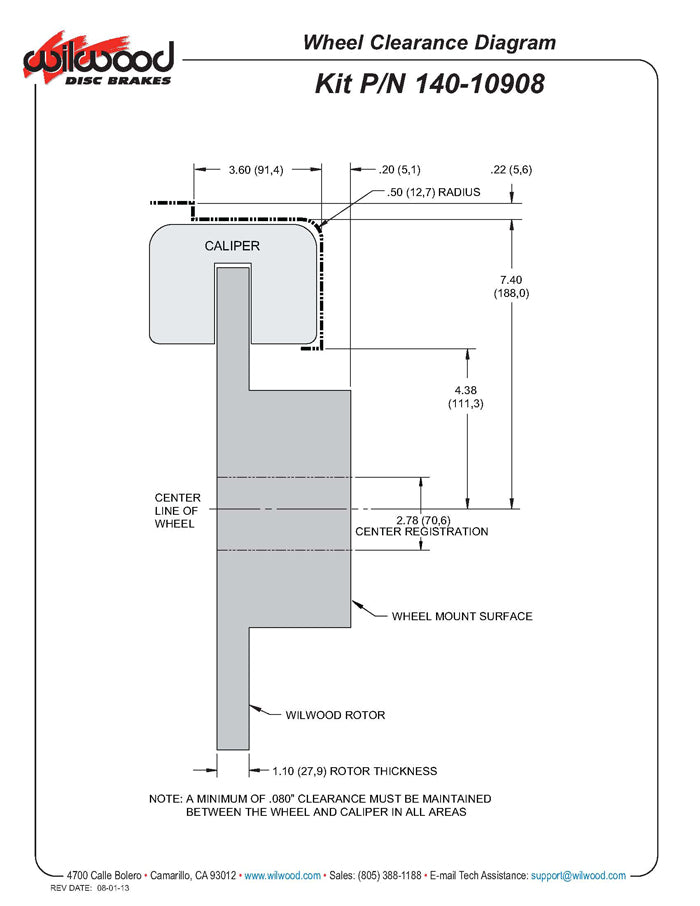

These brake kits require at least 17" diameter wheels.

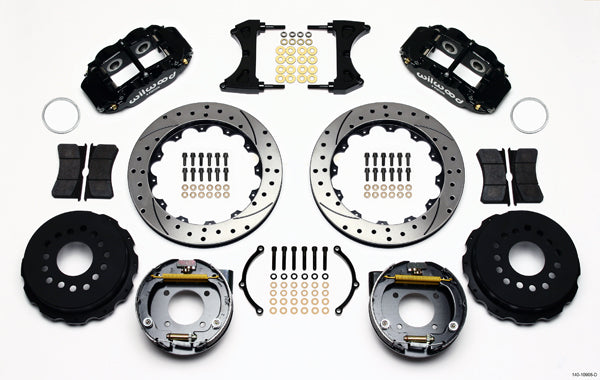

Kit includes parts for both rear wheels:

• Forged Narrow Superlite 4R 4 Piston Caliper
• 1.10" Thick x 12.88" O.D. Rotor
• BP-10 Brake Pads

• Parking Brake Hat
• All hardware necessary to install the complete braking system

Complete kit weighs approximately 67 lbs.

You can view and download the assembly/instruction booklet here.
