WWE PRO SPINDLE KIT,FRONT,DP6,12",DR,RED

WWE PRO SPINDLE KIT,FRONT,DP6,12",DR,RED

WIL 140-10741DR

$1,309.99
$1,309.99
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE 6 PISTON DYNAPRO BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT FOR BOTH FRONT WHEELS

    • .
  • THIS KIT FITS WILWOODS WWE PRO SPINDLES (#830-10832 STOCK HEIGHT OR #830-9807 2" DROP). WILWOODS PROSPINDLE IS SPECIFICALLY DESIGNED FOR USE IN FABRICATED A-ARM SUSPENSIONS ON KIT CARS, STREET RODS, DRAG CARS AND OTHER CUSTOM OR RACE APPLICATIONS THAT ARE CONFIGURED AROUND PINTO/MUSTANG LL SUSPENSION GEOMETRY. THOSE SPINDLES USE COMMON PINTO AND MUSTANG LL TIE ROD ENDS, BALL JOINTS, WHEEL BEARINGS AND SEALS. THIS BRAKE KIT IS ONLY DESIGNED FOR USE WITH THE WWE PRO SPINDLES. IT WONT FIT OTHER SPINDLES.

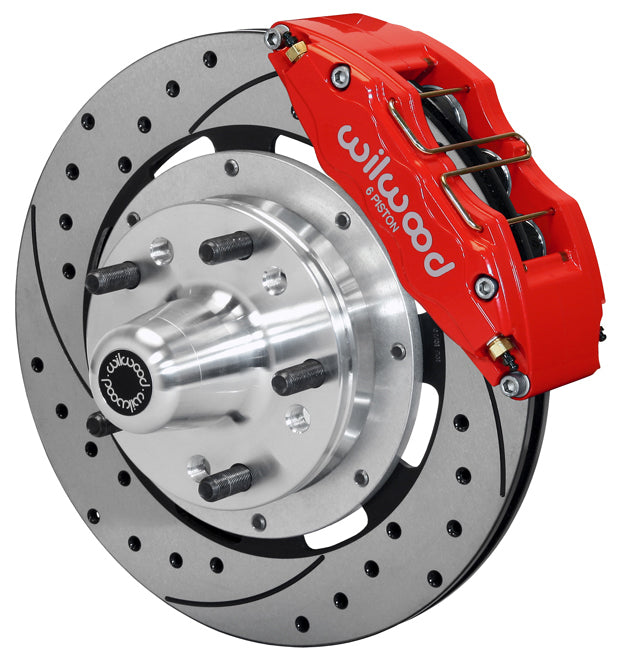

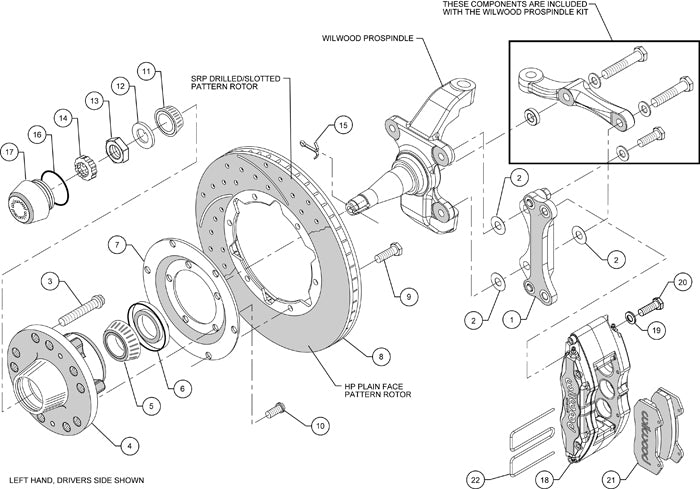

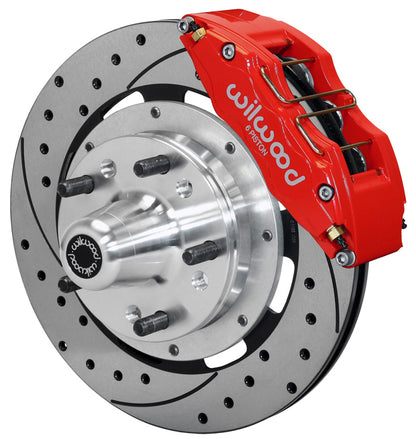

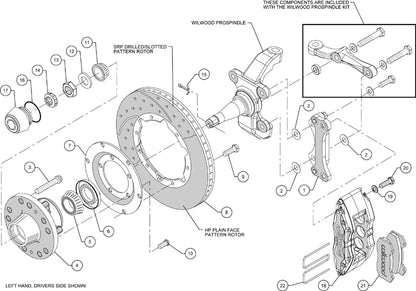

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED RED CALIPERS.

    • FITS:

    • VEHICLES EQUIPPED WITH WILWOOD WWE PRO-SPINDLES (#830-10832 STOCK HEIGHT OR #830-9807 2" DROP)

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • DYNAPRO 6 FORGED BILLET CALIPERS ARE COMBINED WITH 12.19" DIAMETER ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. THE ENHANCED BRAKE CAPACITY AND PAD PERFORMANCE OF THE SIX PISTON CALIPERS PROVIDE AN INTERMEDIATE LEVEL ALTERNATIVE TO THE BIGGER SIX PISTON KITS. THESE KITS COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE STREET / STRIP MACHINES.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

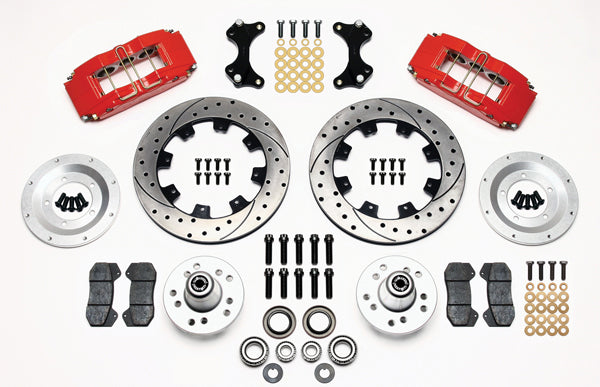

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • DRILLED & SLOTTED, .810" THICK X 12.19" O.D. ROTORS
    • DYNAPRO 6 PISTON CALIPERS - RED
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • HUBS
    • BEARINGS
    • SEALS
    • ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 46 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
