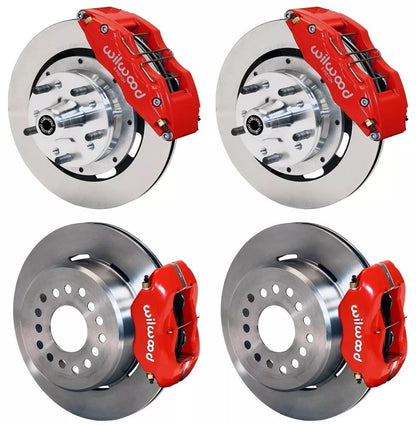

62-72 CDP B&E BODY W/DRUMS FULL DISC BRAKE KIT,12" ROTORS,6/4 PISTON RED

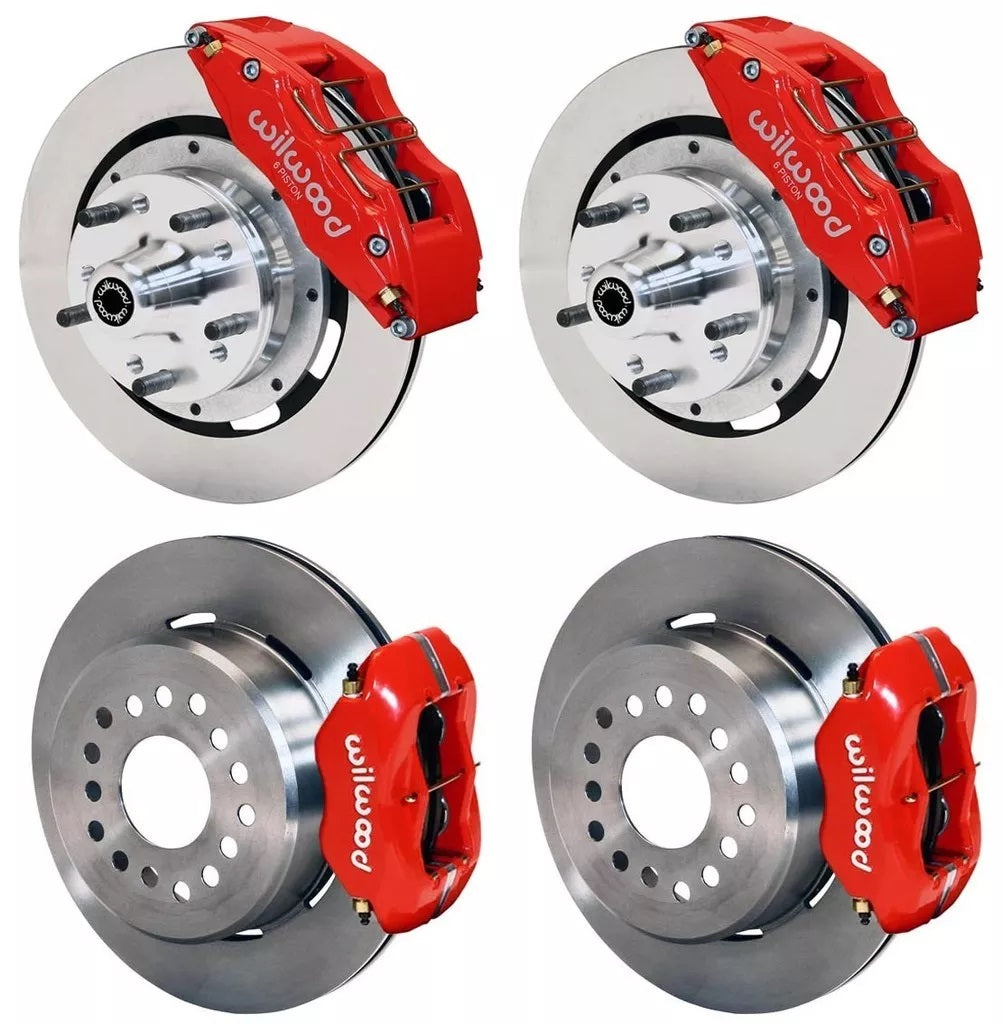

Brand New Wilwood Complete Premium Big Brake Front & Rear 12.19" Disc Brake Kit.

Complete Kit Includes:

• Forged Dynapro 6 Piston Bolt-On Front Hub & 12.19" Disc Brake Kit (Part #140-10740-R) for Both Front Wheels
• Forged Dynalite 4 Piston Bolt-On Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-7144-R) for Both Rear Wheels

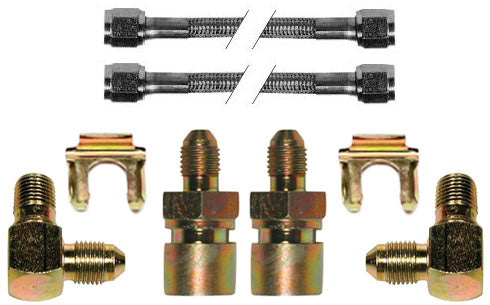

• Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

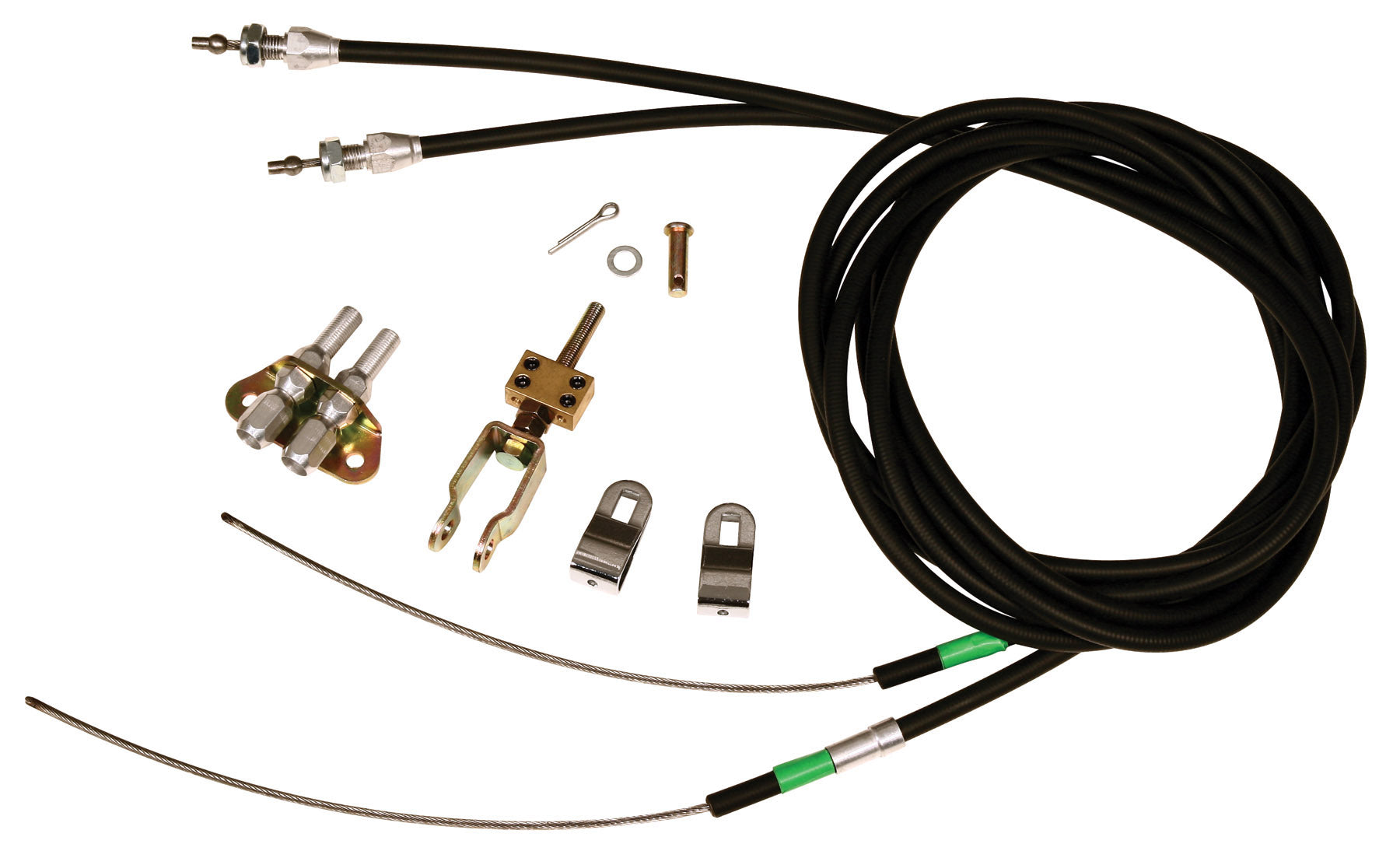

• Parking Brake Cable Kit that connects to the Wilwood parking brake assemblies, then comes together to join the stock cable behind the transmission

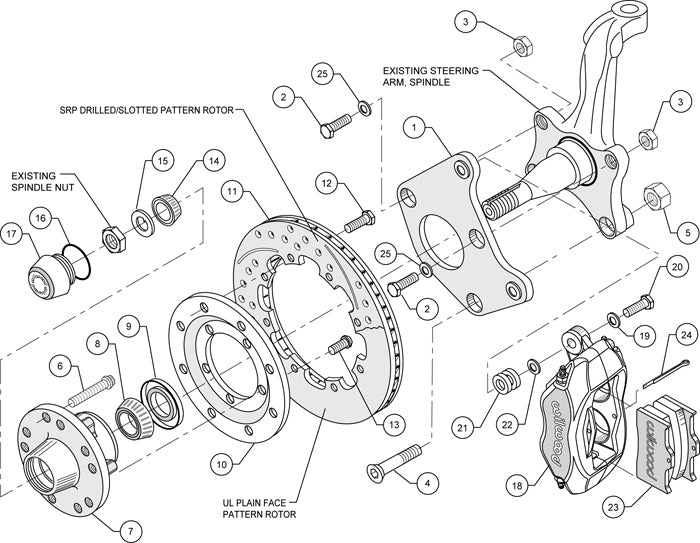

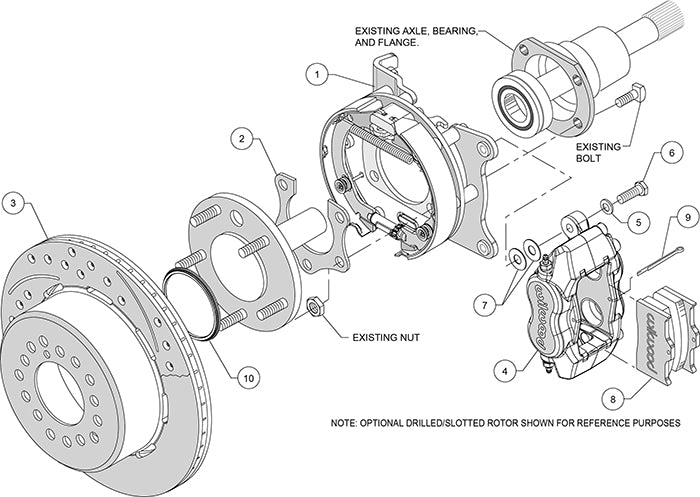

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• **Make sure to see the notes about the rear kit fitment below the vehicle list**
• Dodge:
  • 1963-1964 Dodge 330**
  • 1963-1964 Dodge 440**
  • 1962-1964 Dodge B-Body**
  • 1965-1972 Dodge B-Body with Drum Brake Front Spindles**
  • 1970-1972 Dodge Challenger with Drum Brake Front Spindles**
  • 1966-1972 Dodge Charger with Drum Brake Front Spindles**
  • 1965-1972 Dodge Coronet with Drum Brake Front Spindles**
  • 1970-1972 Dodge E-Body with Drum Brake Front Spindles**
  • 1962-1964 Dodge Polara**
  • 1968-1971 Dodge Super Bee with Drum Brake Front Spindles**
• Plymouth:
  • 1962-1964 Plymouth B-Body**
  • 1965-1972 Plymouth B-Body with Drum Brake Front Spindles**
  • 1970-1972 Plymouth Barracuda with Drum Brake Front Spindles**
  • 1962-1964 Plymouth Belvedere**
  • 1965-1970 Plymouth Belvedere with Drum Brake Front Spindles**
  • 1970-1972 Plymouth E-Body with Drum Brake Front Spindles**
  • 1962-1964 Plymouth Fury**
  • 1967-1972 Plymouth GTX with Drum Brake Front Spindles**
  • 1968-1972 Plymouth Road Runner with Drum Brake Front Spindles**
  • 1965-1972 Plymouth Satellite with Drum Brake Front Spindles**
  • 1962-1964 Plymouth Savoy**

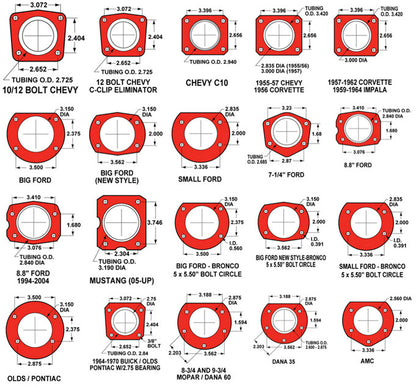

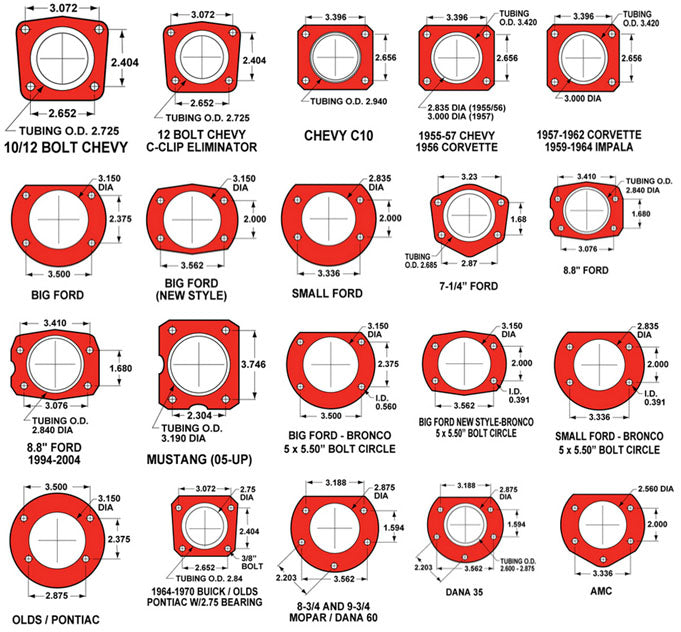

• **The rear kit fits 8 3/4" and 9 3/4" Mopar / Dana 60 rear ends with the Axle Flanges shown below and a 2.36" Axle Flange Offset (see diagram below to show how to measure that offset).  Approximately 90% of all these Dodge and Plymouth cars came stock with these particular axle flanges with that offset.  However, it is always better to measure your Axle Flange and Axle Flange Offset to be sure your vehicle has them.**
• **Also, this rear kit requires the use of the snap ring style, non-adjustable Green Bearings (MO-400).  For Wilwood's more detailed description of this bearing, you can see page 2 of the rear assembly instruction booklet.**

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. These kits can be used with either manual or power boost master cylinders.

For the Rear, FDL Pro Series rear disc brake kits provide a complete solution for popular muscle car rear axles that require a parking brake.  Forged Billet Dynalite 4-Piston calipers, 12.19" o.d. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These kits are the perfect compliment wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

Each kit is engineered specific for each vehicle.

These Brake kits require at least 16" diameter wheels.

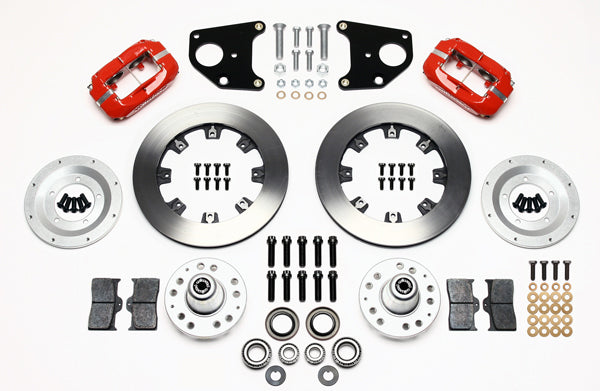

Front kit includes parts for both front wheels:

• .810" Thick x 12.19" O.D. Rotors
• Forged Dynapro 6 Piston Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hubs, Bearings, Seals, &
• All Hardware necessary to install the complete braking system on both front wheels

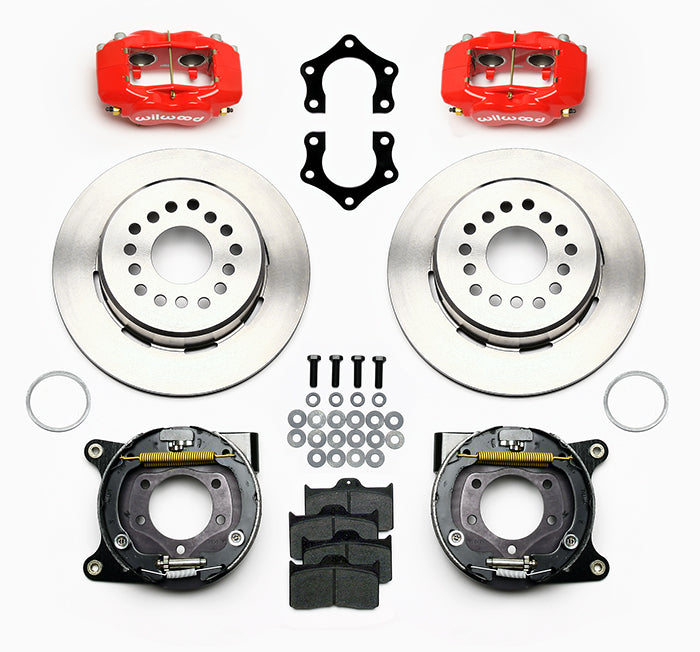

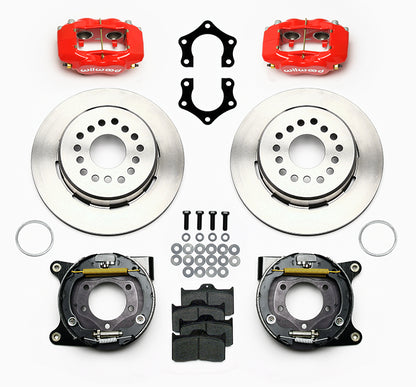

Rear kit includes parts for both rear wheels:

• .810" Thick x 12.19" O.D. Rotors with Hats
• Forged Dynalite 4 Piston Calipers - Red
• Drum Parking Brake Assemblies with Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 99 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
