00-09 HONDA S2000,FRONT,SL6R,12.88" DRILLED ROTORS

Brand New Wilwood Forged Narrow Superlite 6R Big Brake Kit Featuring 13" Drilled Rotors with Black Calipers For Both Front Wheels (Part #140-10309-D).

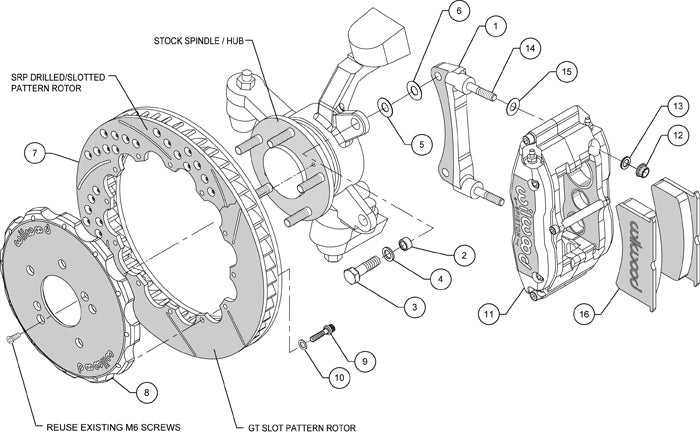

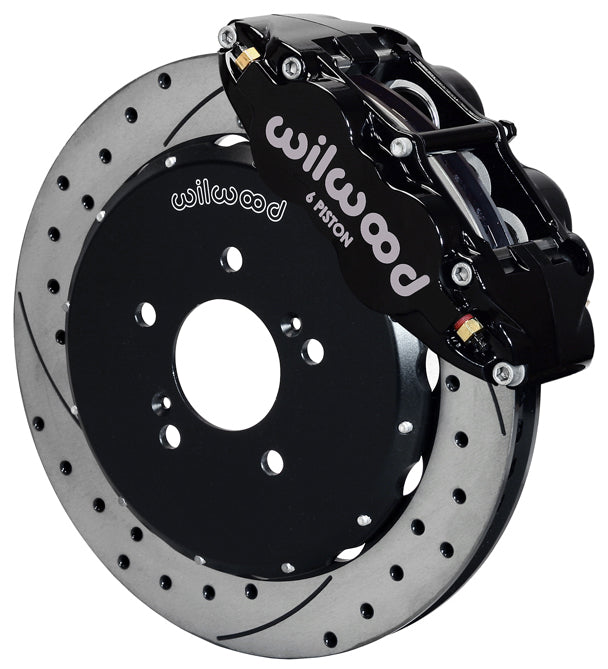

Only one side pictured. See the list, the diagram, and the assembly booklet for the details of the parts included.

Compatible with:

• Honda:
  • 2000-2009 S2000 All

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

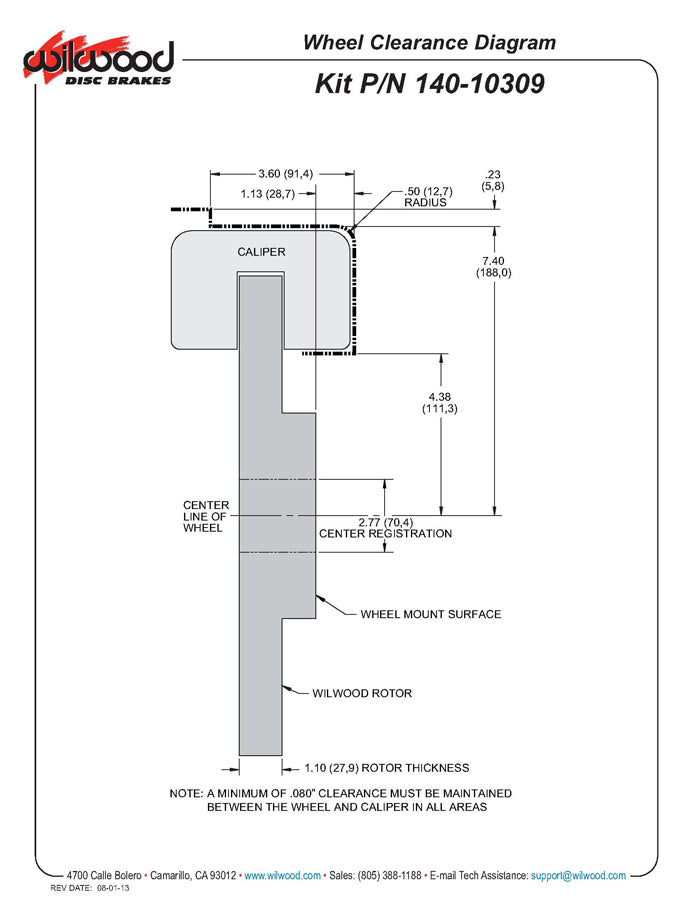

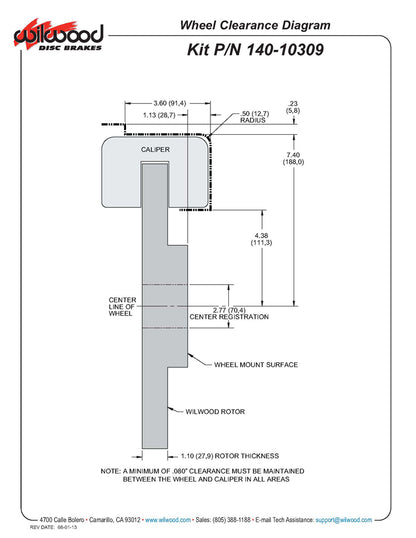

This kit require at least 17" diameter wheels.

Kit includes parts for both front wheels:

• 6 Piston Forged Superlite 6R Calipers
• 1.10" Thick x 12.88" O.D. Rotors
• BP-10 Compound Brake Pads
• Rotor Hat

• All brackets, bolts, washers, shims, and nuts necessary to install the kit.

Complete kit weighs approximately 52 lbs.

You can view and download the assembly/instruction booklet here.
