58-70 IMPALA FRONT DISC BRAKE KIT,2" DROP SPINDLES,14" DRILLED,BLACK

Brand New Wilwood Premium Big Brake Superlite Bolt-On Front Hub & 14" Disc Brake Kit with 2" Drop Spindles (Part #140-10284-D & #103-97645) for Both Front Wheels.

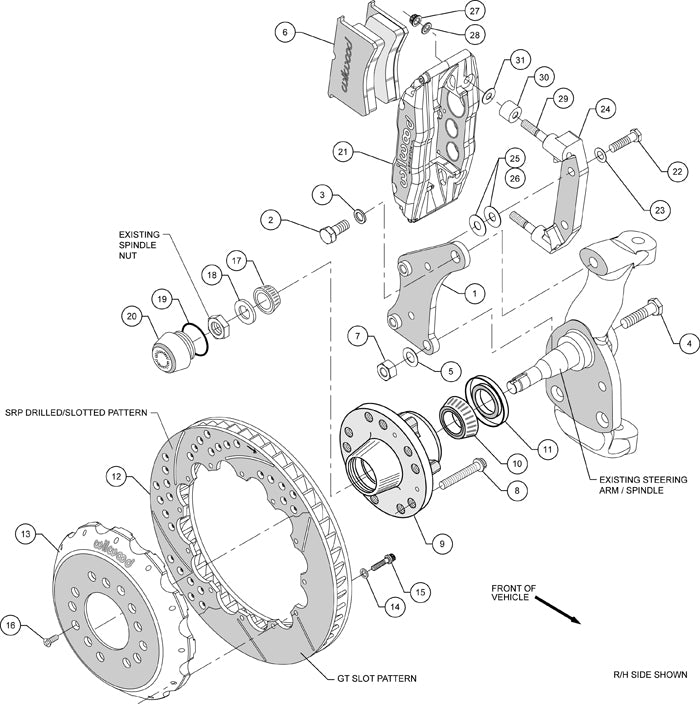

Only one side pictured.  See the list, the diagram, & the assembly booklet for a detail of the parts included.

Fits:

• Chevrolet:
  • 1958-1970 Bel Air
  • 1958-1970 Biscayne
  • 1958-1970 Brookwood
  • 1965-1970 Caprice
  • 1958 Del Ray
  • 1959-1960 El Camino
  • 1958-1970 Impala
  • 1969-1970 Kingswood
  • 1969-1970 Townsman

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

FNSL6R billet Forged 6-piston calipers with 14" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 18" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance, dual-purpose street and track machines. It's guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application. These kits can be used with either manual or power boost master cylinders..

Drop Spindles provide a full 2" drop, while not changing the vehicle's steering geometry. They will accept the stock ball joints and steering arms.

These Big Brake kits require at least 18" diameter wheels.

Kit includes parts for both front wheels:

• 2" Drop Spindles
• Drilled & Slotted, 1.10" Thick x 14.00" O.D. Rotors
• Superlite 6 Piston Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hats
• Hubs
• Bearings
• Seals
• All bolts, washers, spacers, & nuts necessary to install the complete braking system on both front wheels

Complete kit weighs approximately 98 lbs.

You can view and download the complete assembly instruction booklet for this kit here.
