58-70 LARGE GM W/CPP DROP,FRONT,14" ROTORS,BLACK CALIPERS

BRAND NEW WILWOOD PREMIUM BIG BRAKE SUPERLITE BOLT-ON FRONT HUB & 14" DISC BRAKE KIT (PART #140-10284) FOR BOTH FRONT WHEELS.

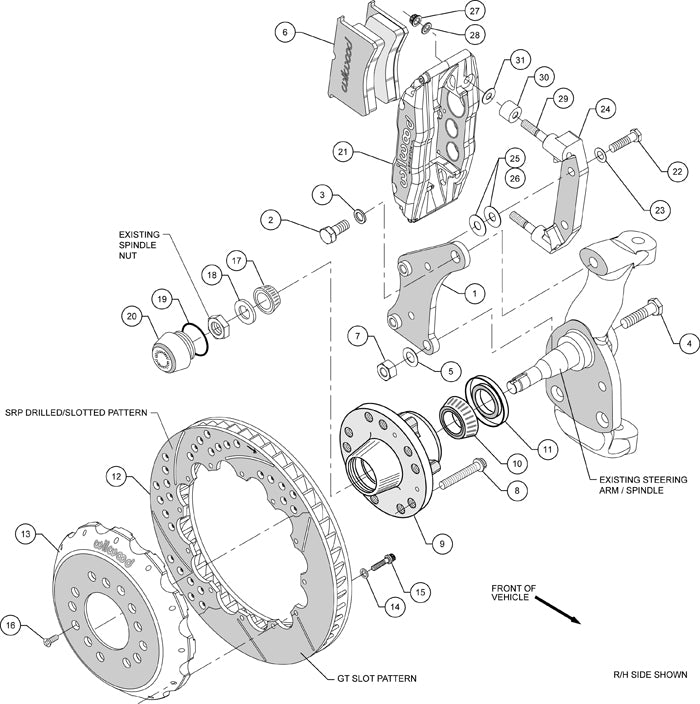

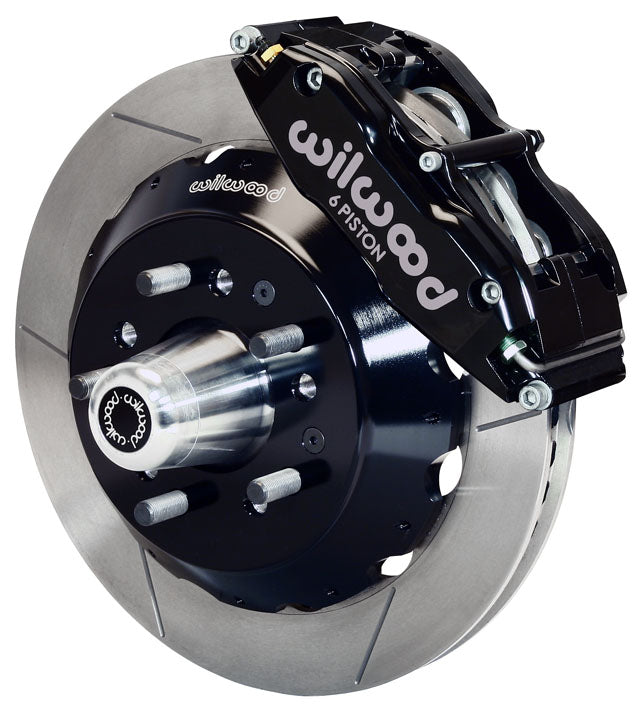

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED BLACK CALIPERS.

FITS:

• CHEVROLET:
  • 1958-1970 BEL AIR WITH CPP 2" DROP SPINDLES ONLY***
  • 1958-1970 BISCAYNE WITH CPP 2" DROP SPINDLES ONLY***
  • 1958-1970 BROOKWOOD WITH CPP 2" DROP SPINDLES ONLY***
  • 1965-1970 CAPRICE WITH CPP 2" DROP SPINDLES ONLY***
  • 1957-1958 DEL RAY WITH CPP 2" DROP SPINDLES ONLY***
  • 1959-1960 EL CAMINO WITH CPP 2" DROP SPINDLES ONLY***
  • 1958-1970 IMPALA WITH CPP 2" DROP SPINDLES ONLY***
  • 1969-1970 KINGSWOOD WITH CPP 2" DROP SPINDLES ONLY***
  • 1969-1970 TOWNSMAN WITH CPP 2" DROP SPINDLES ONLY***
  • ***THESE KITS FIT THE ABOVE APPLICATIONS ONLY WITH CLASSIC PERFORMANCE PRODUCTS CP30101 2" DROP SPINDLES***

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FNSL6R BILLET FORGED 6-PISTON CALIPERS WITH 14" ROTORS DELIVER THE ULTIMATE COMBINATION FOR BRAKING POWER AND STYLE IN THIS GROUP OF KITS ENGINEERED FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. BUILT EXCLUSIVELY FOR 18" AND LARGER WHEELS, SL6 KITS ENHANCE TIRE AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE, DUAL-PURPOSE STREET AND TRACK MACHINES. ITS GUARANTEED TO CATCH THE EYE OF THE MOST DISCRIMINATING ENTHUSIAST WHILE PROVIDING OPTIMIZED BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION. THESE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS.

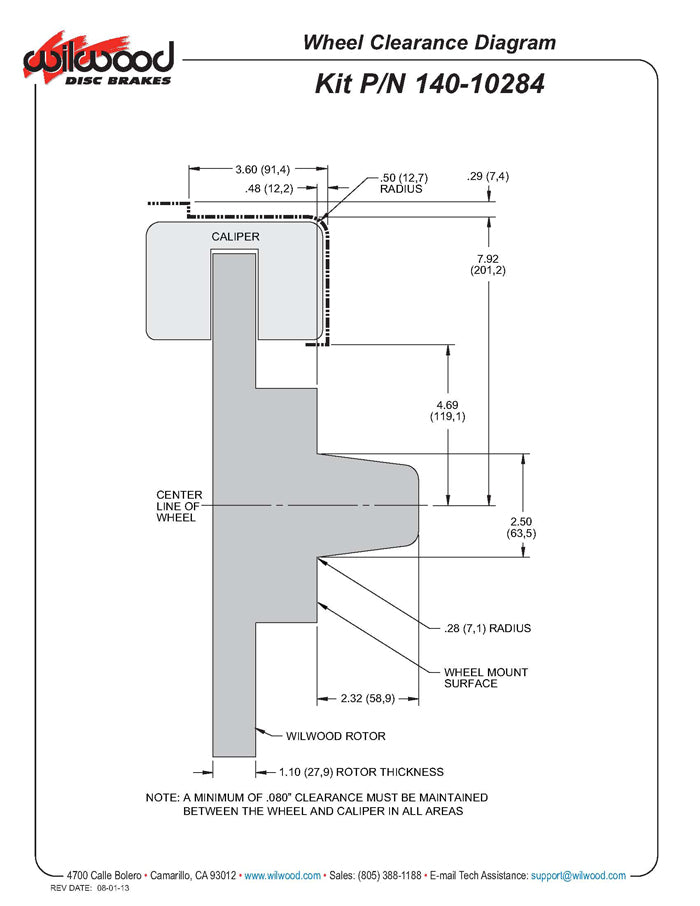

THESE BIG BRAKE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

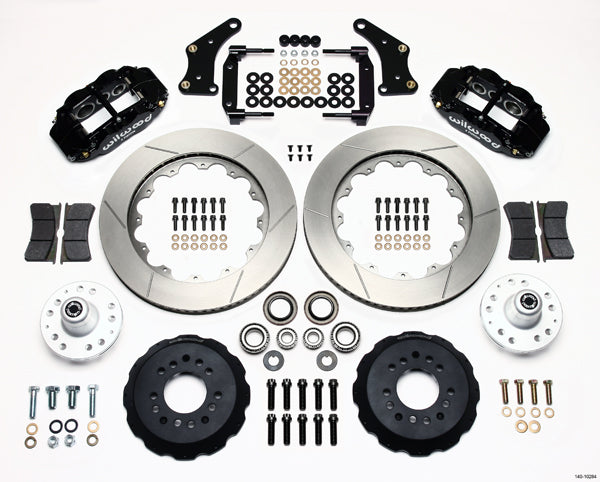

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.10" THICK X 14.00" O.D. ROTORS
• SUPERLITE 6 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HATS
• HUBS
• BEARINGS
• SEALS
• ALL BOLTS, WASHERS, SPACERS, & NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 68 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
