70-78 CAMARO DRAG KIT,FRONT,10.75",RED

70-78 CAMARO DRAG KIT,FRONT,10.75",RED

WIL 140-1019-R

$939.99
$939.99
View full details

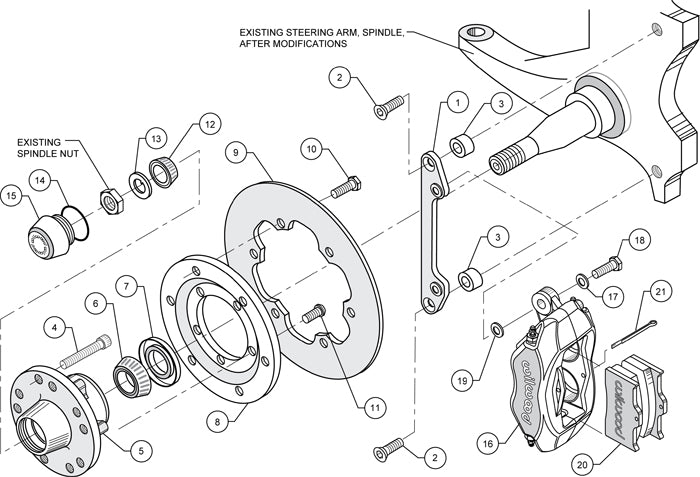

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD FORGED DYNALITE DRAG RACE FRONT HUB & DISC BRAKE KIT FOR:
    CHEVROLET:
    *1970-1978 CAMARO WITH DISC BRAKE SPINDLES
    *1973-1977 CHEVELLE WITH DISC BRAKE SPINDLES
    *1973-1977 EL CAMINO WITH DISC BRAKE SPINDLES
    *1973-1979 MALIBU WITH DISC BRAKE SPINDLES
    *1973-1977 MONTE CARLO WITH DISC BRAKE SPINDLES
    *1977-1978 IMPALA WITH OE 11" ROTOR SPINDLES
    *1977-1978 CONCOURS, ALL
    *1975-1978 NOVA WITH DISC BRAKE SPINDLES
    GMC:
    *1973-1977 SPRINT WITH DISC BRAKE SPINDLES
    BUICK:
    *1973-1977 CENTURY WITH DISC BRAKE SPINDLES
    *1973-1977 REGAL WITH DISC BRAKE SPINDLES
    *1975-1978 SKYLARK WITH DISC BRAKE SPINDLES
    *1975 APOLLO WITH DISC BRAKE SPINDLES
    *1977-1978 ESTATE WAGON WITH OE 11" ROTOR SPINDLES
    *1977-1978 LESABRE WITH OE 11" ROTOR SPINDLES
    CADILLAC:
    *1976 SEVILLE WITH DISC BRAKE SPINDLES
    OLDSMOBILE:
    *1973-1977 CUTLASS WITH DISC BRAKE SPINDLES
    *1973-1976 VISTA CRUISER WITH DISC BRAKE SPINDLES
    *1973 4-4-2 WITH DISC BRAKE SPINDLES
    *1975-1978 OMEGA WITH DISC BRAKE SPINDLES
    *1977-1978 88 WITH OE 11" ROTOR SPINDLES
    *1977-1978 CUSTOM CRUISER WITH OE 11" ROTOR SPINDLES
    PONTIAC:
    *1970-1978 FIREBIRD WITH DISC BRAKE SPINDLES
    *1973-1977 GRAND PRIX WITH DISC BRAKE SPINDLES
    *1973-1977 LEMANS WITH DISC BRAKE SPINDLES
    *1975-1977 VENTURA II WITH DISC BRAKE SPINDLES
    *1977-1978 PHOENIX WITH DISC BRAKE SPINDLES
    *1977-1978 BONNEVILLE WITH OE 11" ROTOR SPINDLES
    *1977-1978 CATALINA WITH OE 11" ROTOR SPINDLES

  • FEATURING RED CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • FDL FRONT DRAG KITS ARE DRAG RACING'S MOST POPULAR FRONT BRAKE KITS
  • FDL KITS ARE AVAILABLE FOR THE POPULAR MUSCLE CAR SPINDLES & SELECT AFTERMARKET FRONT STRUTS USED ON FOUR-WHEEL DISC CARS WEIGHING UP TO 2,800 POUNDS, OR REAR DRUM BRAKE EQUIPPED CARS WEIGHING UP TO 2,400 POUNDS
  • KIT INCLUDES:
    *.35" THICK x 10.75" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS, *BEARINGS, *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

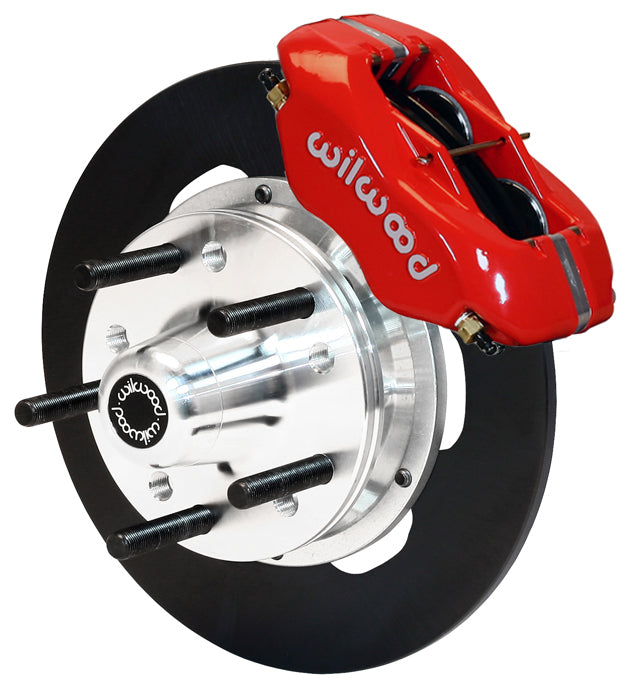

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Camaro/Firebird Front Kits, 1970-1978
