GP310 MOTORCYCLE SPROCKET KIT,RIGHT,51,CHROME

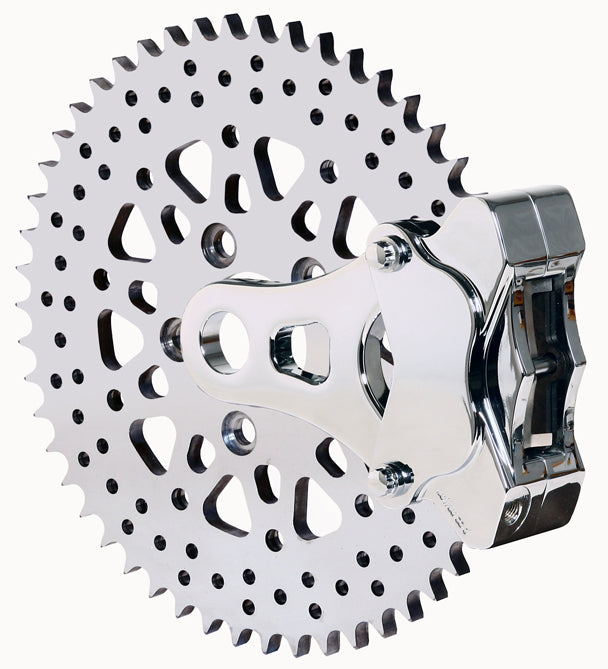

Brand New Wilwood GP310 Motorcycle Brake Kit Featuring 10.57" Drilled Rotors with Chrome Calipers for Right-Hand Rear Sprockets (Part #140-10181).

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Fits:

• Harley Davidson models with a 5 x 3.25” bolt circle

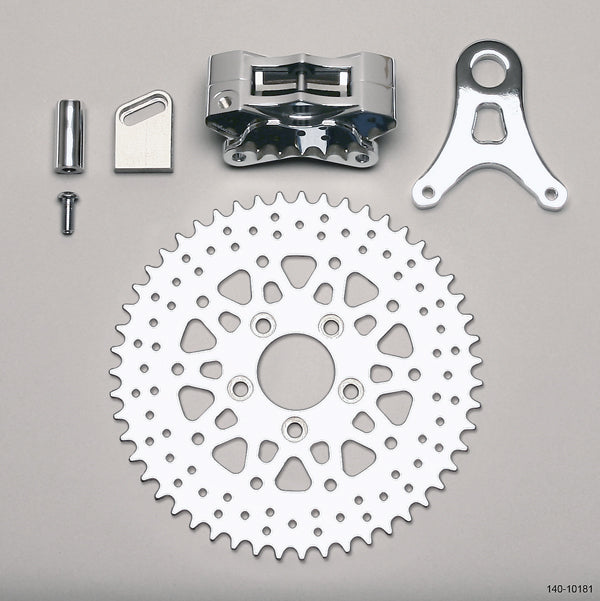

Rear kit includes:

• GP310 4 Piston Caliper
• 0.35" Thick x 10.57" O.D. Rotor
• BP-10 Brake Pads

• All bolts, washers, and hardware necessary to install the complete braking system on both front wheels

Wilwood’s Sprocket Brake kits 140-10181 / 140-10181-P are for a 51 tooth sprocket and R/H caliper application. The sprocket-rotor bolt circle is consistent on all Harley Davidson models with a 5 x 3.25” bolt circle. The accompanying billet aluminum GP310 caliper is a 4 piston powerhouse, available in either chrome or a bright polished finish. Sprocket brake kits utilize a unique bracket design that combines the right elements of strength and style for your custom application.

Complete kit weighs approximately 9 lbs.

You can view and download the assembly/instruction booklet here.
