64-74 GM FRONT DRAG DISC BRAKE KIT,10.75" ROTORS,4 PISTON POLISHED CALIPERS

64-74 GM FRONT DRAG DISC BRAKE KIT,10.75" ROTORS,4 PISTON POLISHED CALIPERS

WIL 140-1017-P

$989.99
$989.99
View full details

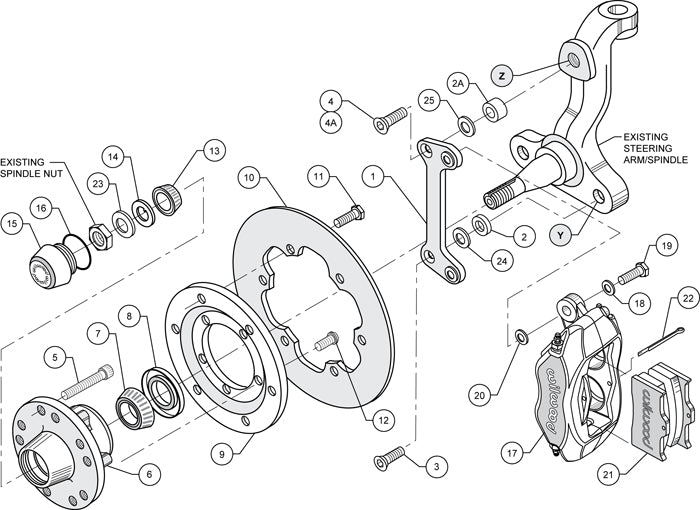

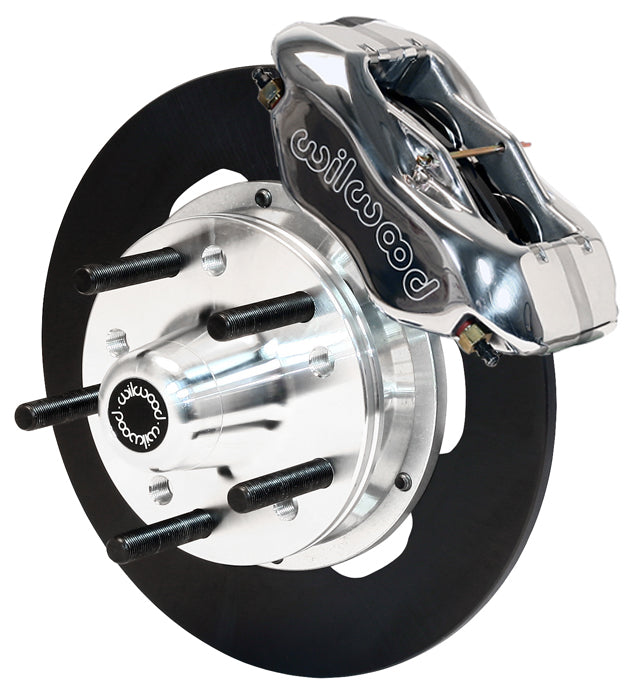

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD FORGED DYNALITE DRAG RACE FRONT HUB & DISC BRAKE KIT FOR:
    *CHEVROLET CAMARO & PONTIAC FIREBIRD:
    -1967-1969 WITH DISCS OR DRUM SPINDLES

    *CHEVY II:
    -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS

    *CHEVROLET NOVA:
    -1967-1974 WITH DISCS OR DRUM SPINDLES

    *CHEVELLE, MONTE CARLO, MALIBU, & EL CAMINO:
    -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS
    -1967-1972 WITH DISCS OR DRUM SPINDLES

    *OLDSMOBILE CUTLASS, F85 VISTA CRUISER, 4-4-2, & CALAIS:
    -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS
    -1967-1972 WITH DISCS OR DRUM SPINDLES

    *PONTIAC GTO, LEMANS, GRAND AM, GRAND LEMANS, TEMPEST, & T37:
    -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS
    -1967-1972 WITH DISCS OR DRUM SPINDLES

    *BUICK REGAL, CENTURY, LUXUS, SKYLARK, & SPECIAL:
    -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS
    -1967-1972 WITH DISCS OR DRUM SPINDLES

  • FEATURING POLISHED CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • FDL FRONT DRAG KITS ARE DRAG RACING'S MOST POPULAR FRONT BRAKE KITS
  • FDL KITS ARE AVAILABLE FOR THE POPULAR MUSCLE CAR SPINDLES & SELECT AFTERMARKET FRONT STRUTS USED ON FOUR-WHEEL DISC CARS WEIGHING UP TO 2,800 POUNDS, OR REAR DRUM BRAKE EQUIPPED CARS WEIGHING UP TO 2,400 POUNDS

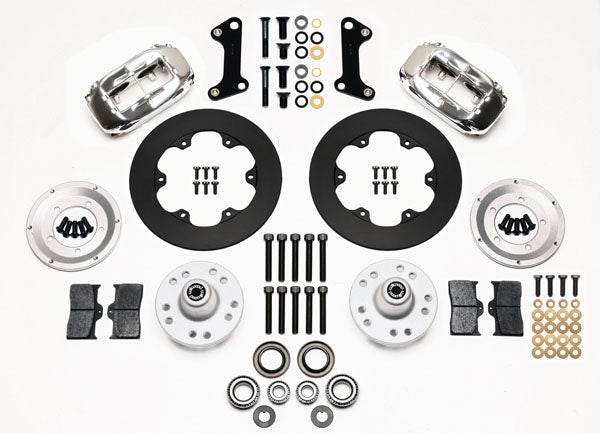

  • KIT INCLUDES:
    *.35" THICK x 10.75" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - POLISHED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS, *BEARINGS, *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

  • ONLY ONE SIDE SHOWN
