71-80 PINTO DRAG KIT,FRONT,FDL,10.75,RED

71-80 PINTO DRAG KIT,FRONT,FDL,10.75,RED

WIL 140-1013-R

$939.99
$939.99
View full details

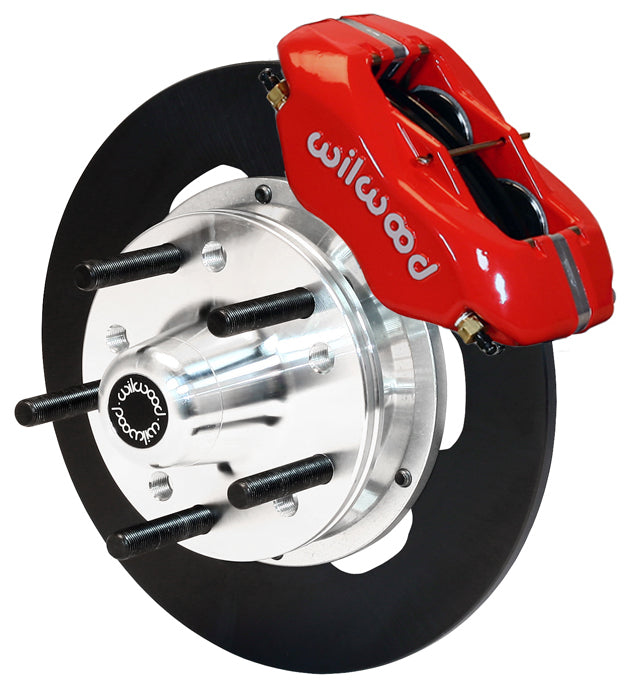

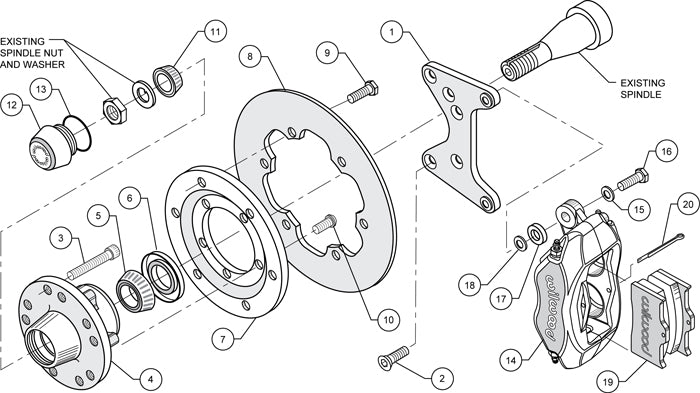

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD FORGED DYNALITE DRAG RACE FRONT HUB & DISC BRAKE KIT FOR:
    FORD:
    *1971-1980 PINTO WITH DISC BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)
    *1971-1973 PINTO WITH DRUM BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)
    *1974-1978 MUSTANG II WITH DISC BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)
    MERCURY:
    *1975-1980 BOBCAT WITH DISC BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)

  • FEATURING RED CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • FDL FRONT DRAG KITS ARE DRAG RACING'S MOST POPULAR FRONT BRAKE KITS
  • FDL KITS ARE AVAILABLE FOR THE POPULAR MUSCLE CAR SPINDLES & SELECT AFTERMARKET FRONT STRUTS USED ON FOUR-WHEEL DISC CARS WEIGHING UP TO 2,800 POUNDS, OR REAR DRUM BRAKE EQUIPPED CARS WEIGHING UP TO 2,400 POUNDS

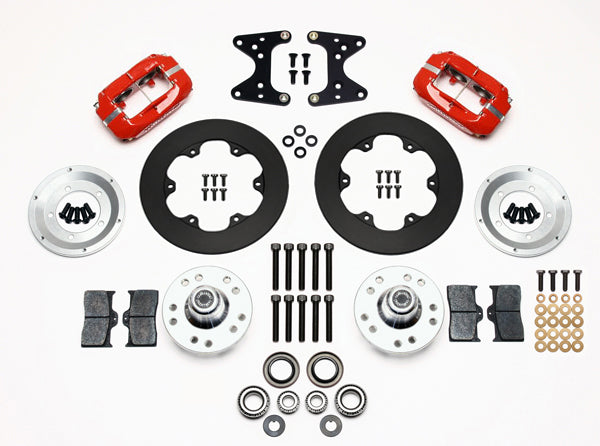

  • KIT INCLUDES:
    *.35" THICK x 10.75" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS, *BEARINGS, *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Ford Kits > Pinto/Mustang II Front Kits, 1971-1980
