GM C-10 C-KIT,2.42",REAR PB,12.19" ROTORS,POLISHED CALIPERS

GM C-10 C-KIT,2.42",REAR PB,12.19" ROTORS,POLISHED CALIPERS

WIL 140-10094P

$1,029.99
$1,029.99
View full details

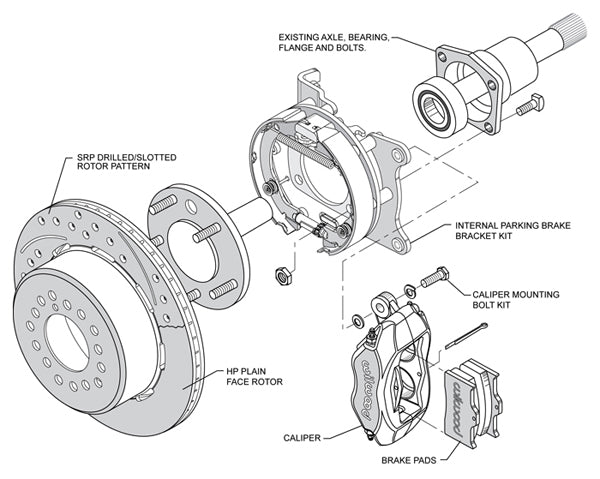

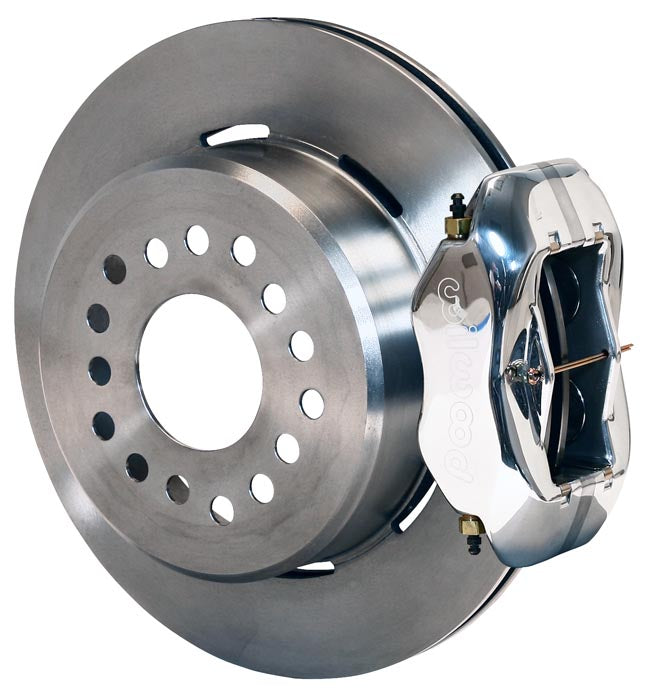

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PRO SERIES BOLT-ON REAR PARKING BRAKE DISC BRAKE KIT FOR C-10 & C-15 CHEVROLET REAR ENDS WITH A 3.396" X 2.656" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.42" FLANGE OFFSET (SEE DIAGRAMS BELOW) WITH C-CLIPS
  • FEATURING POLISHED CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION

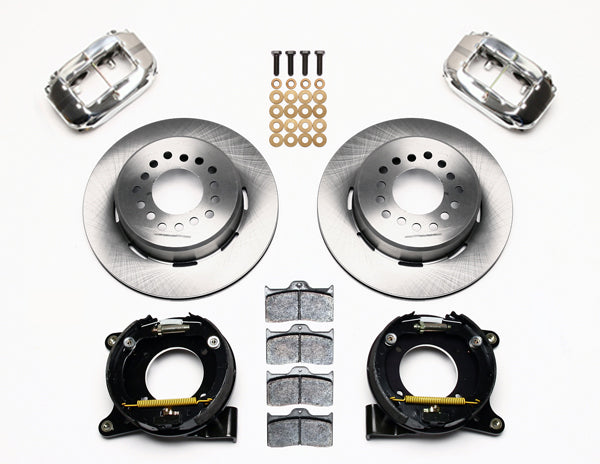

  • KIT INCLUDES:
    *.810" THICK x 12.19" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - POLISHED,
    *CALIPER MOUNTING BRACKETS,
    *DRUM PARKING BRAKE ASSEMBLIES,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE



    • Click Picture
    For Larger View




    Click Picture
    For Larger View



    Click Picture
    For Larger View


  • ONLY ONE SIDE SHOWN
