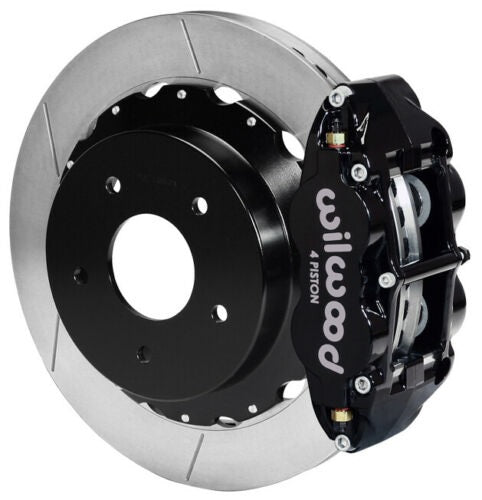

GM C-10 C-KIT,2.42",REAR PB,12.90" ROTORS,BLACK CALIPERS

BRAND NEW WILWOOD REAR PARKING BRAKE KIT, FORGED SUPERLITE, BOLT-ON 12.88" DISC BRAKE KIT FOR BOTH REAR WHEELS, COMPATIBLE WITH 1963-1987 C10 TRUCK

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS. COMPLETE KIT WEIGHS APPROXIMATELY 73 LBS.

FORGED NARROW SUPERLITE 4R REAR DISC KITS PROVIDE THE ULTIMATE BIG BRAKE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. FNSL4R FOUR PISTON CALIPERS, 13" TWO-PIECE ROTORS, AND HIGH PERFORMANCE BP-10 COMPOUND PADS PROVIDE OPTIMIZED AND BALANCED BRAKING TO COMPLIMENT FRONT BIG BRAKE UPGRADES ON ALL TYPES OF CUSTOM, SHOW AND HIGH PERFORMANCE STREET MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING.

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

COMPATIBLE WITH:

• CHEVROLET:
• 1963-1987 C10, 5 LUG WITH A 2.42" AXLE FLANGE OFFSET WITH C-CLIPS
• GMC:
• 1963-1987 C15, 5 LUG WITH A 2.42" AXLE FLANGE OFFSET WITH C-CLIPS

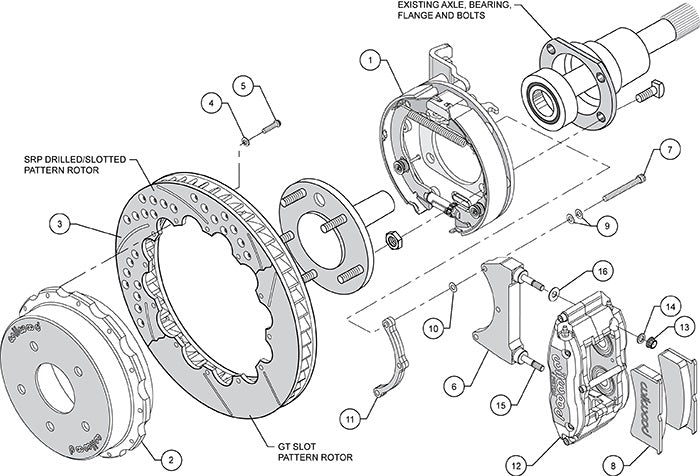

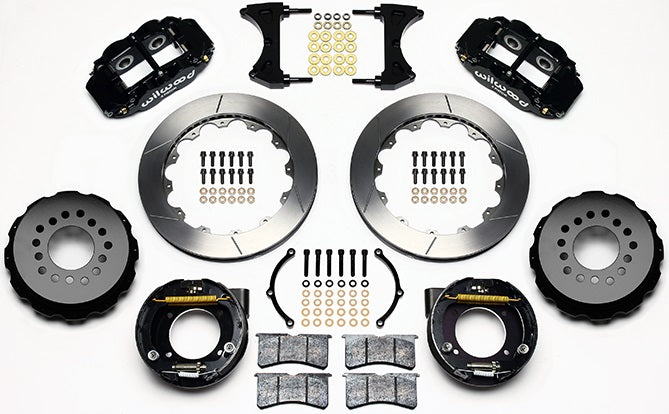

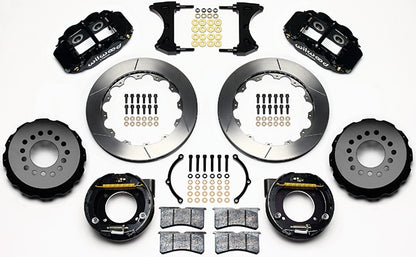

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• 1.10" THICK X 12.88" O.D. ROTORS
• FORGED SUPERLITE 4 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• DRUM PARKING BRAKE ASSEMBLIES
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEEL
