BIG FORD NEW KIT,2.50",REAR,14",DR,POLISHED

BIG FORD NEW KIT,2.50",REAR,14",DR,POLISHED

WIL 140-10012DP

$2,469.99
$2,469.99
View full details

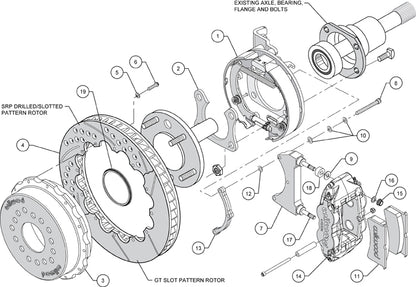

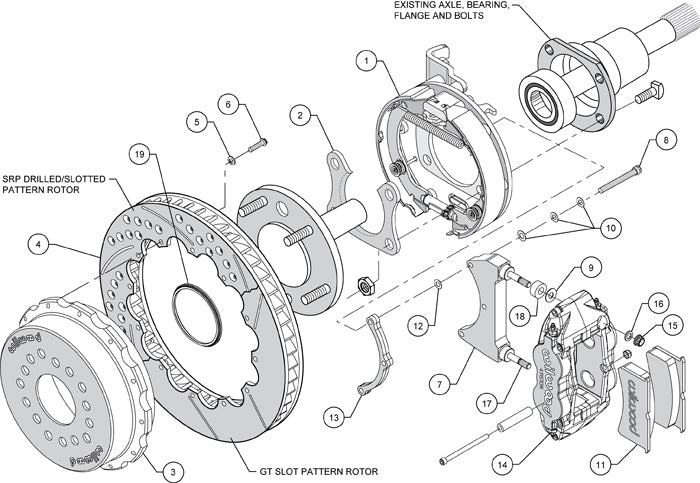

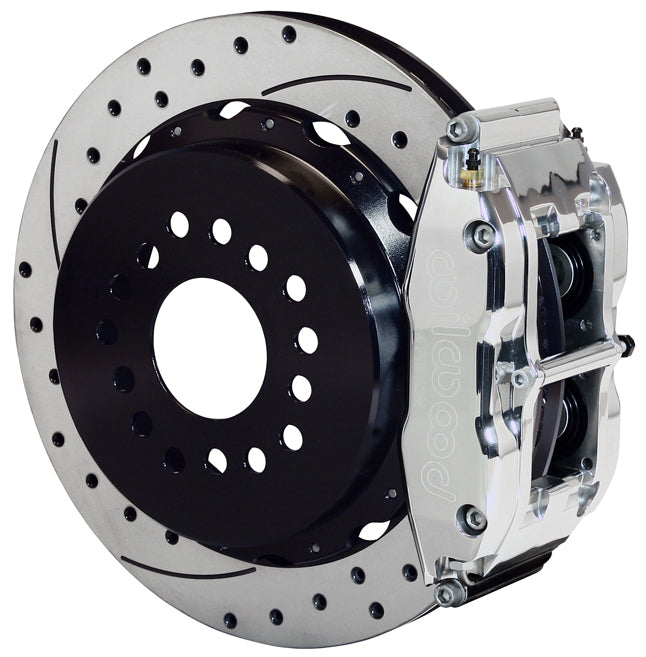

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

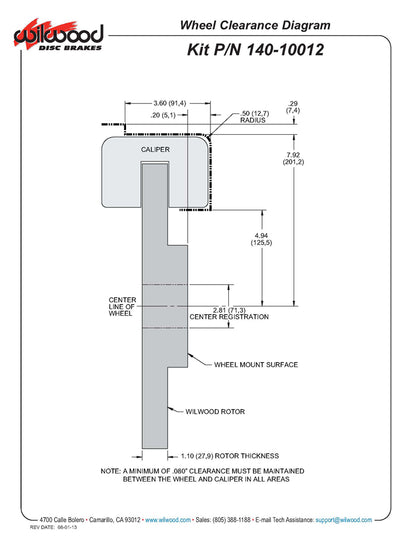

  • WILWOOD BOLT-ON REAR PARKING BRAKE DISC BRAKE KIT FOR BIG BEARING FORD (NEW STYLE) REAR ENDS WITH A 3.562" x 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET (SEE DIAGRAMS BELOW)
  • FEATURING DRILLED ROTORS & POLISHED CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION

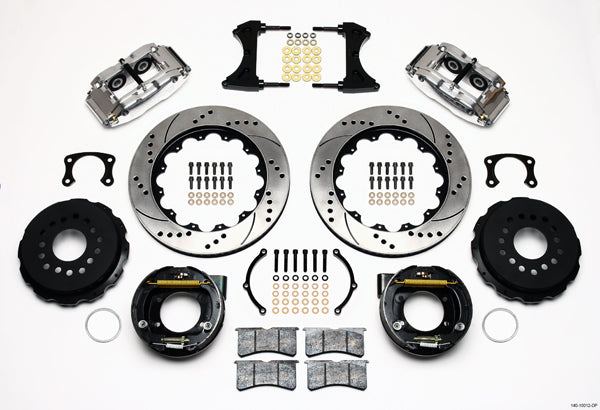

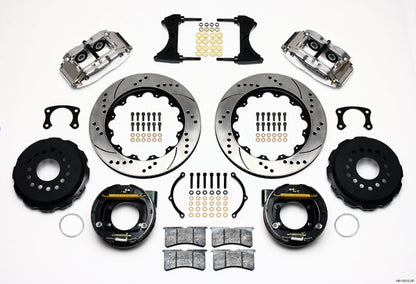

  • KIT INCLUDES:
    *DRILLED, 1.10" THICK x 14" O.D. ROTORS,
    *SUPERLITE 4 PISTON CALIPERS - POLISHED,
    *CALIPER MOUNTING BRACKETS,
    *DRUM PARKING BRAKE ASSEMBLIES,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE



    • Click Picture
    For Larger View




    Click Picture
    For Larger View

    Bolt-On Disc Brake Kits > Ford Kits > Rear Kits, Big Ford New Flange
