GM DRAG C-KIT,2.81",REAR,FDL,11.44",RED

GM DRAG C-KIT,2.81",REAR,FDL,11.44",RED

WIL 140-0263-R

$945.15
$945.15

Yes, we have this item in stock and ready to ship immediately!
View full details

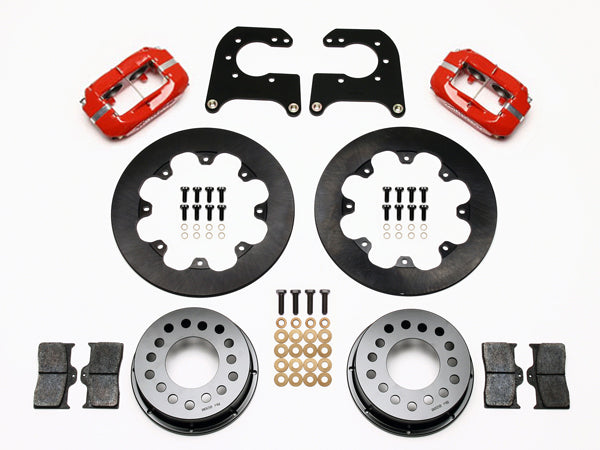

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

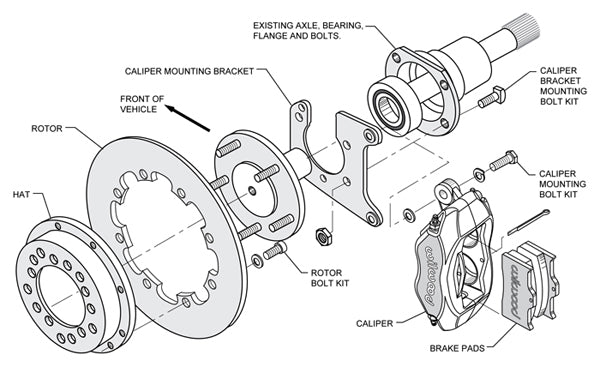

  • WILWOOD BOLT-ON REAR DISC BRAKE KIT FOR 10 BOLT & 12 BOLT CHEVROLET REAR ENDS WITH A 2.81" FLANGE OFFSET (SEE DIAGRAMS BELOW)
  • FEATURING RED CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • KIT INCLUDES:
    *.350" THICK x 11.44" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE



    • Click Picture
    For Larger View




    Click Picture
    For Larger View



    Click Picture
    For Larger View

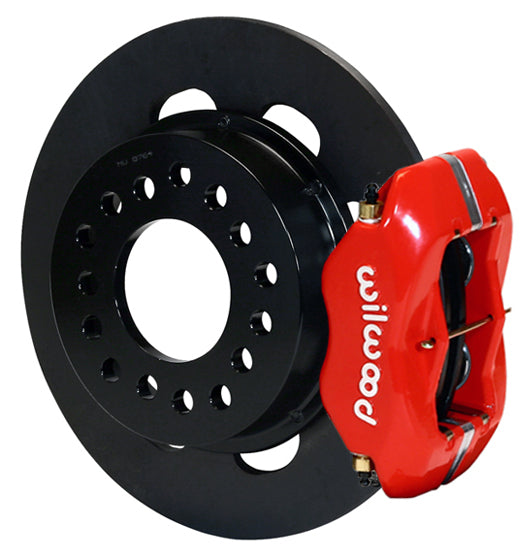

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Rear Kits, GM/Chevy Flange, 2.81, No E-Brake
