MOPAR/DANA DRAG KIT,2.36,REAR,11.44" DRILLED ROTORS,BLACK

MOPAR/DANA DRAG KIT,2.36,REAR,11.44" DRILLED ROTORS,BLACK

WIL 140-0260-BD

$745.15
$745.15

Yes, we have this item in stock and ready to ship immediately!
View full details
  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD BOLT-ON REAR DISC BRAKE KIT FOR MOPAR 8 3/4" & DANA 60 REAR ENDS WITH A 5 BOLT MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.36" FLANGE OFFSET (SEE DIAGRAMS BELOW)
  • FEATURING DRILLED ROTORS & GRAY CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

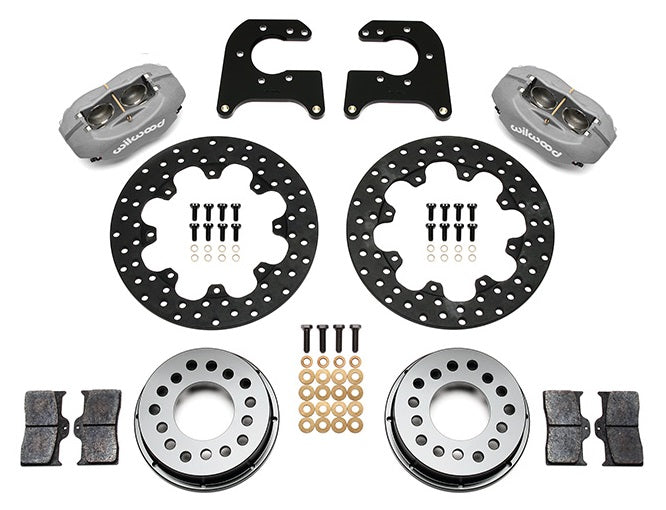

  • KIT INCLUDES:
    *DRILLED, .350" THICK x 11.44" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - GRAY,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
  • COMPLETE KIT WEIGHS APPROXIMATELY 27 LBS.
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE



    • Click Picture
    For Larger View




    Click Picture
    For Larger View

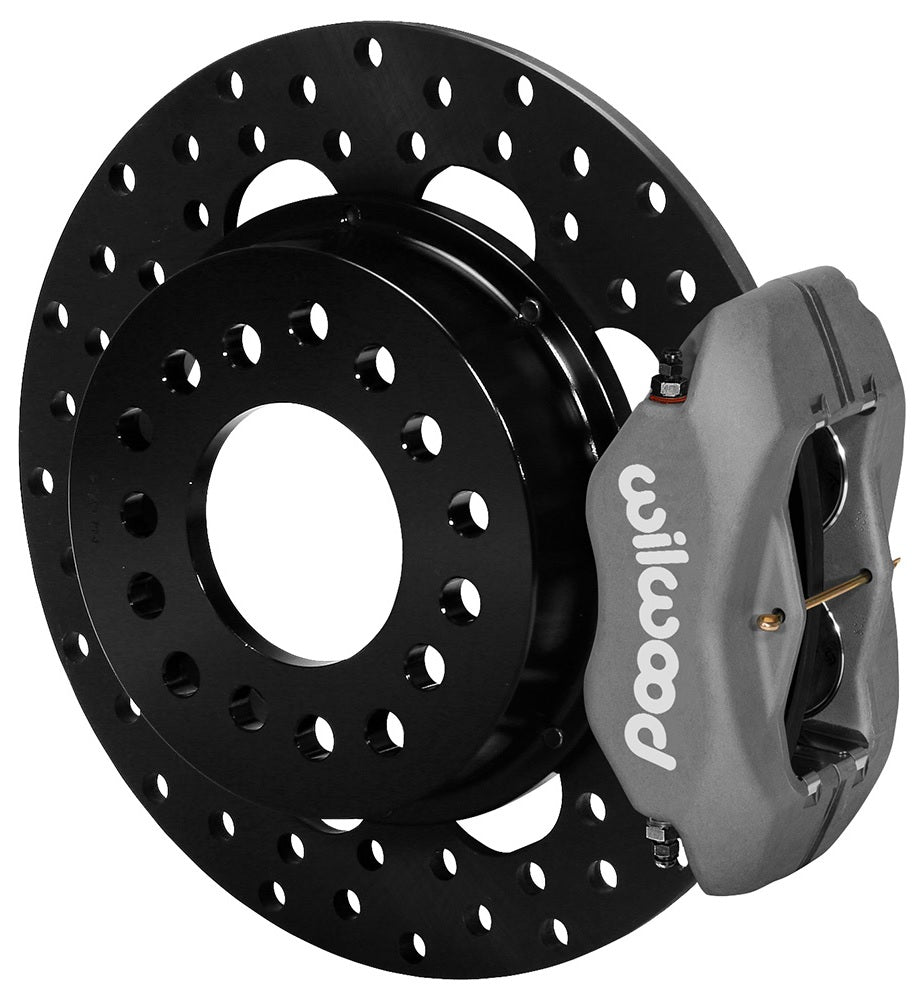

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Mopar/Dana Kits > Rear Kits, Mopar/Dana Flange, 2.36, No E-Brake
