CALIPER,1.25" PISTON SC1,.150>.250" DISC

CALIPER,1.25" PISTON SC1,.150>.250" DISC

WIL 120-9851

$74.10
$74.10

Yes, we have this item in stock and ready to ship immediately!
View full details
  • FITS .150" TO .250" THICK ROTORS

  • FEATURES ONE 1.25" PISTON

  • COMMONLY USED ON ATV'S, SNOWMOBILES, AND MANY OTHER POWER SPORTS, INDUSTRIAL, AGRICULTURAL, AND RECREATIONAL APPLICATIONS.

  • DESIGNED, ENGINEERED AND MANUFACTURED IN THE U.S.A., THIS FLOATING DIE CAST ALUMINUM CALIPER IS A STRONG, COMPACT, INEXPENSIVE ANSWER TO THE BRAKING NEEDS OF RECREATIONAL, AGRICULTURAL AND INDUSTRIAL VEHICLES. FEATURES OF THIS SINGLE PISTON DESIGN INCLUDE AVAILABILITY OF 1.25" BORE SIZE, FITTED DUST SEAL TO PREVENT INGRESS OF ENVIRONMENTAL CONTAMINATION, DUAL BLEED FITTINGS FOR VERSATILITY IN MOUNTING POSITION AND FLUID INLETS IN M10 X 1.0 BANJO.

  • THE MOUNTING SYSTEM FEATURES CORROSION RESISTANT SLIDE PINS FLOATING IN VISCOELASTIC RINGS MOUNTED IN THE EARS OF THE BODY FOR SMOOTH, RATTLE-FREE OPERATION. THIS SYSTEM CONTROLS PAD KNOCK-BACK TO RETAIN A CONSISTENT PEDAL OR HAND LEVER FEEL THROUGHOUT THE LIFE OF THE PADS. WEIGHT: FROM 1.1 POUNDS. ROTOR THICKNESS RANGE: .15" TO .25"

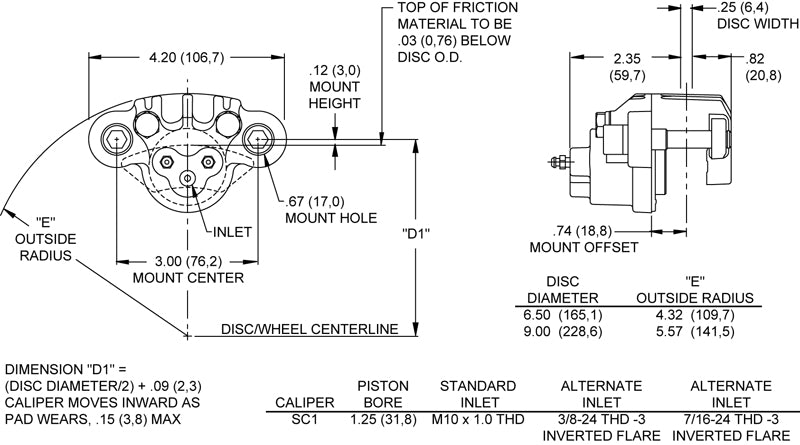

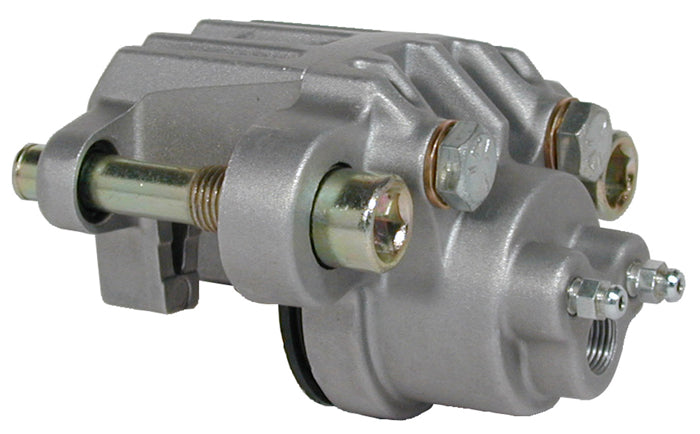

    • Click Picture
    For Larger View

    Brake Calipers > SC-1
