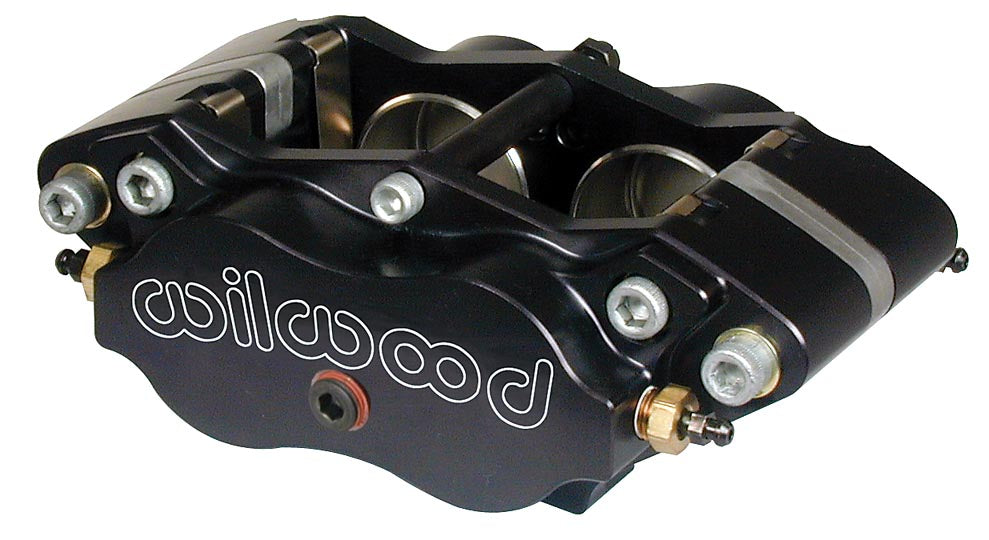

CALIPER,1.75 BNDL RADIAL,.81",SIDE INLET

CALIPER,1.75 BNDL RADIAL,.81",SIDE INLET

WIL 120-6454-SI

$199.99
$199.99
View full details
  • WORKS WITH .810" ROTORS
  • FOUR 1.75" PISTONS
  • ALSO FEATURES A SIDE INLET ON THE SIDE AWAY FROM THE MOUNTING BRACKET; THIS GETS THE BRAKE FITTING OUT OF THE TIGHT AWAY BETWEEN THE REAR END BELL & THE CALIPER ON INBOARD OPEN WHEEL APPLICATIONS
  • WILWOODS BILLET NARROW MOUNT DYNALITE (NDL) RADIAL MOUNT CALIPER SERIES CONTINUES TO GROW IN POPULARITY OVER A WIDE RANGE OF RACING AND HIGH PERFORMANCE APPLICATIONS
  • THIS COMPACT AND LIGHTWEIGHT PROVEN PERFORMER IS NOW AVAILABLE IN THIS RADIAL MOUNT CONFIGURATION
  • THE BILLET NDLR CALIPERS CAN BE DIRECTLY MOUNTED OVER STUDS, OR USED WITH A RADIAL MOUNT BRACKET KIT IN PLACE OF A TAB MOUNT CALIPER
  • THE BILLET NDLR CALIPER IS A COMPACT, LIGHTWEIGHT, AND RUGGED CALIPER THAT PROVIDES STRONG CLAMPING FORCE FROM FOUR 1.75" STAINLESS CUP PISTONS
  • THE BODIES ARE FULLY CNC MACHINED FROM BILLET WITH INTERNAL FLUID PORTS THAT ELIMINATE EXTERNAL FLUID TUBES
  • EACH CALIPER IS EQUIPPED WITH FOUR CORNER BLEEDS TO ACCOMMODATE MOUNTING IN ALL POSITIONS
  • THE BRIDGES ARE EQUIPPED WITH STAINLESS STEEL ANTI-RATTLE WEAR PLATES
  • THESE PLATES REDUCE BRIDGE WEAR AND PROVIDE SMOOTH, RATTLE FREE OPERATION OF THE PADS
  • A CENTER BRIDGE BOLT ADDS OVERALL CALIPER STRENGTH AND POSITIVE RETENTION OF THE TOP LOADED PADS
  • ALL BILLET NDLR CALIPERS ARE DESIGNED FOR LONG SERVICE USING THE .63" (16,0 MM) THICK 7216 STYLE BRAKE PADS
  • RADIAL MOUNT BRACKET KITS ARE USED TO INSTALL A RADIAL MOUNT CALIPER IN PLACE OF A TAB MOUNT CALIPER
  • NDLR BRACKETS USE THE POPULAR 3.50" MOUNT PATTERN FOUND ON WILWOOD SUPERLITE, NARROW DYNALITE, AND MANY OTHER POPULAR RACING CALIPERS
  • ON APPLICATIONS WHERE THE TAB MOUNT BOLTS ARE DIFFICULT TO ACCESS, RADIAL MOUNTING CAN DRASTICALLY SIMPLIFY SERVICE IN THE FIELD
  • RADIAL BRACKETS ALSO PROVIDE TWO PLANES OF ADJUSTMENT FOR PRECISE ALIGNMENT OVER THE DISC



    • Click Picture
    For Larger View

    Brake Calipers > Narrow Dynalite (NDL) > For .810" Rotor
