CALIPER,1.75 FDLI DYNALITE,.810",GRAY

CALIPER,1.75 FDLI DYNALITE,.810",GRAY

WIL 120-13844

$183.45
$183.45

Yes, we have this item in stock and ready to ship immediately!
View full details

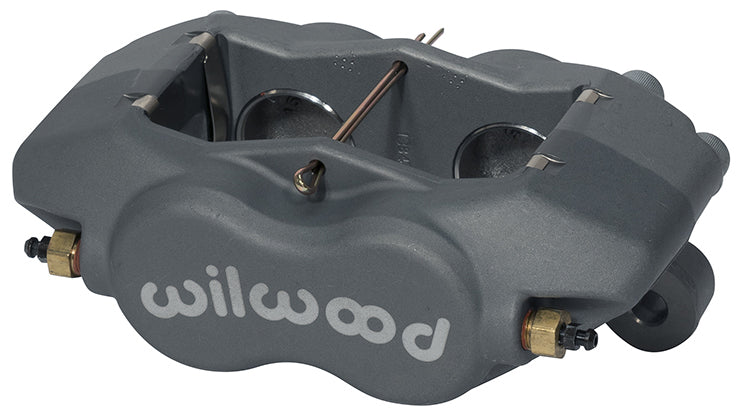

  • BRAND NEW WILWOOD GRAY ANODIZED FORGED DYNALITE INTERNAL RACING BRAKE CALIPER (PART #120-13844)

    • FEATURES:

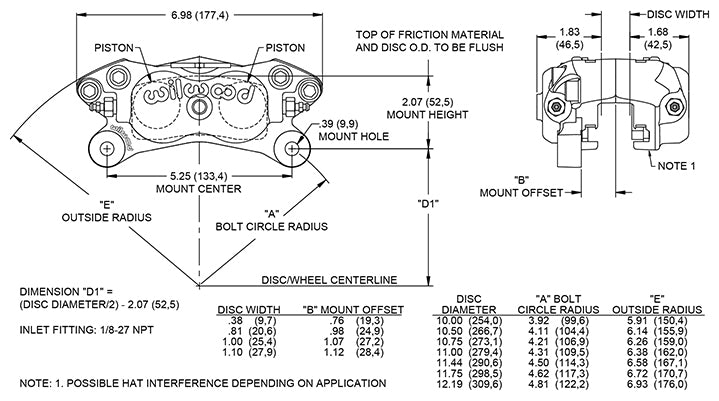

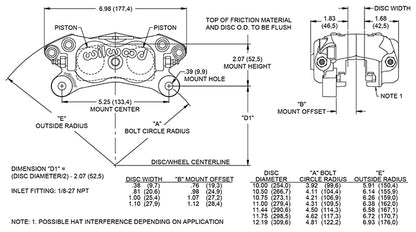

  • DESIGNED TO FIT 0.81" THICK ROTORS, BUT WILL FIT FROM 0.75" TO 0.83" THICK
  • FITS 10" TO 13.06" DIAMETER ROTORS
  • FEATURES FOUR 1.750" PISTONS
  • ANODIZED GRAY

  • THE FORGED BILLET DYNALITE INTERNAL IS THE NEXT GENERATION ENHANCEMENT OF THE VENERABLE FORGED DYNALITE SERIES CALIPERS. DESIGNED WITH A SINGLE SPLIT BRIDGE AND SPACER LESS DESIGN TO ENHANCE STRENGTH AND APPEARANCE. THESE LATEST APPLIED DEVELOPMENTS AND INNOVATIONS IN CALIPER DESIGN AND MANUFACTURING PROCESSES HAVE RESULTED IN SUBSTANTIAL IMPROVEMENTS IN STRENGTH AND PERFORMANCE OVER ALL COMPARABLE MODELS. THIS NEW SPACER-LESS DESIGN OF THE FORGED DYNALITE SERIES OF CALIPERS, MAKES THIS THE STIFFEST AND MOST VISUAL PLEASING DESIGN SO FAR.

  • THE FORGED BILLET DYNALITE INTERNAL IS THE STRONGEST CALIPER IN THE CLASS, WITH WEIGHTS STARTING AT 3.00 POUNDS. THE PROCESS OF STRESS-FLOW FORGING RE-ALIGNS THE METALS GRAIN STRUCTURE WITHIN THE CONTOUR OF THE CALIPER BODY. THIS PROCESS ELIMINATES THE BREAKS AND INTERRUPTIONS TO THE INTERNAL GRAIN STRUCTURE THAT OCCUR WHEN MACHINING A STRAIGHT BLOCK BILLET. THE FEA GENERATED RADIAL TRANSITION DESIGN ELIMINATES STEPS AND SHOULDERS IN THE AREA BETWEEN THE PISTON HOUSING BODY AND THE CALIPER BRIDGES. INCORPORATING A RADIUS IN THIS TRANSITION AREA SUBSTANTIALLY INCREASES RESISTANCE TO DEFLECTION AND CALIPER SEPARATION UNDER LOAD. STRUCTURAL DEFLECTION AND VOLUME DISPLACEMENT TESTS HAVE PROVEN THE FORGED DYNALITE TO OUTPERFORM ALL EXISTING STYLES OF THIS POPULAR CALIPER SIZE.

  • FORGED DYNALITE INTERNAL CALIPERS ARE A DIRECT REPLACEMENT FOR ALL WILWOOD DYNALITE AND SIMILAR COMPETITIVE BRAND CALIPERS WITH 5.25" CENTERED MOUNTING LUGS. THE FDLI USES THE SAME 7112 TYPE BRAKE PAD USED IN ALL EARLIER VERSIONS OF THIS CALIPER. THE FULL RANGE OF POLYMATRIX PAD COMPOUNDS IS AVAILABLE TO MATCH BRAKE RESPONSE AND HEAT RANGE TO ANY APPLICATION.
