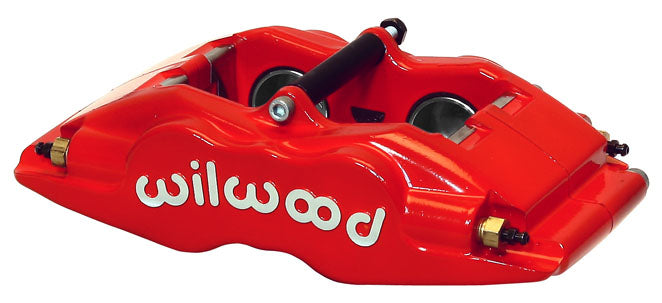

CALIPER,1.75,FORGED SUPERLITE,.810",RED

CALIPER,1.75,FORGED SUPERLITE,.810",RED

WIL 120-11134RD

$345.49
$345.49
View full details
  • WORKS WITH .810" ROTORS
  • FOUR 1.75" PISTONS
  • RED IN COLOR

  • THE SUPERLITE CALIPER SERIES IS THE BENCHMARK IN SHORT TRACK, LATE MODEL, MODIFIED AND OPEN WHEEL COMPETITION. IT ALSO ENJOYS PROMINENCE IN A VARIETY OF ROAD-RACE, OFF-ROAD, RALLY AND SPORT DRIVING APPLICATIONS. THE NEW FSLI MODEL SERIES IS THE LATEST INNOVATION TO THIS SUPERLITE FAMILY OF CALIPERS. IT HAS BEEN REDESIGNED WITH INTERNAL FLUID PORTS THAT ELIMINATE THE EXTERNAL FLUID CROSS-OVER TUBES, ALONG WITH ANY POTENTIAL PROBLEMS THAT COULD ARISE FROM A DAMAGED TUBE. THE TRANSFER TUBE HAS BEEN REPLACED WITH TWO ADDITIONAL BLEED SCREW ASSEMBLIES WHICH ALLOWS THIS GROUP OF SYMMETRICAL PISTON BORE MODELS TO BE MOUNTED EITHER RIGHT OR LEFT IN A LEADING OR TRAILING POSITION.

  • THE MOST NOTEWORTHY FEATURE OF THIS NEW CALIPER DESIGN IS THE FORGING. EACH BODY IS STRESS-FLOW FORGED FROM PREMIUM GRADE ALUMINUM ALLOY BILLETS. STRESS-FLOW FORGING RE-ALIGNS THE METALS INTERNAL GRAIN STRUCTURE TO FLOW WITHIN THE CONTOUR OF THE CALIPER BODY. THIS PROCESS ELIMINATES THE STRESSES AND INTERRUPTIONS TO THE INTERNAL GRAIN STRUCTURE THAT OCCUR WHEN MACHINING A STRAIGHT BLOCK BILLET. SIMPLY STATED, THERE IS NO BETTER WAY TO BUILD A STRONGER ALUMINUM CALIPER BODY.

  • THE FSL BODY DESIGN IS A HIGHLY EFFICIENT PRODUCT OF COMPUTER GENERATED SOLID MODELING AND STRESS ANALYSIS TECHNOLOGY. EACH CALIPER FEATURES CLOSED END BRIDGES WITH A RADIAL TRANSITION TO THE PISTON BODY HOUSINGS. THE ELIMINATION OF MACHINED STEPS AND SHARP SHOULDERS IN THIS CRITICAL AREA PROVIDES A MEASURABLE INCREASE IN OVERALL BODY STRENGTH AND RESISTANCE TO DEFLECTION UNDER LOAD. CENTER BRIDGE BOLTS REPLACE COTTER PINS TO PROVIDE ADDITIONAL SUPPORT AND ALLOW QUICK ACCESS WITH POSITIVE BRAKE PAD RETENTION. CLAMPING FORCE, STRUCTURAL DEFLECTION, AND VOLUME DISPLACEMENT TESTS HAVE PROVEN THE SUPERIOR STRENGTH AND EFFICIENCY OF THE FSL. ON-TRACK TESTING HAS PROVEN DRIVER SATISFACTION. THE BOTTOM LINE IS BETTER STOPPING POWER WITH LESS PEDAL TRAVEL.

  • THE SUPERIOR STRENGTH OF THIS INNOVATIVE NEW CALIPER IS COMBINED WITH PROVEN PERFORMANCE FEATURES FROM OTHER WILWOOD DESIGNS. EACH CALIPER IS EQUIPPED WITH WILWOODS REPLACEABLE SRS STAINLESS STEEL BRIDGE PLATES. SRS PLATES ELIMINATE THE BRIDGE WEAR CAUSED BY PAD GOUGING AND EXTEND THE SERVICE LIFE OF THE CALIPER BODY. THE SPRING-LOADING ACTION OF THE SRS PLATES ALSO ELIMINATES PAD RATTLE AND DAMPENS THE VIBRATION HARMONICS THAT CONTRIBUTE TO SQUEAL UNDER BRAKING. OTHER STANDARD WILWOOD FEATURES INCLUDE HIGH-TEMPERATURE, SQUARE FACED O-RING SEALS FOR POSITIVE SEALING, CONTROLLED PISTON RETRACTION, AND LONG SERVICE LIFE IN HIGH HEAT CONDITIONS. STAINLESS STEEL PISTONS ARE USED TO RESIST CORROSION AND RETARD HEAT TRANSFER FROM THE PADS. TWO-PIECE BLEED SCREW ASSEMBLIES PROVIDE LONG, RELIABLE SERVICE LIFE AND ARE EASILY REPLACED IF NECESSARY.

  • FSLI CALIPERS ARE A DIRECT REPLACEMENT FOR ALL WILWOOD SUPERLITE AND SIMILAR COMPETITIVE BRAND CALIPERS WITH 3.50" CENTERED MOUNTING TABS. CALIPERS ARE AVAILABLE IN THE POPULAR 1.75", 1.62", 1.38", 1.25" AND 1.12" PISTON SIZES FOR .81", 1.10" AND 1.25" ROTOR WIDTHS. FSL CALIPERS USE THE SAME 7420 TYPE BRIDGE BOLT BRAKE PAD USED IN ALL SUPERLITE 6 PISTON CALIPERS. THE FULL RANGE OF POLYMATRIX PAD COMPOUNDS IS AVAILABLE TO MATCH BRAKE RESPONSE AND HEAT RANGE TO ANY APPLICATION.
