BBC LONG ACTION WATER PUMP,SATIN

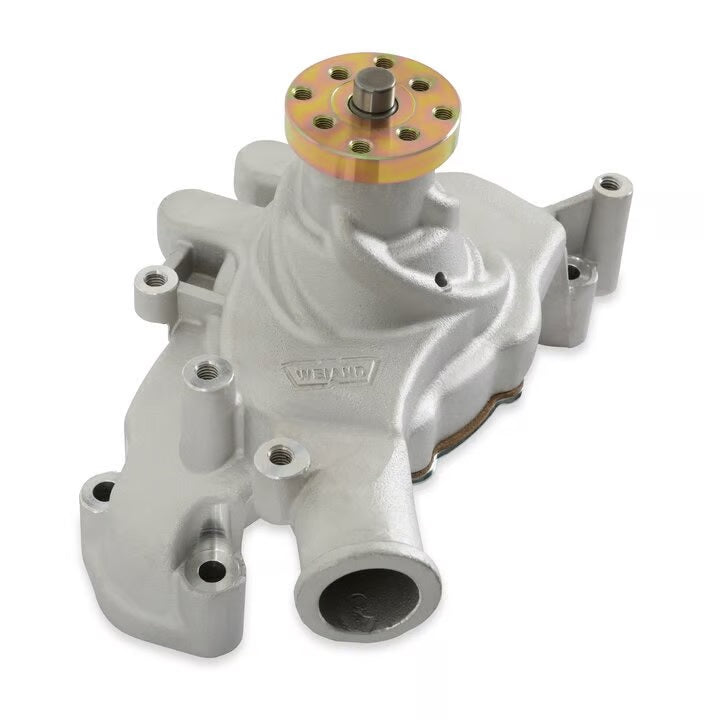

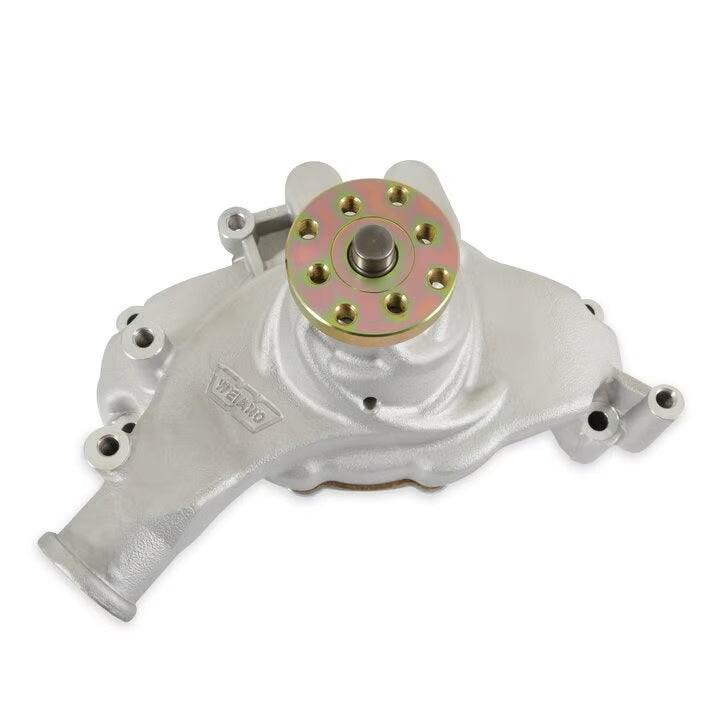

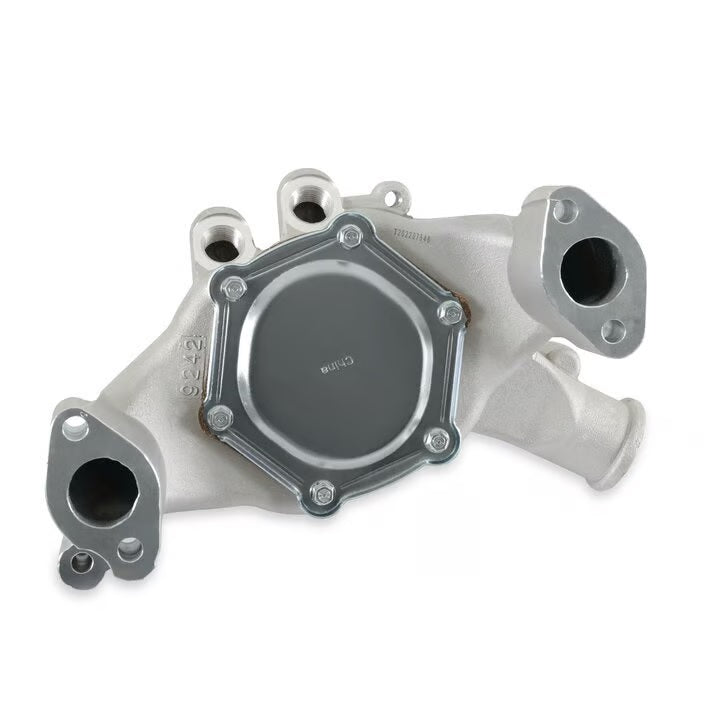

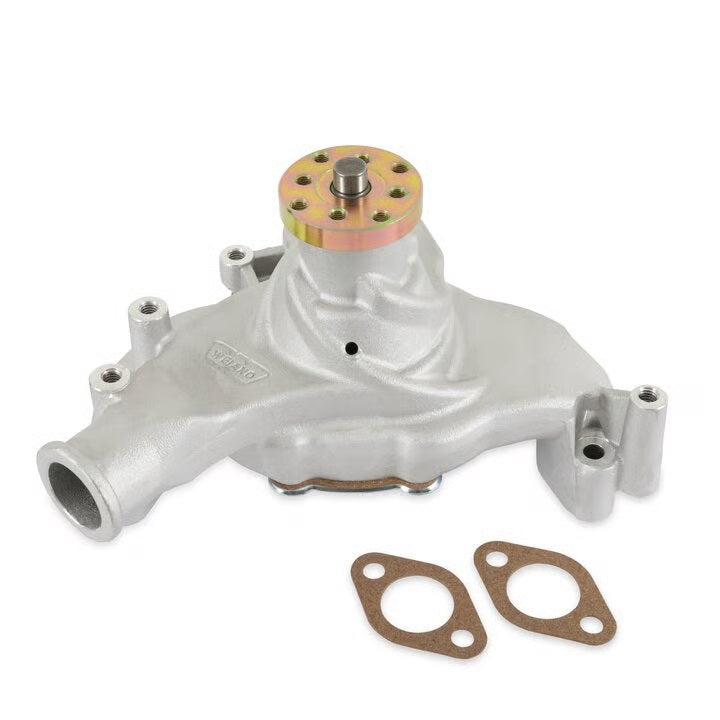

Brand New Weiand Action Plus Long Aluminum Water Pump with Twisted Snout Design for Chevrolet Big Block V8 Engines (Part #9242).

Weiand's light weight, performance aluminum mechanical Action-Plus water pumps give a weight saving of 30% to 50% over stock cast-iron pumps. These pumps have been completely redesigned for better performance and utilize our exclusive "twisted snout" look and feature a premium quality bearing and seal that have twice the load capacity of stock pumps. Weiand's exclusive housing counterbore keeps the bearing form "walking" out. All pumps are designed with the necessary bracket bosses and water connections to fit popular street applications.

Compatible with:

• Chevrolet:
  • 366, 396, 402, 427, & 454 Big Block V8 Engines


Notes:

• Fits all 1965-68 Chevrolet Big Block passenger cars, 1966-72 trucks and 1969-70 Big Block Corvettes.
• Pump has two 1/2"-14 NPT Ports

Features:

• Lightweight aluminum

• CNC Machined

• Heavy duty shaft with 5/8” pilot

• Six-blade stamped steel anti-cavitation impellers for maximum water flow necessary on street applications

• 100% leak tested

• New twisted snout design for updated style

• Permanent mold castings for improved appearance

• Extra Heavy Duty 1/2" thick pulley hubs for maximum durability are dual drilled to fit more applications

• Zinc plated back covers and hardware for long life and corrosion resistance

Specs:

• Application: Chevrolet Big Block

• Brand: Weiand

• Finish: Satin

• Part Type: Engine Water Pump

You can view and download the instruction booklet here.
