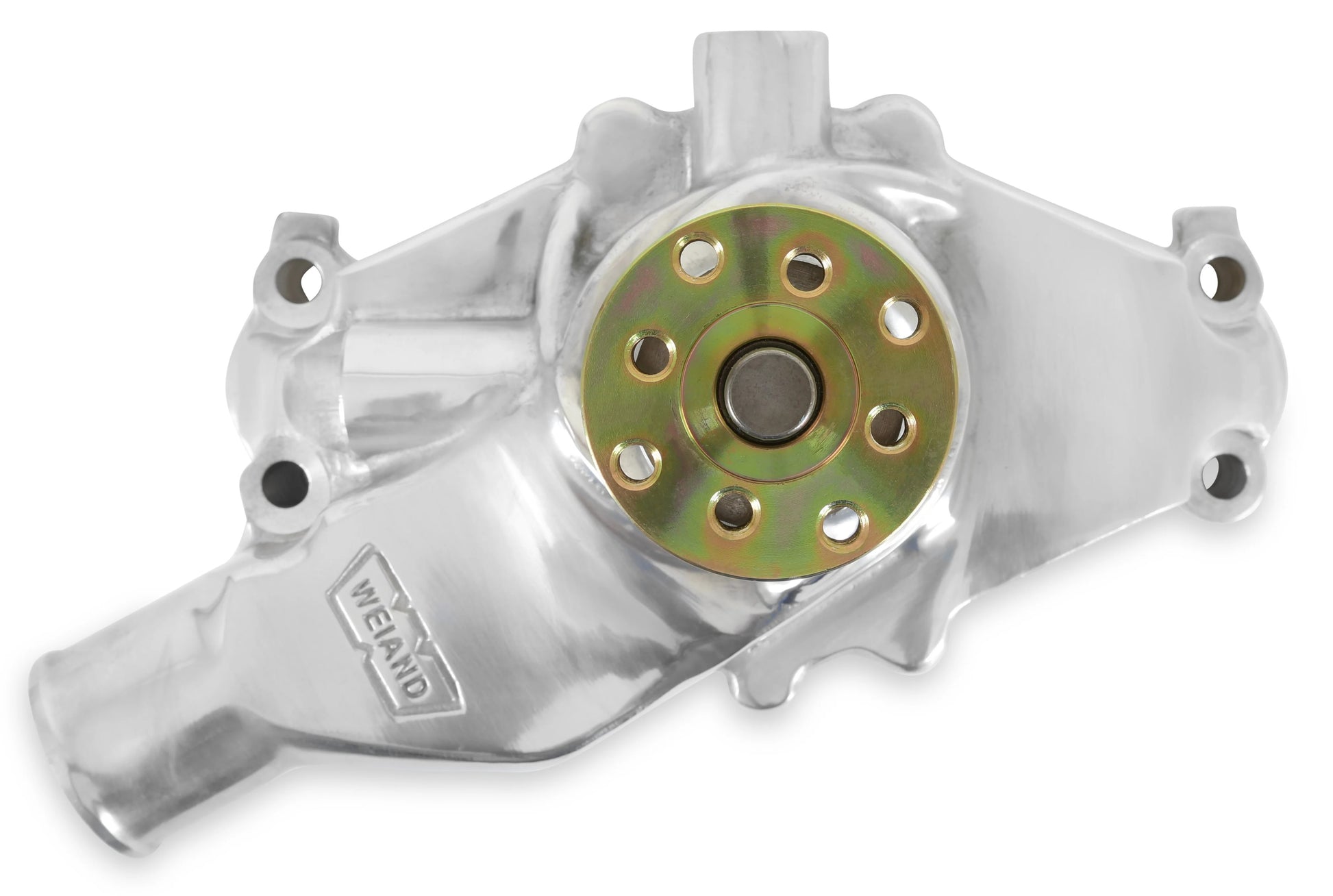

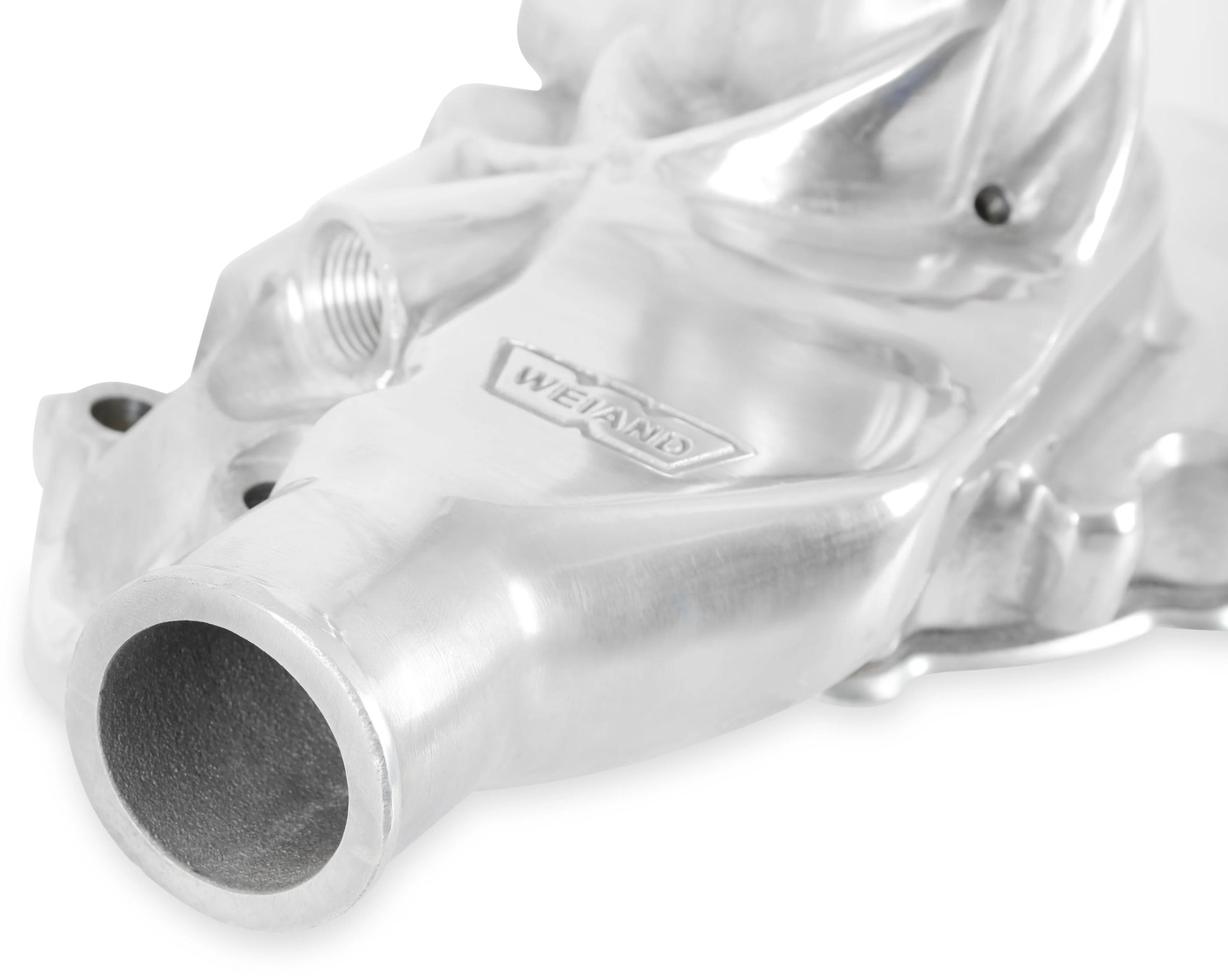

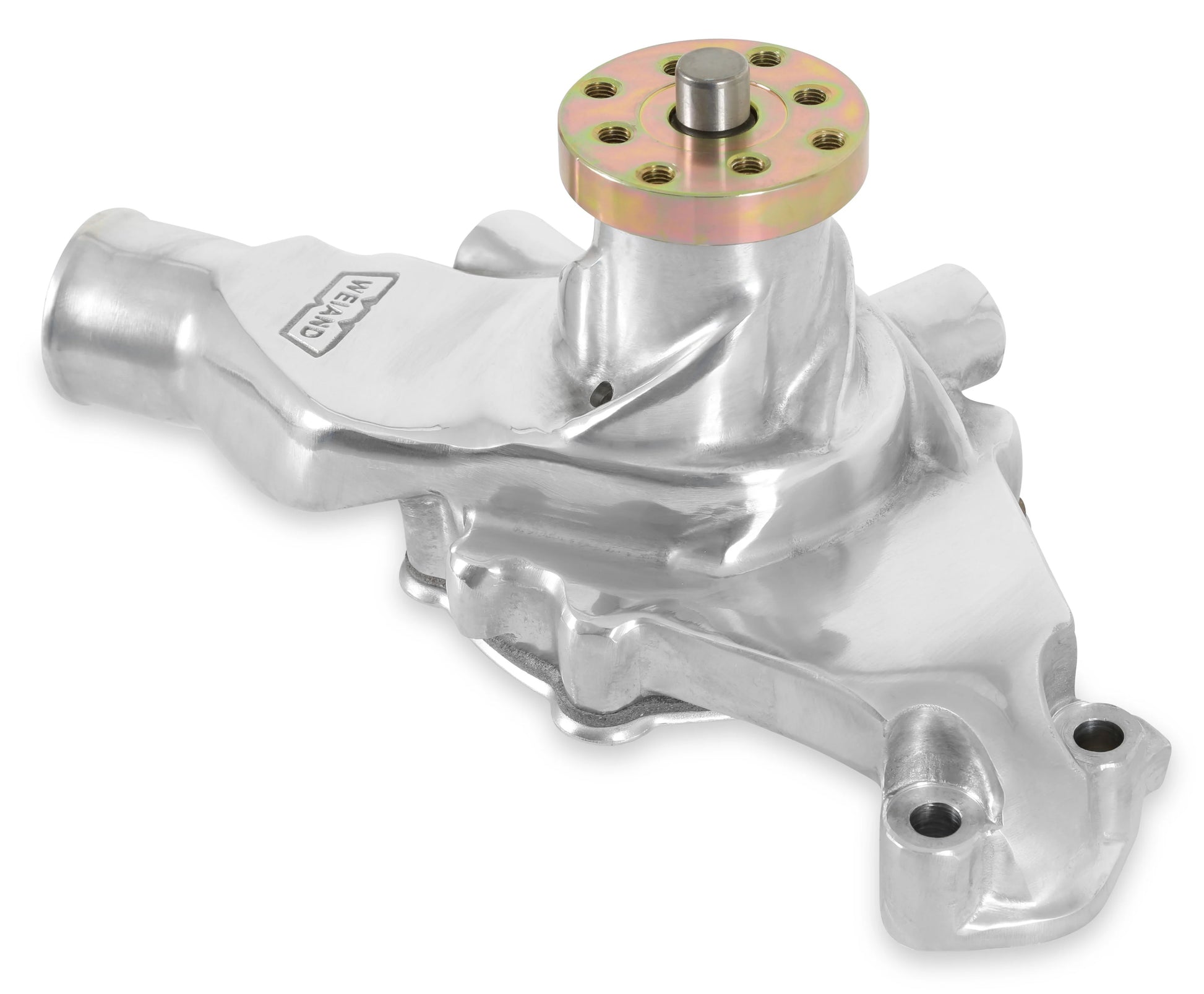

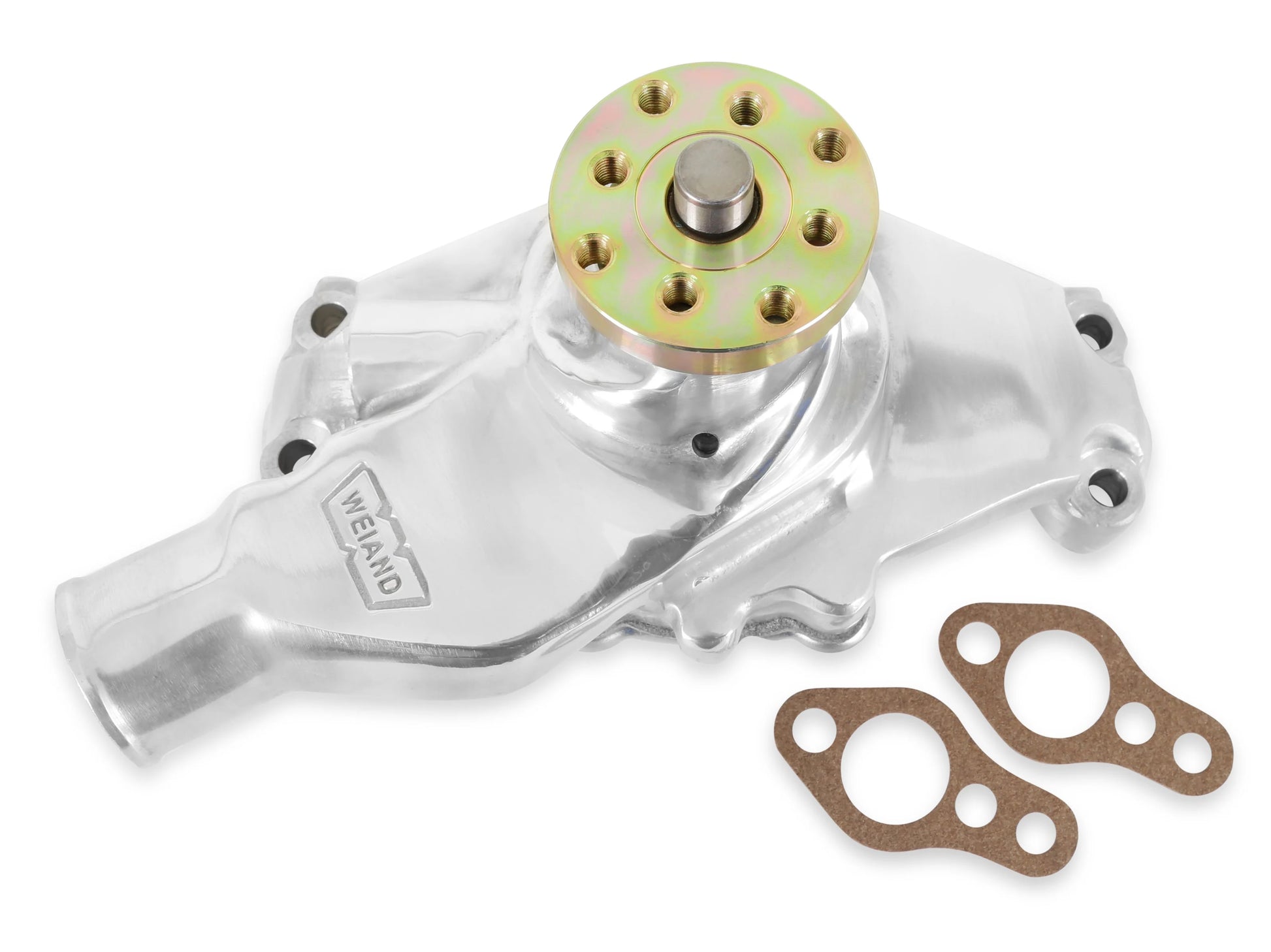

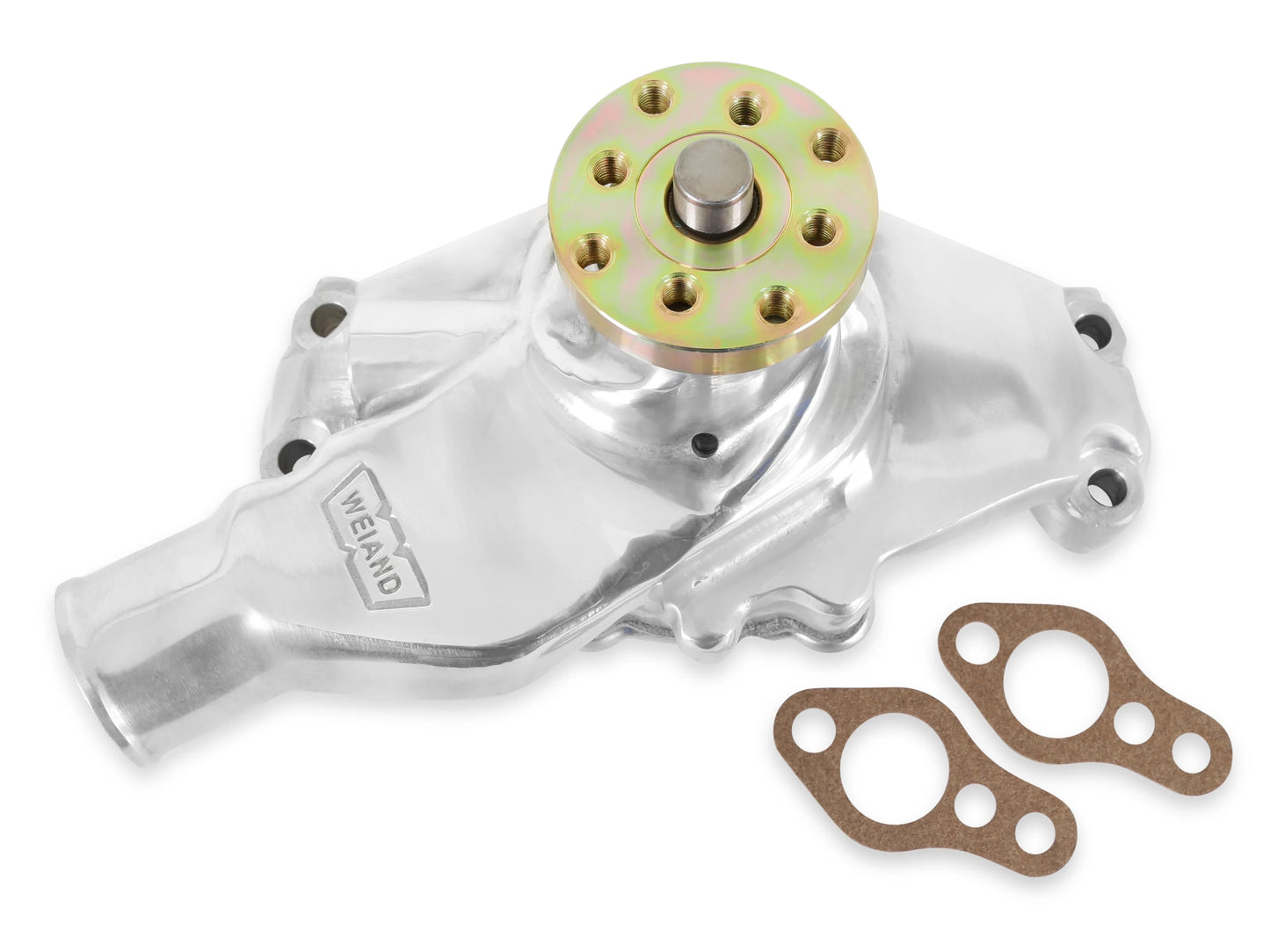

SBC SHORT ACTION + WATER PUMP,POL

Brand New Weiand Action Plus Short Polished Aluminum Water Pump with Twisted Snout Design for Chevrolet Small Block V8 Engines (Part #9208P).

Weiand's light weight, performance aluminum mechanical Action-Plus water pumps give a weight saving of 30% to 50% over stock cast-iron pumps. These pumps have been completely redesigned for better performance and utilize our exclusive "twisted snout" look and feature a premium quality bearing and seal that have twice the load capacity of stock pumps. Weiand's exclusive housing counterbore keeps the bearing form "walking" out. All pumps are designed with the necessary bracket bosses and water connections to fit popular street applications.

Compatible with:

• Chevrolet:
  • 265, 267, 283, 302, 305, 307, 327, 350, & 400 Small Block V8 Engines

Notes:

• Fits 1955-68 Chevrolet small block passenger cars, 1969-70 350 ci Corvettes and 1955-72 light duty trucks.
• Pump has two 1/2"-14 NPT Ports

Features:

• Lightweight aluminum

• CNC Machined

• Heavy duty shaft with 5/8” pilot

• Six-blade stamped steel anti-cavitation impellers for maximum water flow necessary on street applications

• 100% leak tested

• New twisted snout design for updated style

• Permanent mold castings for improved appearance

• Extra Heavy Duty 1/2" thick pulley hubs for maximum durability are dual drilled to fit more applications

• Zinc plated back covers and hardware for long life and corrosion resistance

Specs:

• Application: Chevrolet Small Block

• Brand: Weiand

• Finish: Polished

• Part Type: Engine Water Pump

You can view and download the instruction booklet here.
