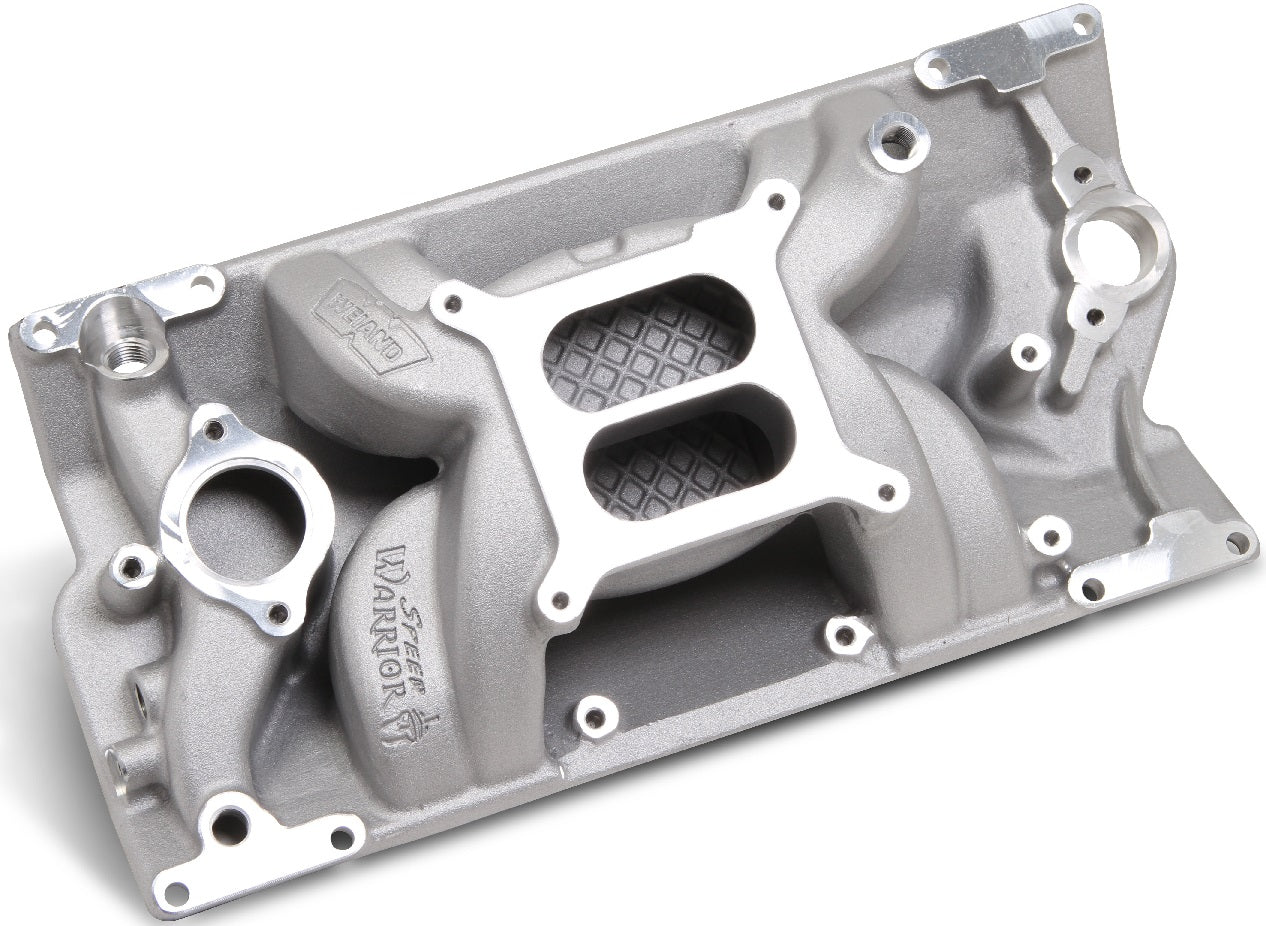

INTAKE MANIFOLD,SBC,VORTEC L31 HEADS

BRAND NEW WEIAND SPEED WARRIOR INTAKE MANIFOLD, SILVER SATIN CAST FINISH, NON/EGR 262-400CI, VORTEC L31 CYLINDER HEADS, COMPATIBLE WITH CHEVY SMALL BLOCK V8 ENGINES

NOTE: UTILIZES LATE MODEL ALTERNATOR AN A/C BRACKET MOUNTING PROVISIONS. HAS ADDITIONAL VACUUM TAP OFF OF RUNNER. RECOMMENDED FEL-PRO GASKET PART #MS90131-2 (PLASTIC BODY WITH O-RING SEALS) OR MS98000T (PERMA-DRY, HIGH RECOMMENDED)

FEATURES:

• PRECISION CNC MACHINING
• HIGH RISE/DUAL PLANE DESIGN
• ISOLATED RUNNERS REDUCE INTAKE CHARGE HEATING & PROMOTE AIRFLOW BETWEEN HOT ENGINE & INTAKE PLENUM
• SQUARE BORE CARBURETOR FLANGE
• POWER BAND: 1500-6700 RPM
• PERMANENT MOLD CASTING

SPECS:

• BRAND: WEIAND
• CONSTRUCTION: CAST
• ENGINE: CHEVROLET SMALL BLOCK GEN I
• FINISH: SATIN
• HEIGHT: FRONT 4.19", REAR 5.27"
• PORT SIZE: 2.05" HEIGHT, 1.02" WIDTH
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: HIGH RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 5.27 INCH
• RPM POWER BAND: 1500-6700

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
